Acieta Fast Arc Cobot

Acieta Fast Arc Cobot

orCall +1 314-283-1861

Description

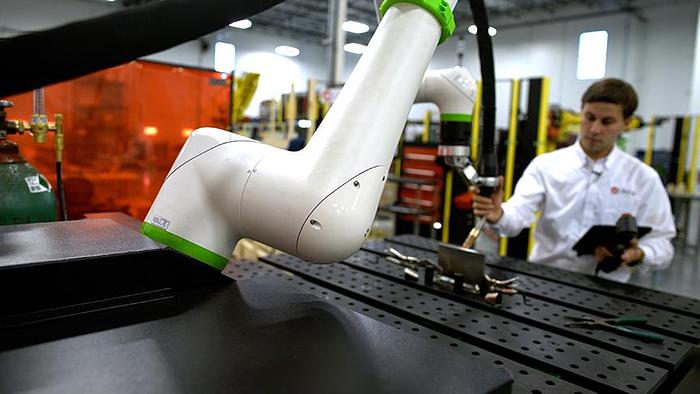

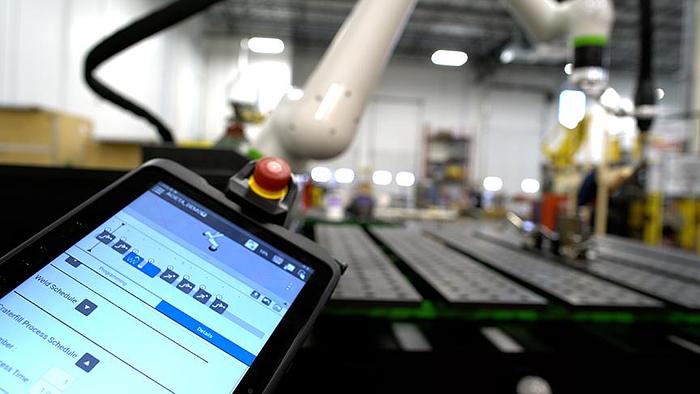

Skilled welders are a hot commodity, and production lines sit idle while companies struggle to fill jobs. Reduce your labor problems and get the most from your existing welding talent by moving the repetitive, mundane and simple welding tasks to a FastARC CW collaborative robot from Acieta. Control costs The industry is battling skyrocketing operational costs, but the FastARC CW is a cost-effective solution with a short payback timeframe. Typical FastARC cobot users see ROI in as little as 6 months (based on 2 shifts) because they are making more product at a much lower cost per part. As a pre-engineered standard product, the FastARC CW is less expensive than a custom welding robot. Plus, it’s in stock and ready for quick delivery. Financing options are available to keep initial capital expenses low. The FastARC CW includes a FANUC CRX-10iA/L 6-axis robot mounted on a mobile platform to move quickly between production areas. The system is compatible with Fronius, Lincoln Electric and Miller welding units. As a standard cobot, the FastARC CW is delivered within weeks so users can ramp-up fast and immediately increase capacity. Intuitive software and a touchscreen interface make the FastARC CW simple to set up and operate so it can be managed by a less skilled worker. One person can operate several FastARC cobots simultaneously for optimal uptime. No safety fencing is needed, which saves on costs and floor space. The FastARC CW welds accurately, consistently and reliably all day, every day. With a FastARC on the shop floor, experienced welders have higher job satisfaction doing more stimulating work that utilizes their skills, so employers are more likely to retain their talented workers. The FastARC CW is IP 67 rated with sealed components to work in dirty environments. Maximize your output and increase production with the FastARC CW by Acieta. Our collaborative weld cells are a cost-effective introduction to automation, designed to solve labor and capacity challenges, fast.

Specifications

ManufacturerAcieta
ConditionNew
CW Base Length1838.7 mm (72.3 in)
CW Base Width1233.4 mm (48.56 in)
CW Base Height w/ Robot in Zero Position2083.47 mm (82.02 in)
CW Base Weight923 kg (2035 lbs)
Weld Table Dimensions1176 x 1168.4(46.29 in x 46 in)
Weld Table Max Part Weight340.2 kg (750 lb)
Max Part Height at Robot Full Reachup to 700 mm (27.55 in)
Max Part Height at Table Centerup to 984.3 (38.75 in)
Robot ModelFANUC CRX-10iA/L Collaborative 6 axis robot
Weld Power Source IncludedFronius, Lincoln® Electric or Miller® Brand Welder
