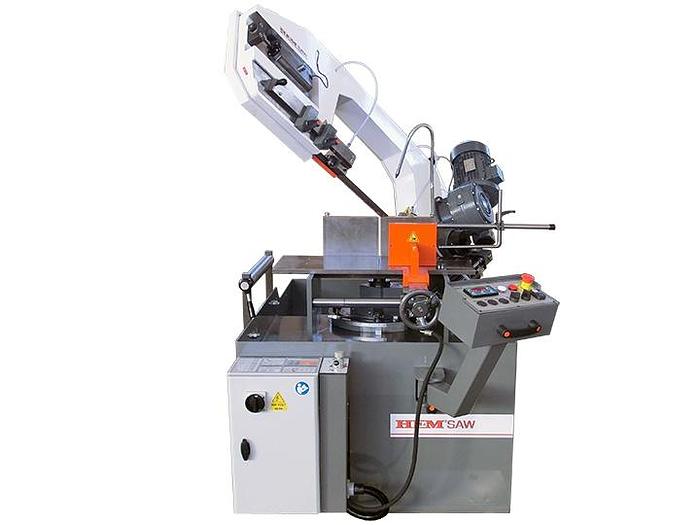

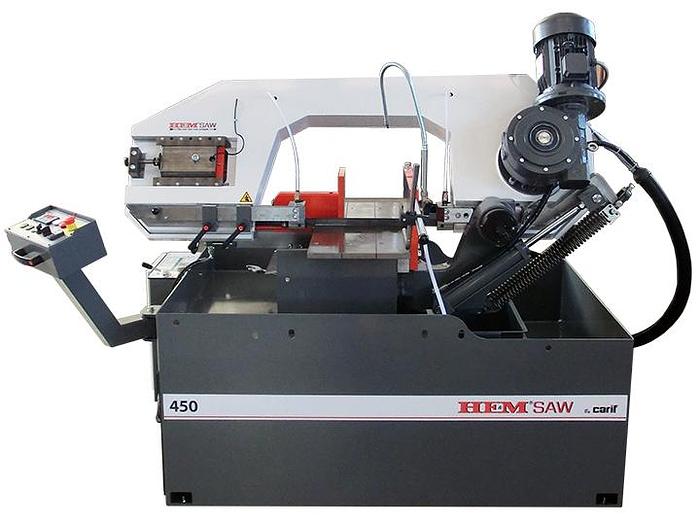

HE&M Saw 450 BSA

HE&M Saw 450 BSA

orCall +1 314-283-1861

Description

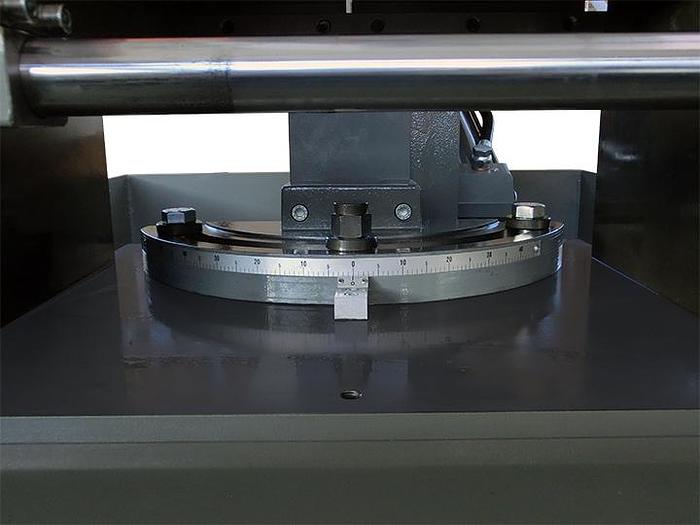

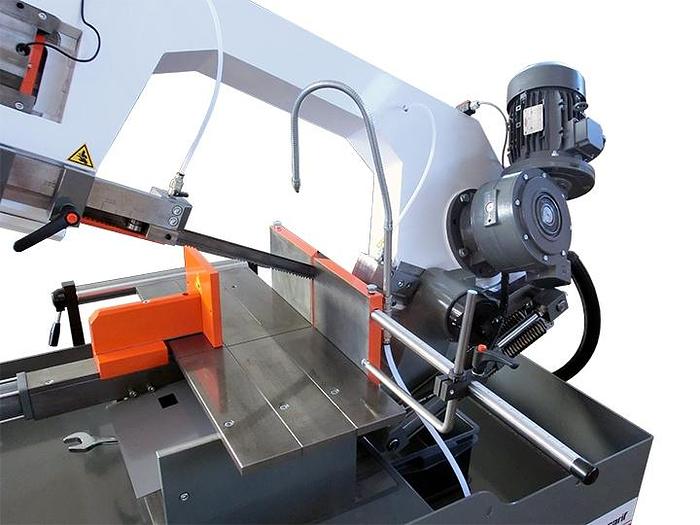

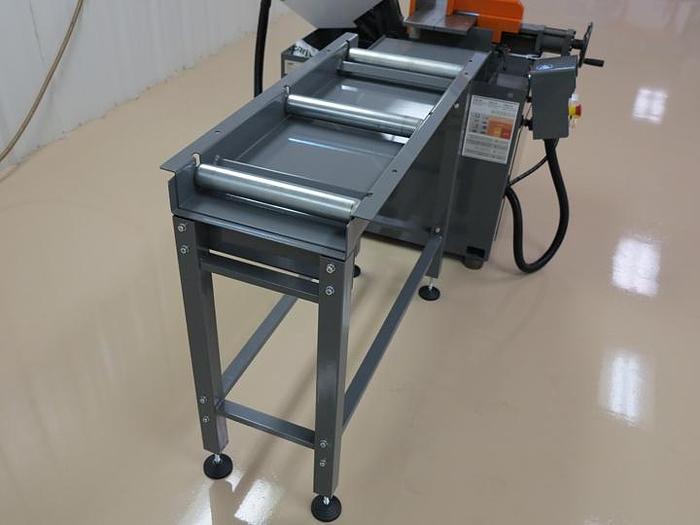

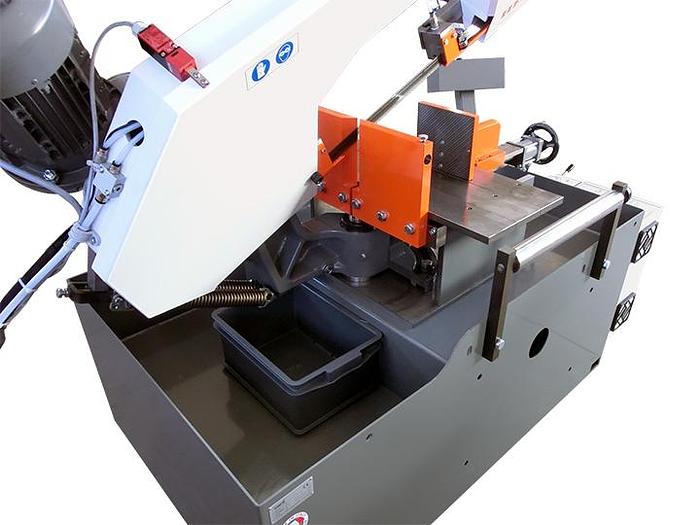

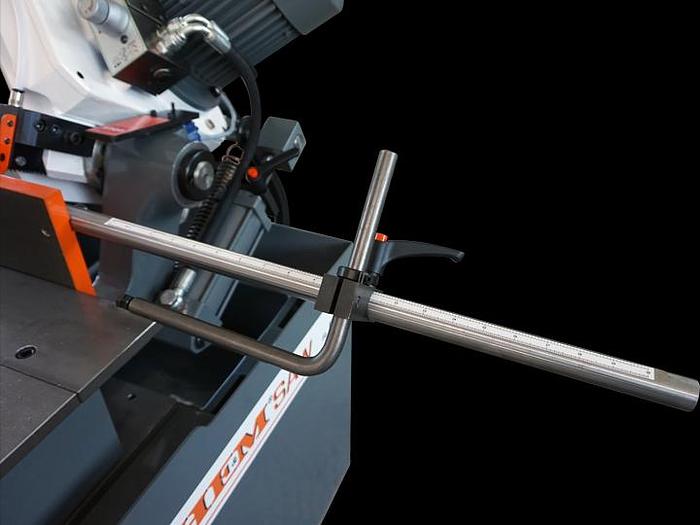

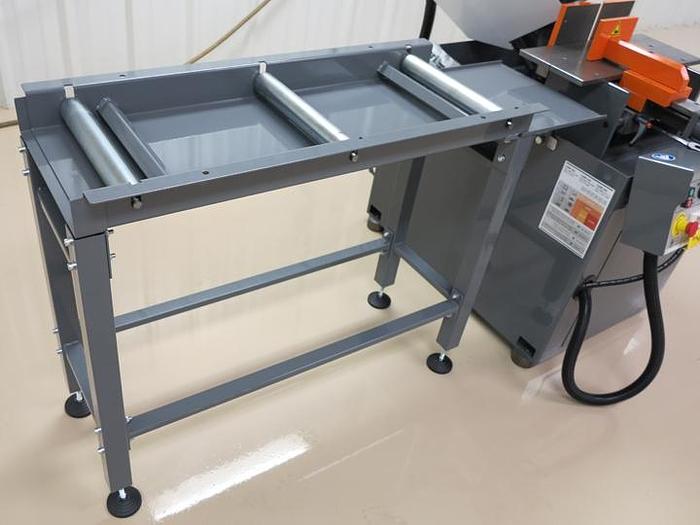

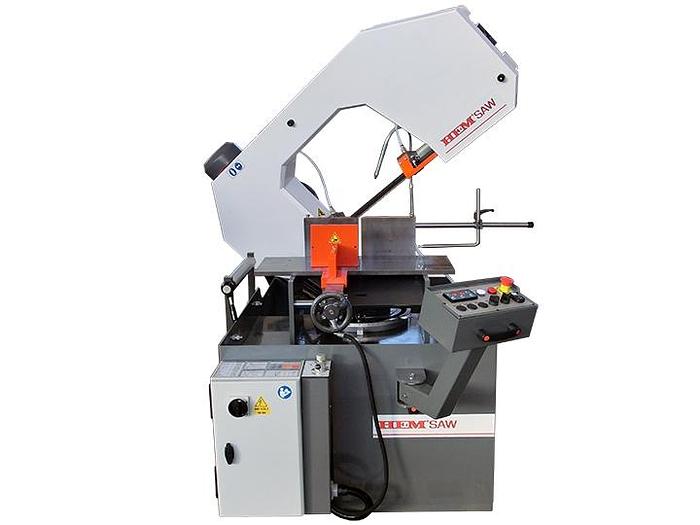

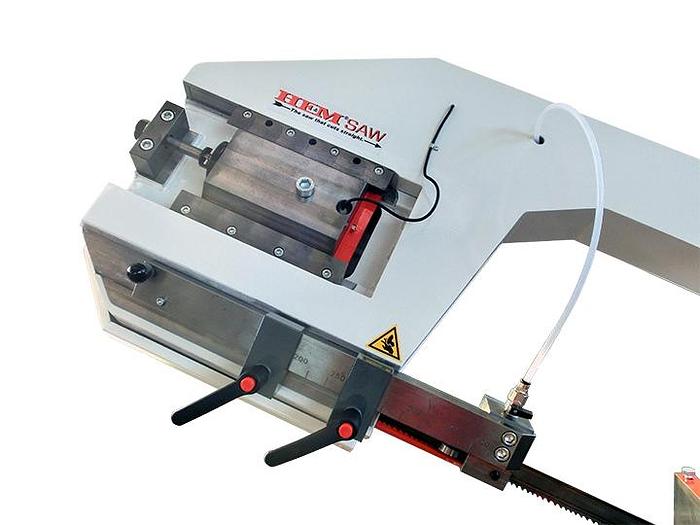

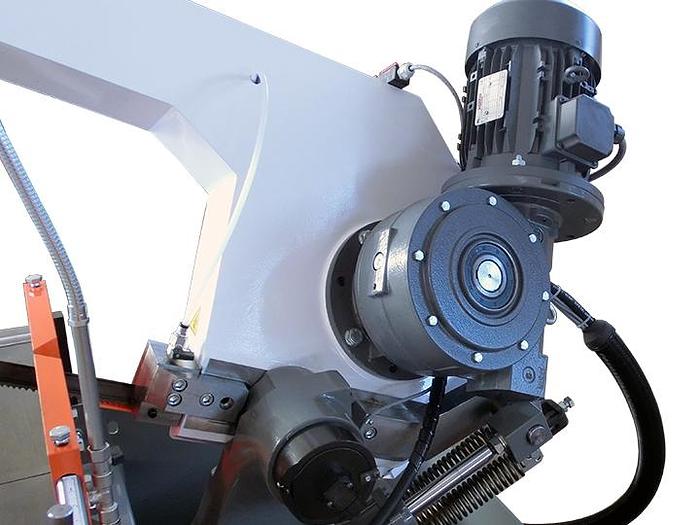

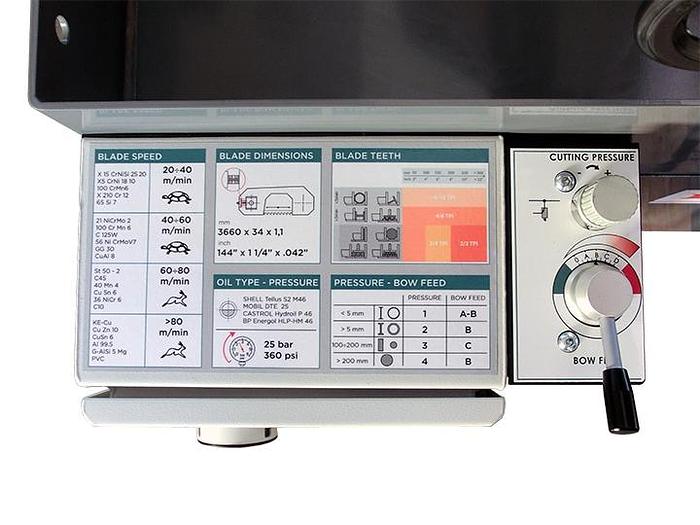

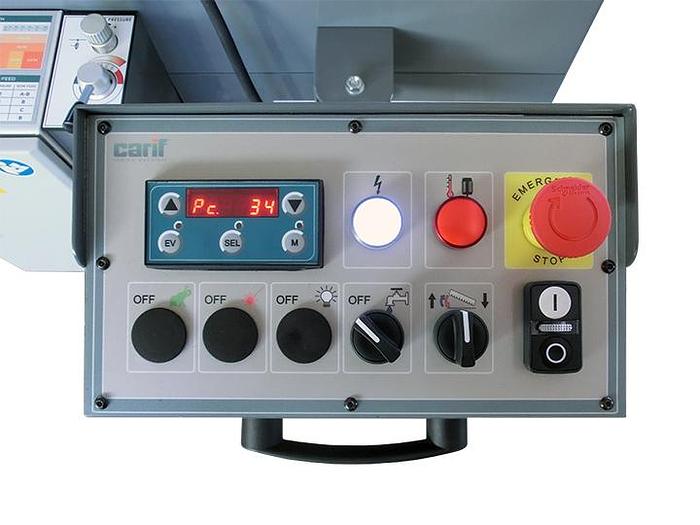

The 450 BSA is a double-mitering band saw cutting 45ᵒin both directions, up to 60ᵒ left miter. Adjustable blade speed is set from swing-away control console and arm height is set by pressing a button on the control. An adjustable part stop is included. Dual 45° Miter One-Way 60° Miter Patented Hydraulic System Variable Speed Motor Adjustable Feed Rate & Cutting Pressure Vise - Hydraulic Adjustable Rugged 3/16" Steel Base Miter Scale Blade Speed & Height Set from Control Panel Part Counter on Control Panel Heavy-Duty Sealed Pivot Bearing Point Full Capacity Cutting Surface Guide Arm - Manual Adjustment Hard-Stop Measuring Device Emergency Stop Coolant System - Flood Large Chip Container Roller Table Extension Inbound or Outbound Roller Tables

Specifications

ManufacturerHE&M
ConditionNew
Main Capacity0-18" W x 0-10" H
Bar-feedN/A
Blade12' 0" L x 1.25" H x .042"
Motor5.5 HP
Hydraulic MotorN/A
OperationSemi-Automatic
Rectangular Capacity0-18" W x 0-10" H
Square Capacity0-10" (Square)
Round Capacity0-13" (Diameter)
Operation TypeSemi-Automatic
Power SourceElectric
Weight2450
Blade TypeBandsaw
Blade Size12' 0" L x 1.25" H x .042"
Bandsaw Blade SpeedN/A
Bundle Cut?No
Horizontal Pivot Band Saws450 BSA
