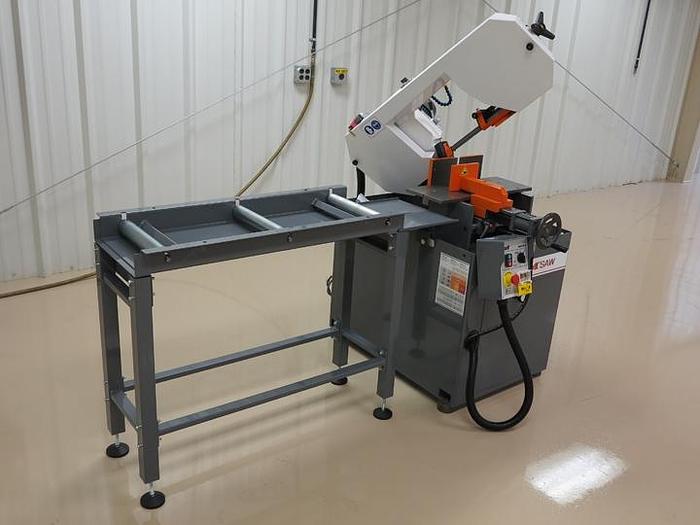

HE&M Saw 260 BSA

HE&M Saw 260 BSA
Description

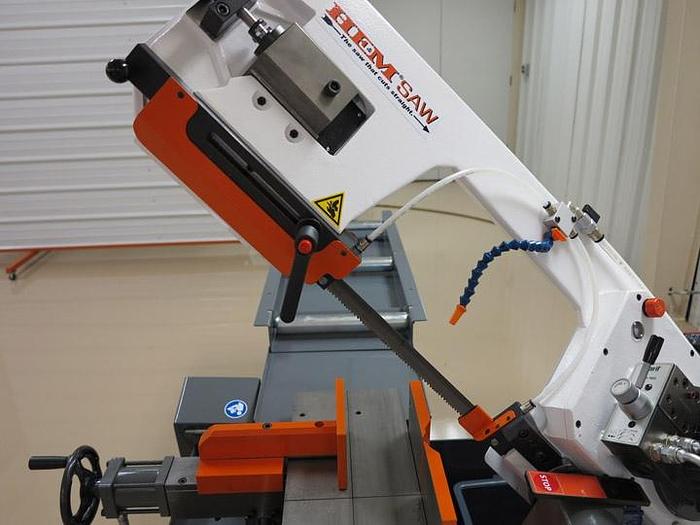

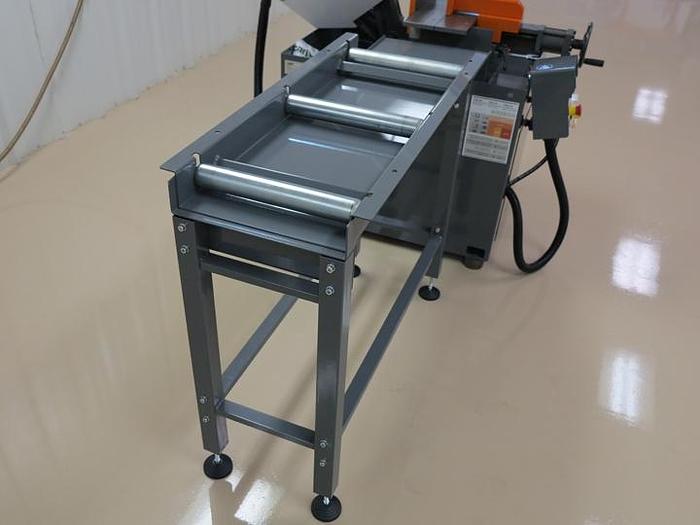

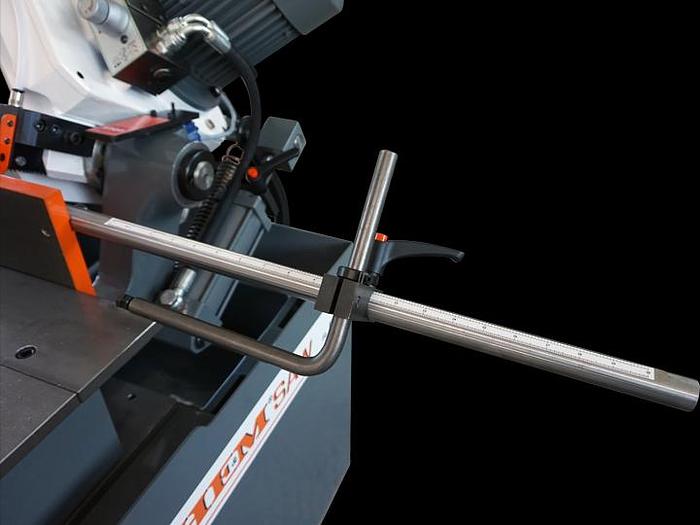

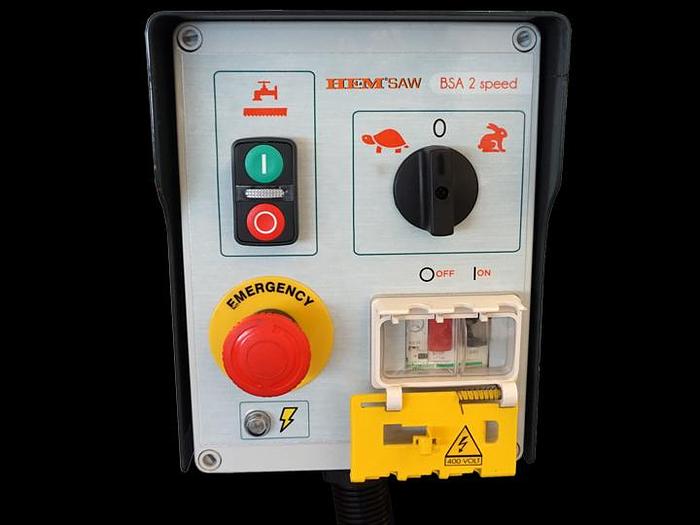

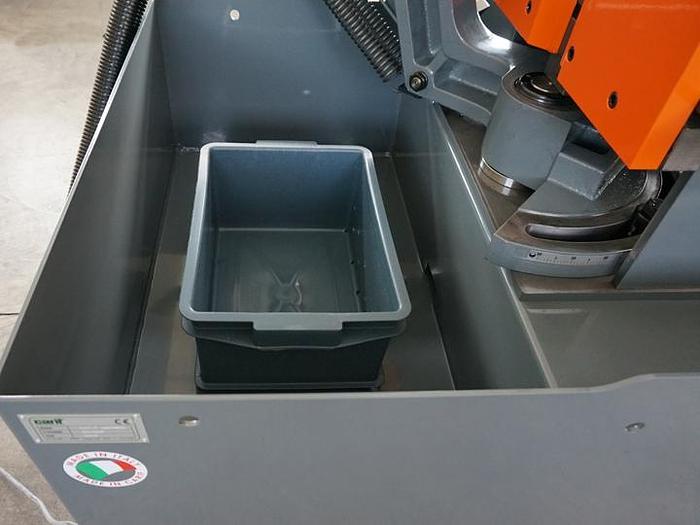

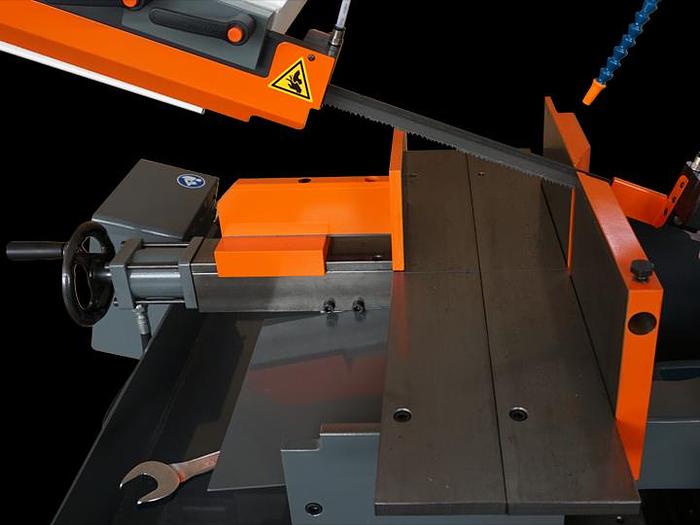

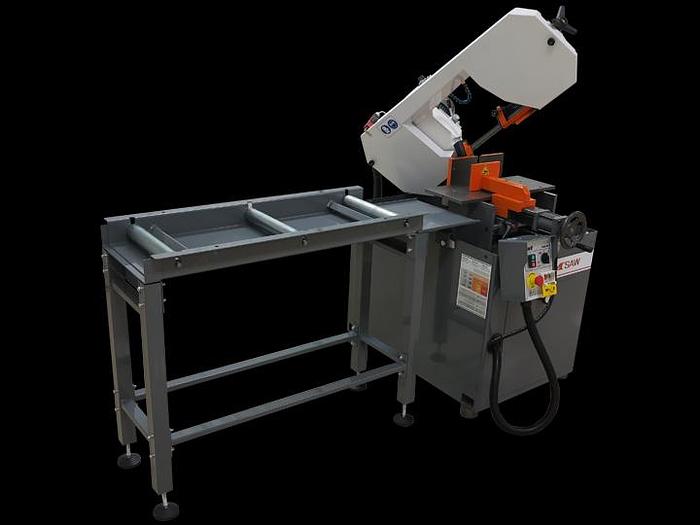

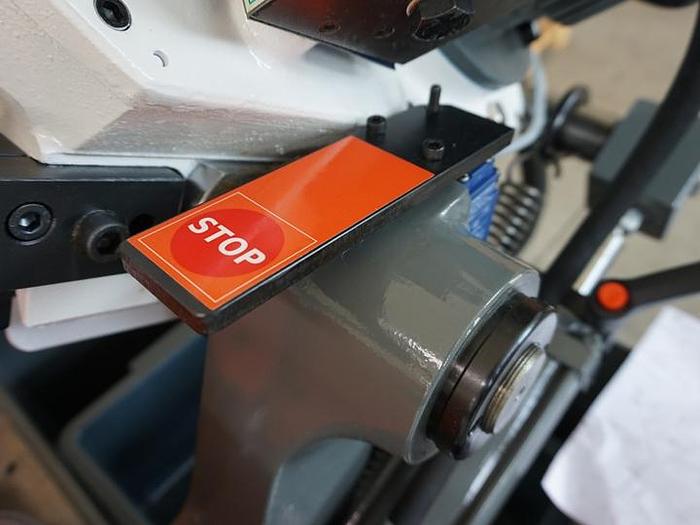

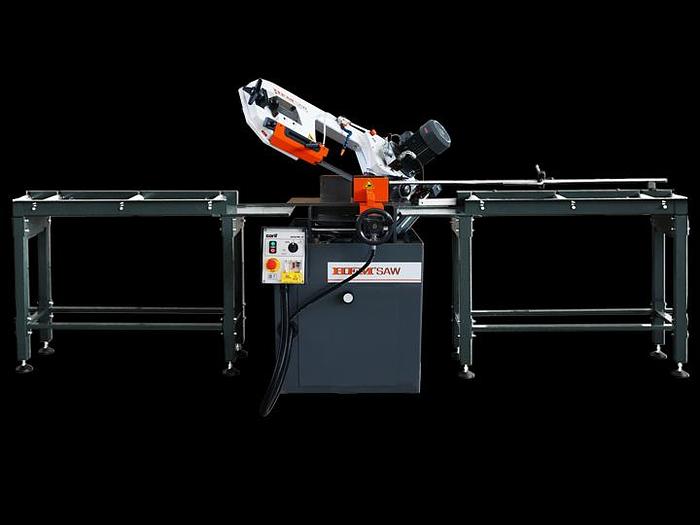

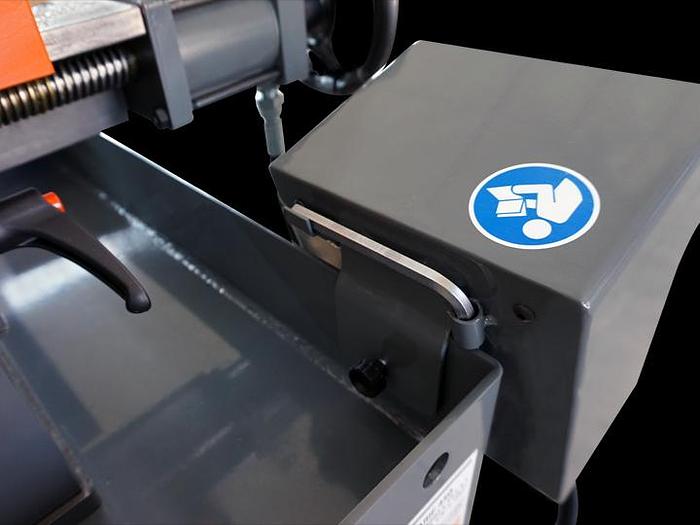

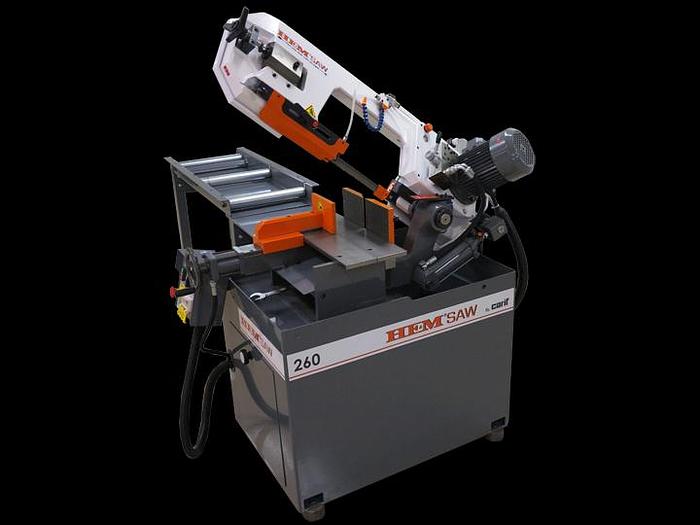

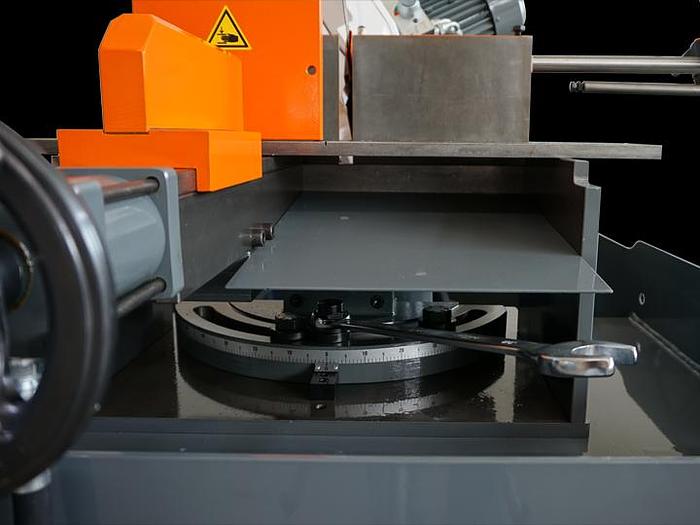

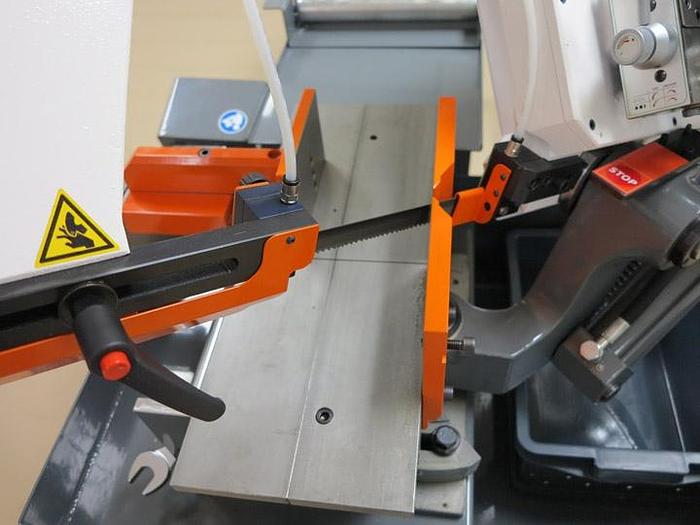

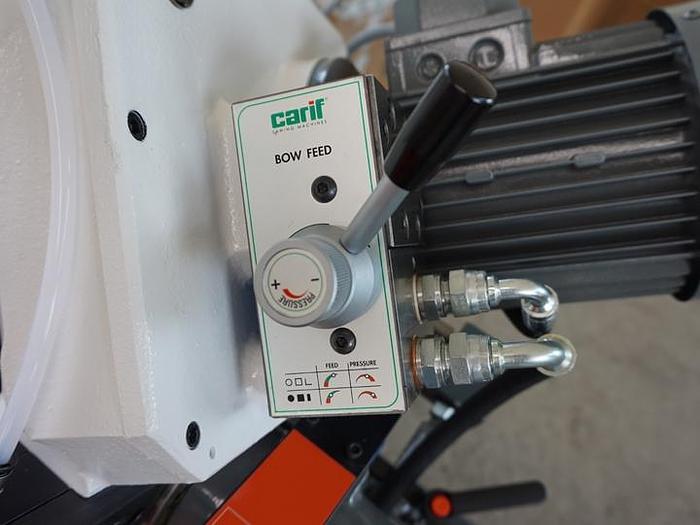

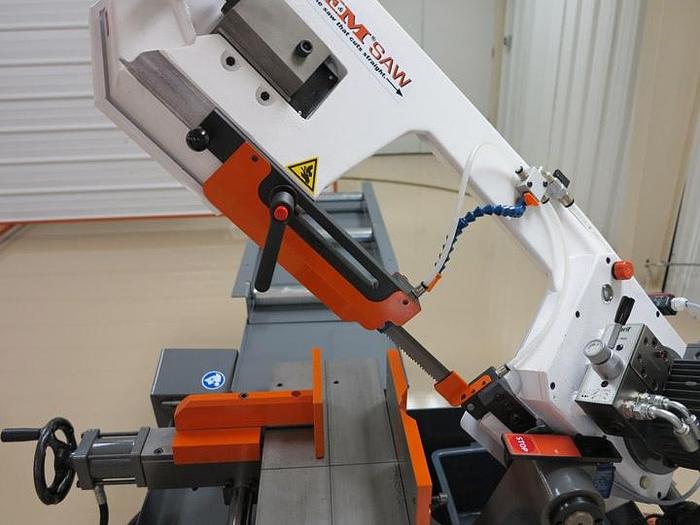

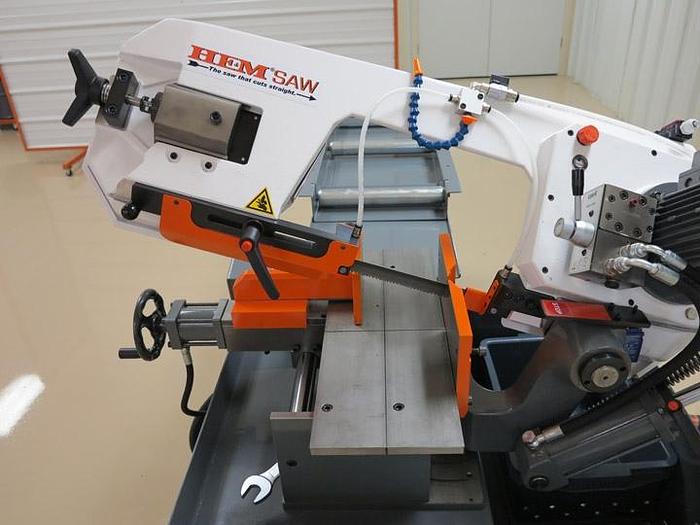

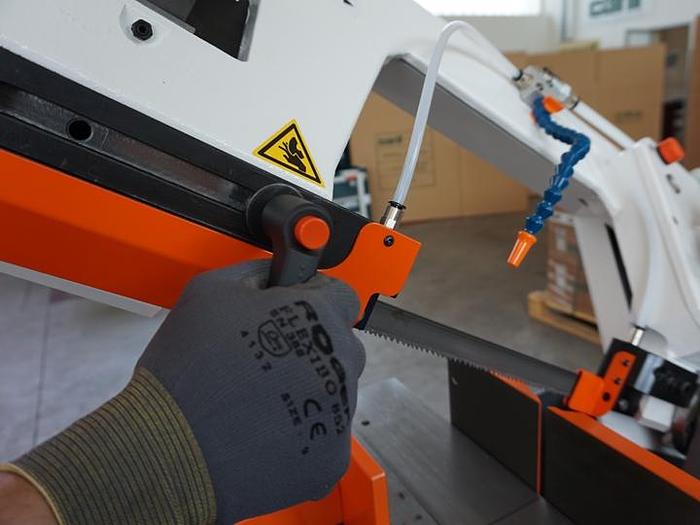

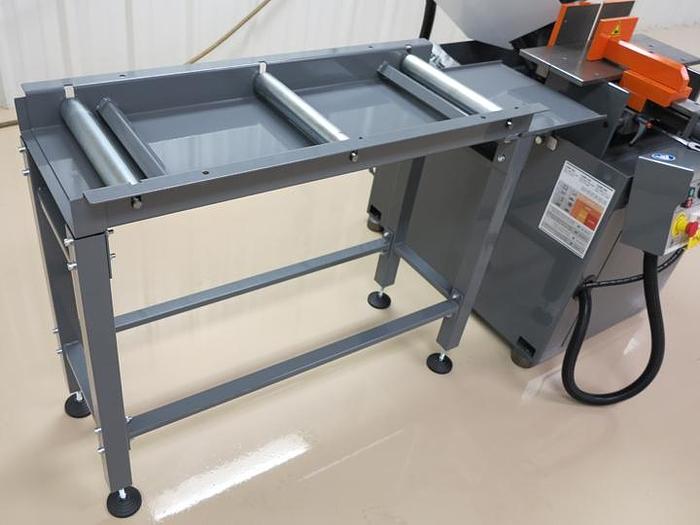

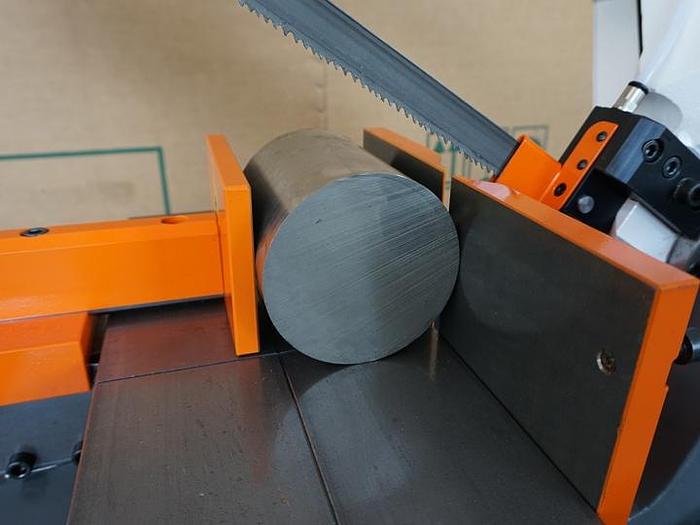

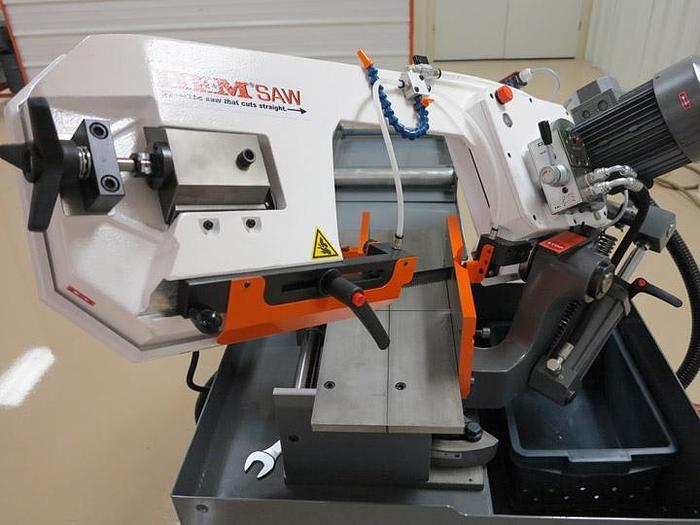

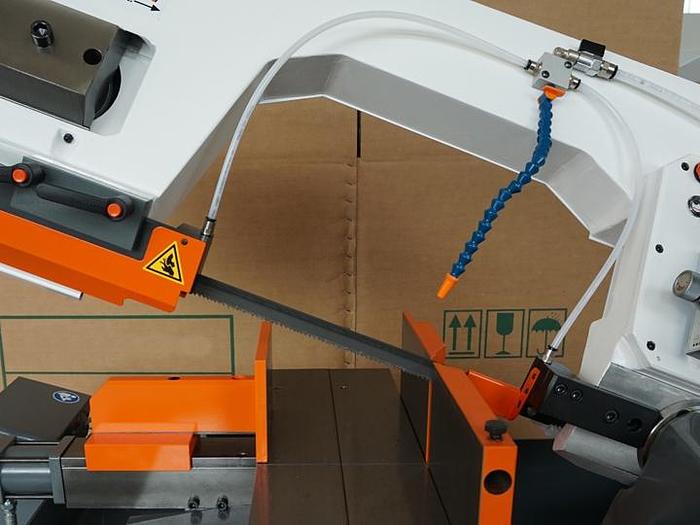

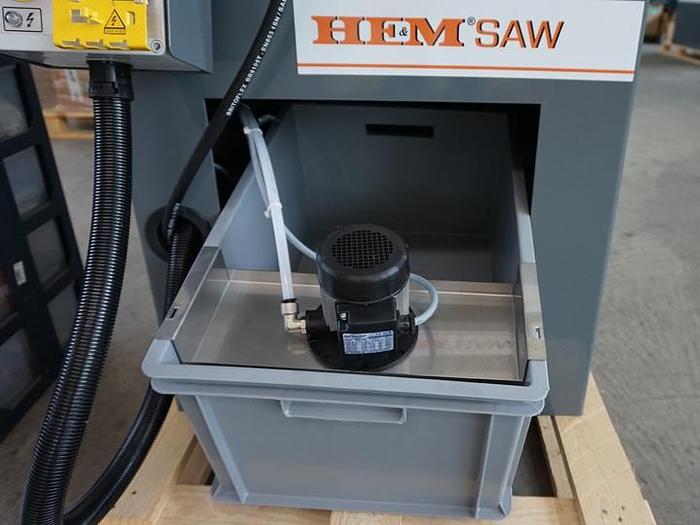

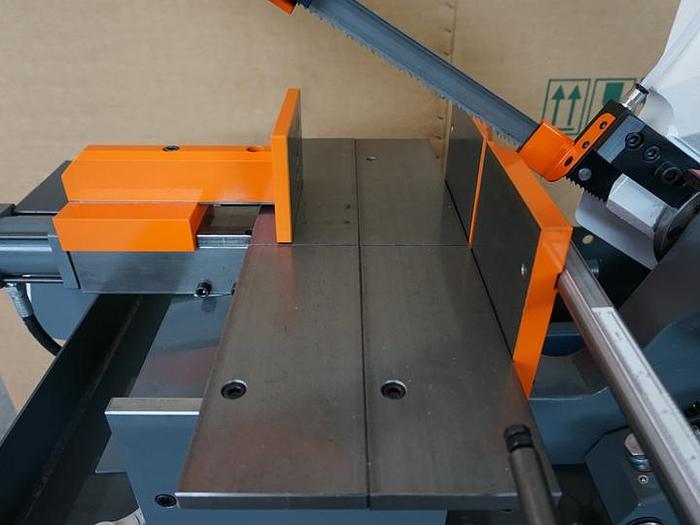

The 260 is a double-mitering band saw cutting 45ᵒin both directions, up to 60ᵒ left miter, includes an adjustable hard-stop to cut multiple same-length parts, and has a built-in flood coolant system. The control is connected with a 40” umbilical cord with two blade speeds. Dual 45° Miter One-Way 60° Miter Control Console - Moveable w/ 40" Umbilical Patented Hydraulic System Adjustable Feed Rate & Cutting Pressure Vise - Hydraulic Adjustable Rugged 3/16" Steel Base Miter Scale Heavy-Duty Sealed Pivot Bearing Point Full Capacity Cutting Surface Guide Arm - Manual Adjustment Hard-Stop Measuring Device Emergency Stop Large Chip Container Coolant System - Flood 2-Speed Blade Speed 220V/3PH Electrical Motor Requirement - 6.8 Amps Inbound or Outbound Roller Tables Roller Table Extension
Specifications
| Manufacturer | HE&M |
| Condition | New |
| Main Capacity | 0-10.2" W x 0-5.9" H |
| Bar-feed | N/A |
| Blade | 8' 0" L x 1" H x .035" |
| Motor | 1.8 HP |
| Hydraulic Motor | N/A |
| Operation | Semi-Automatic |
| Rectangular Capacity | 0-10.2" W x 0-5.9" H |
| Square Capacity | 0-5.9" (Square) |
| Round Capacity | 0-8.7" (Diameter) |
| Operation Type | Semi-Automatic |
| Power Source | Electric |
| Weight | 750 |
| Blade Type | Bandsaw |
| Blade Size | 8' 0" L x 1" H x .035" |
| Bandsaw Blade Speed | N/A |
| Bundle Cut? | No |
| Horizontal Pivot Band Saws | 260 BSA |
