HE&M Saw V360M
HE&M Saw V360M
Description

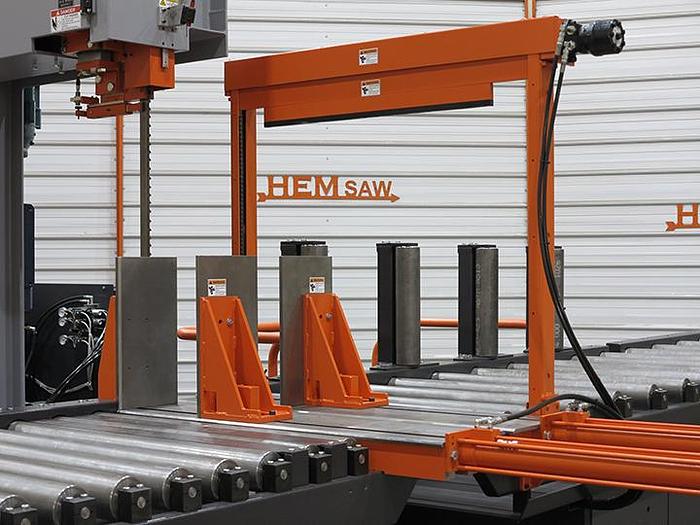

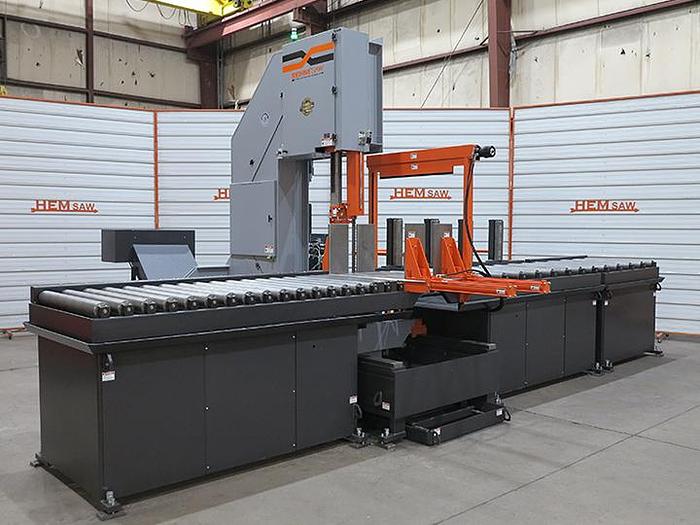

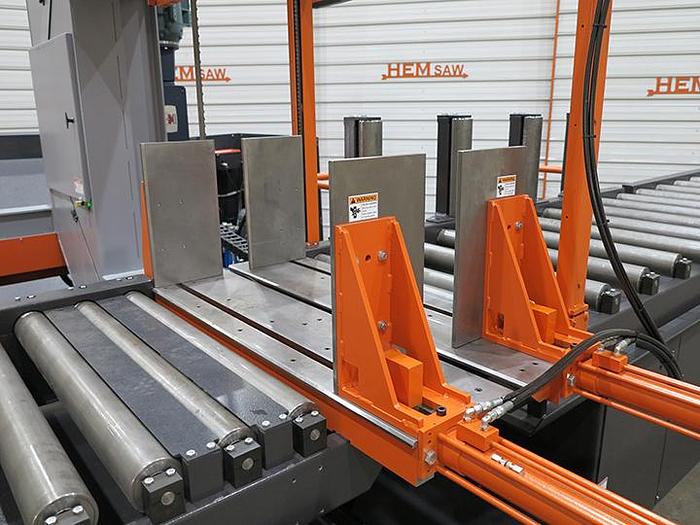

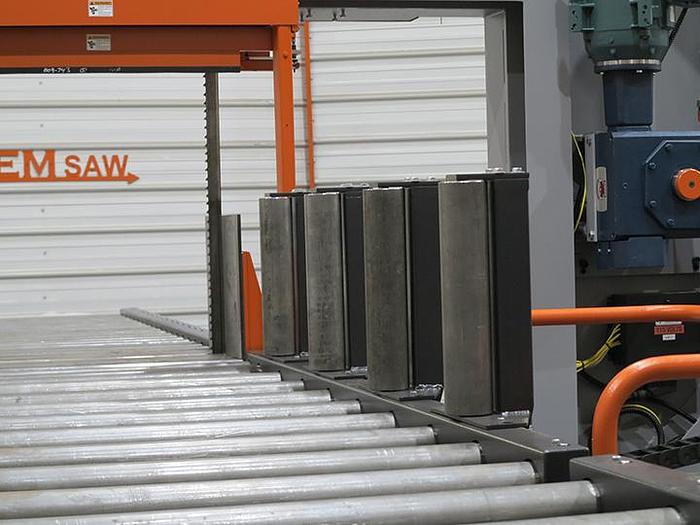

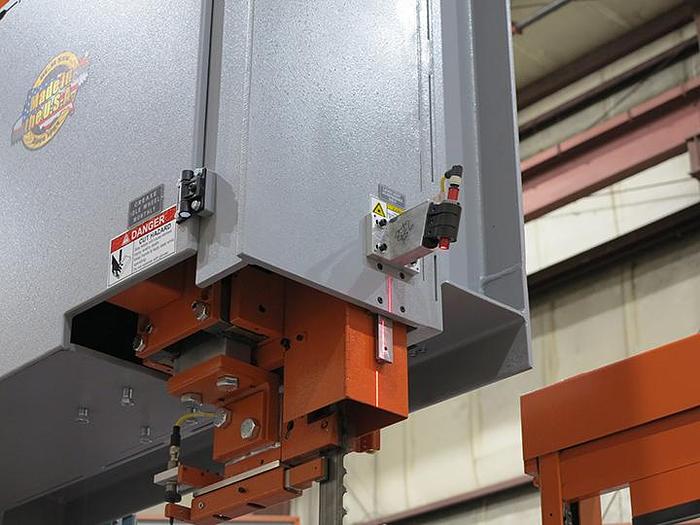

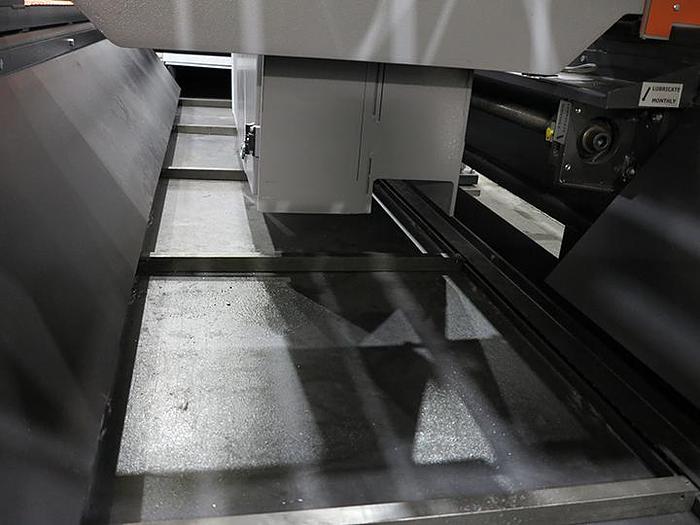

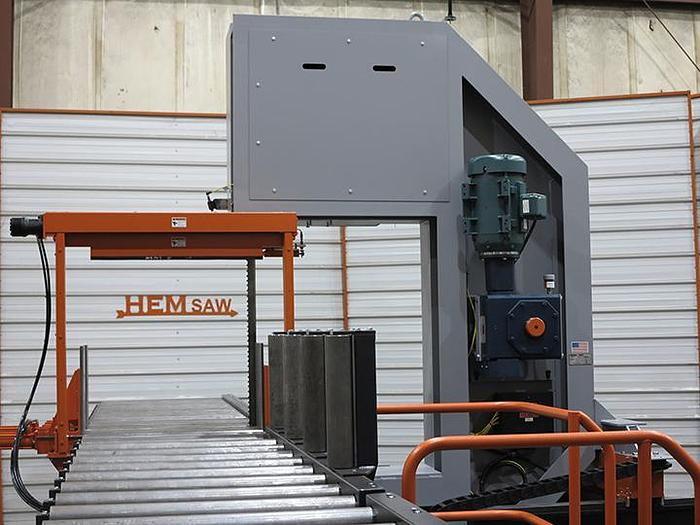

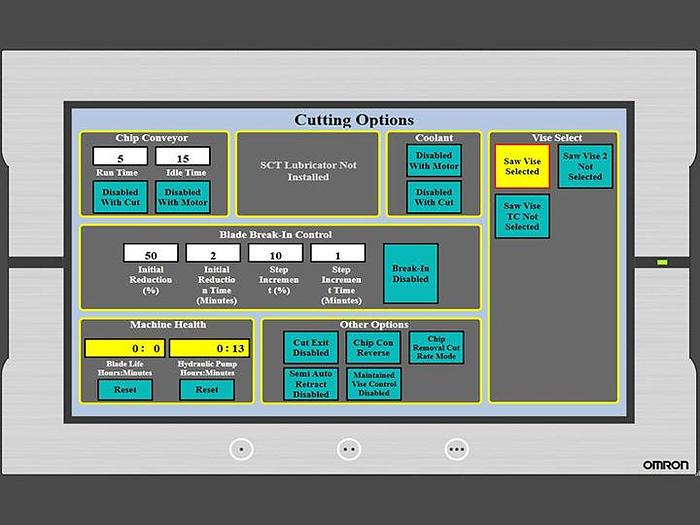

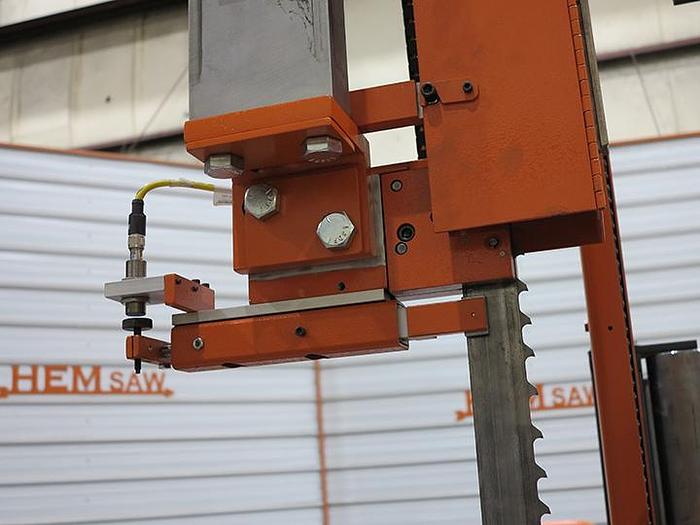

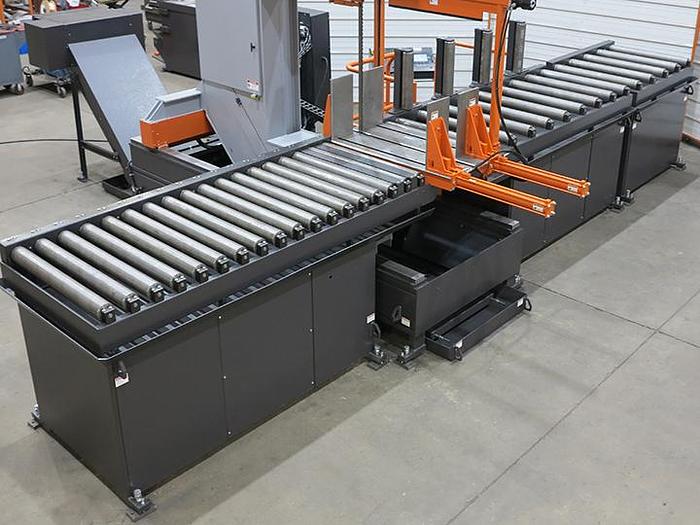

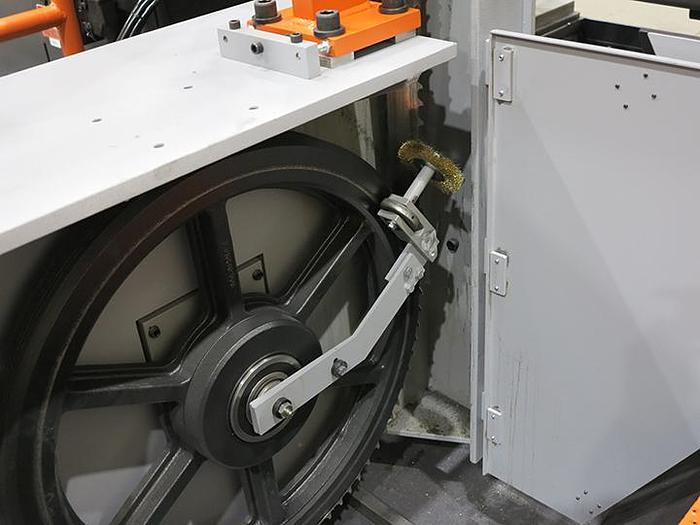

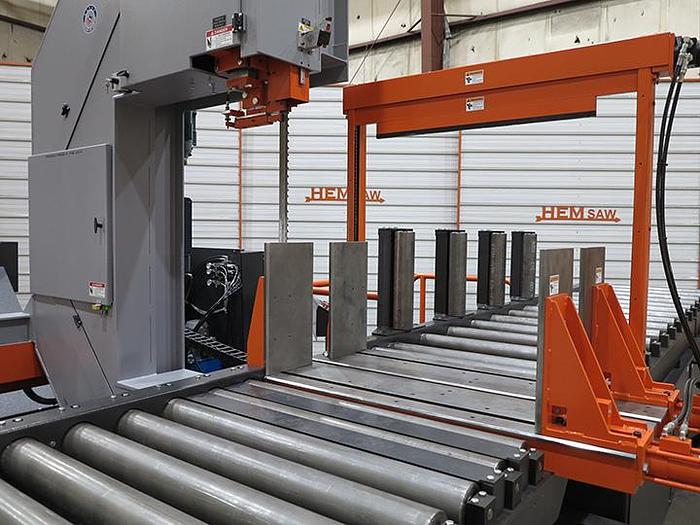

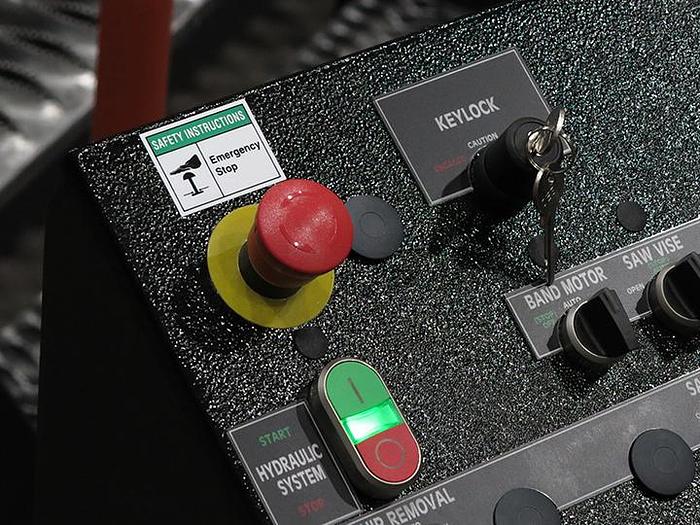

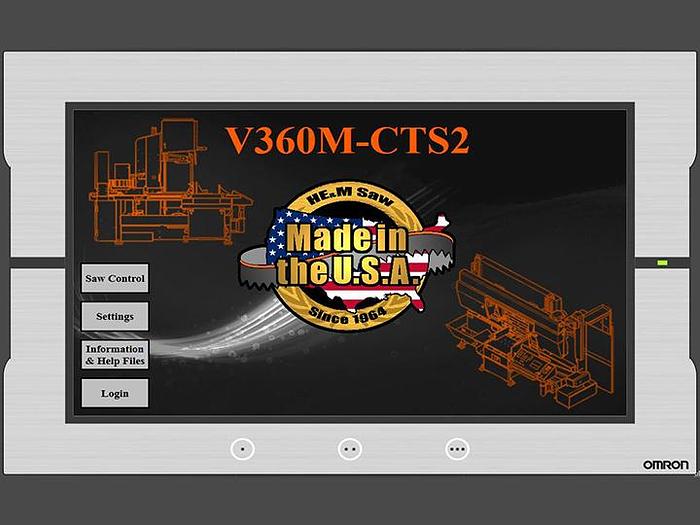

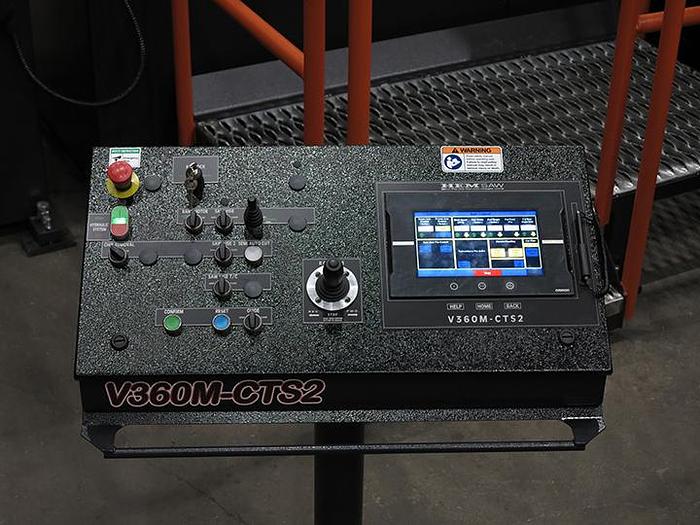

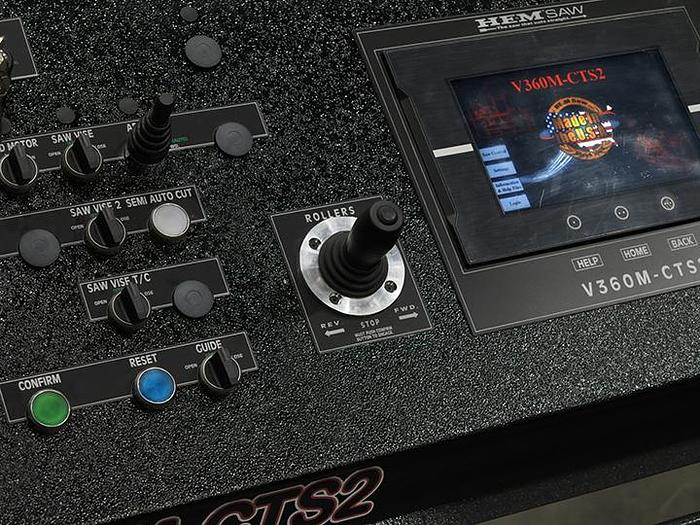

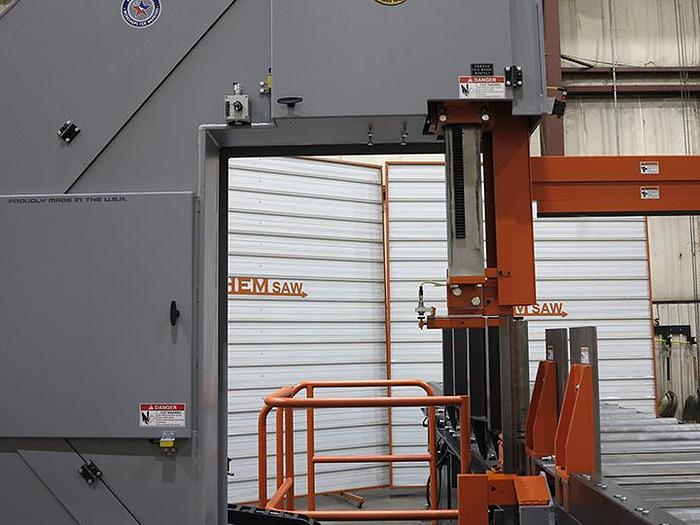

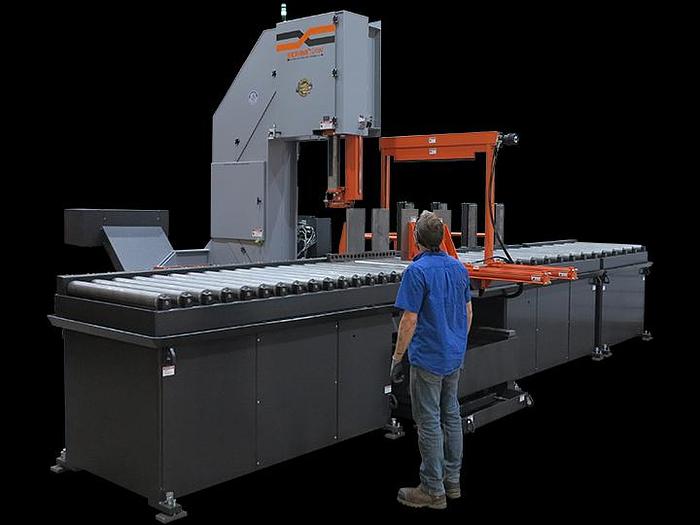

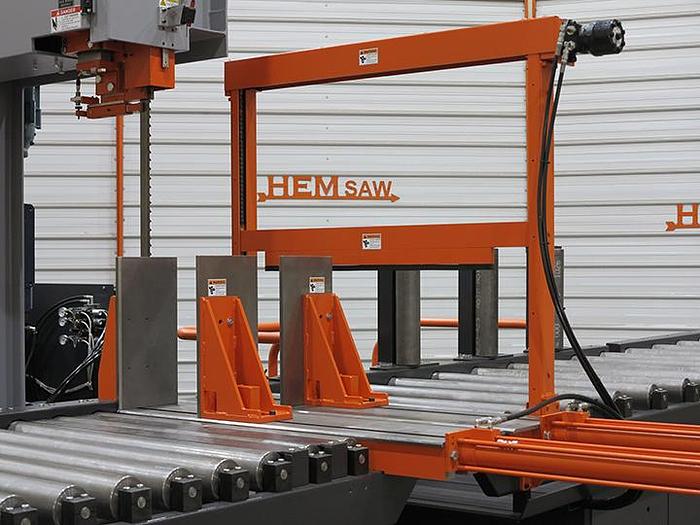

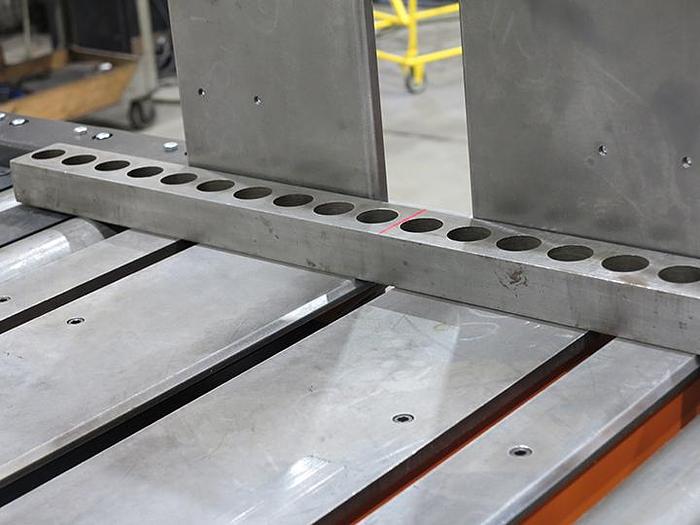

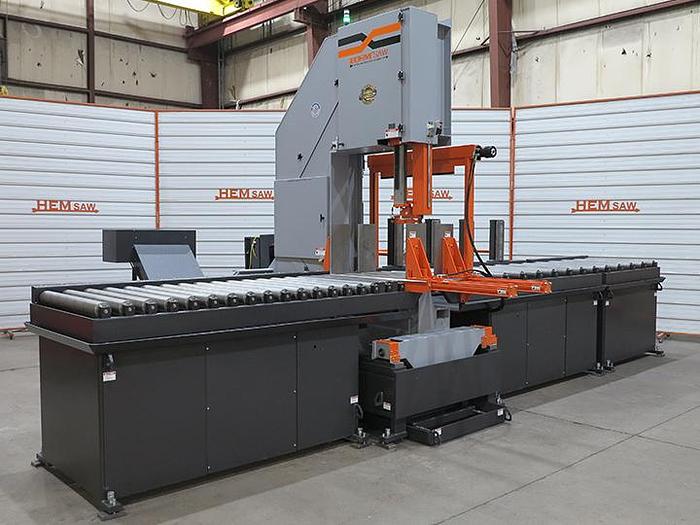

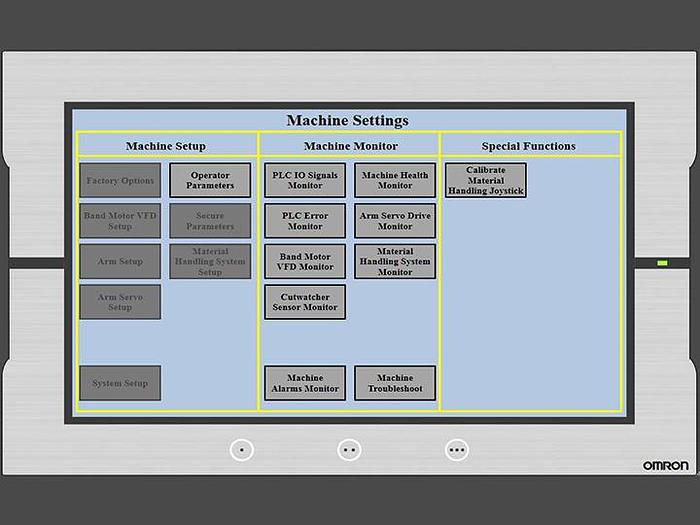

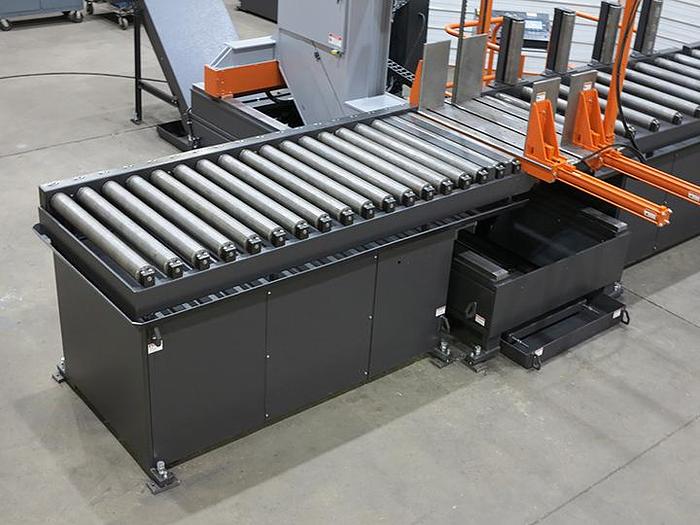

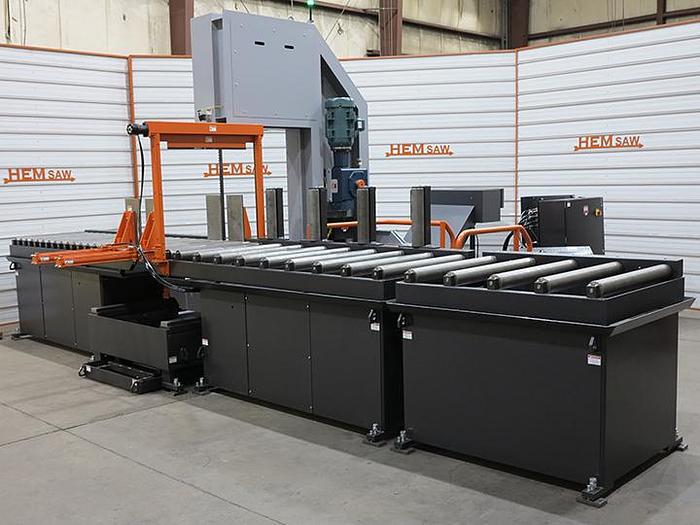

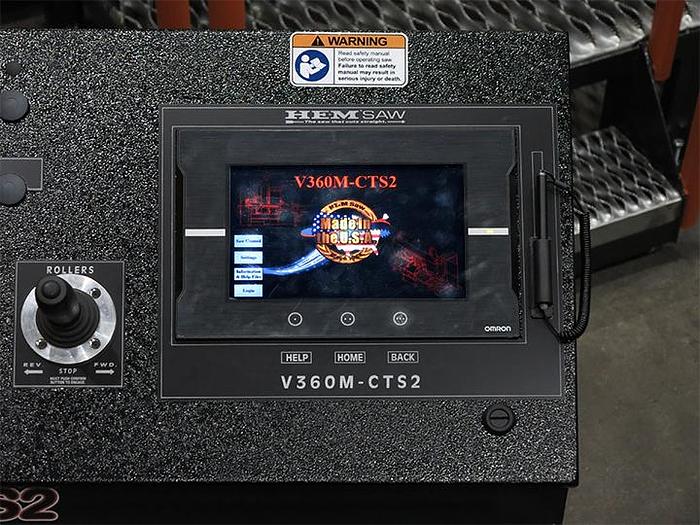

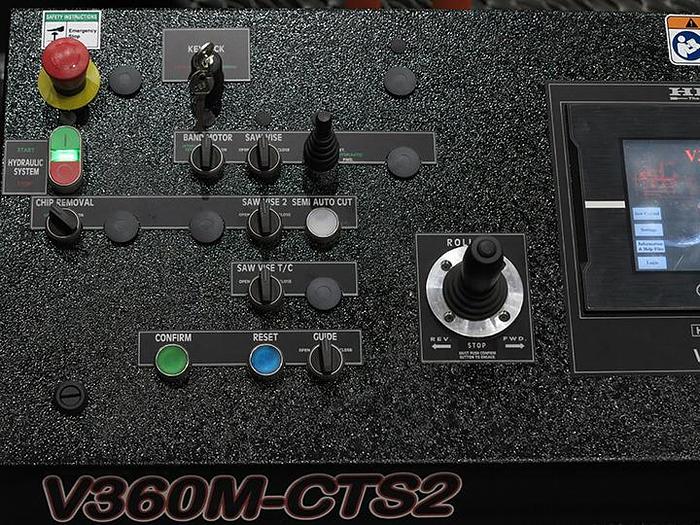

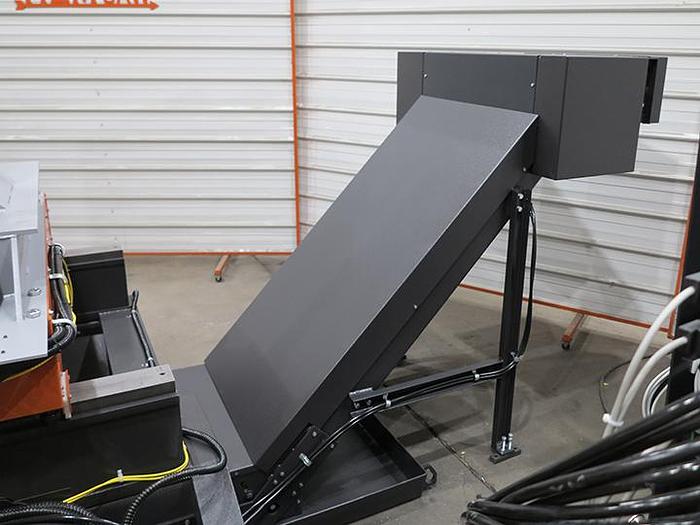

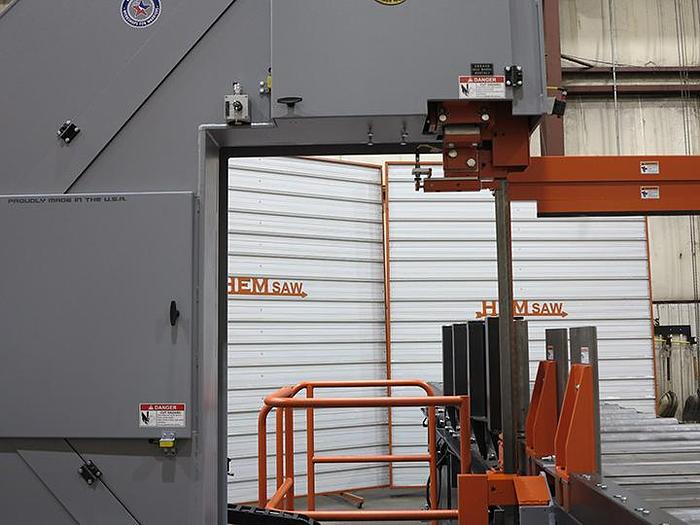

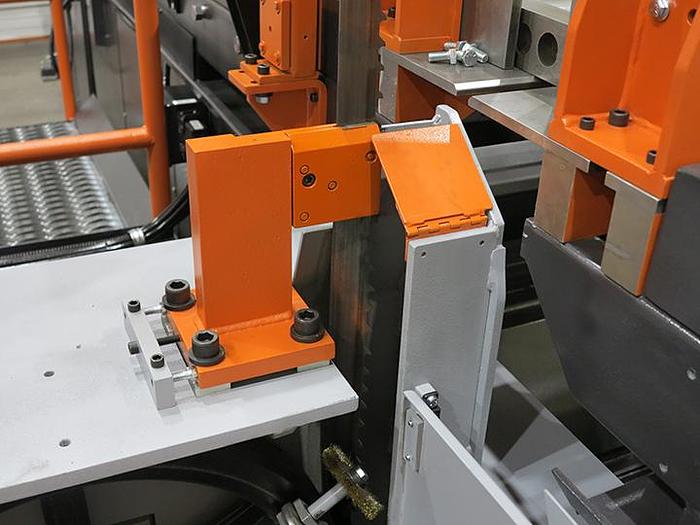

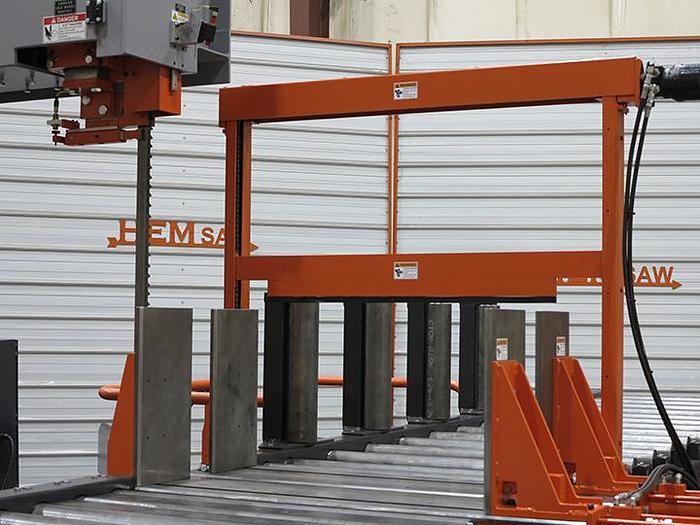

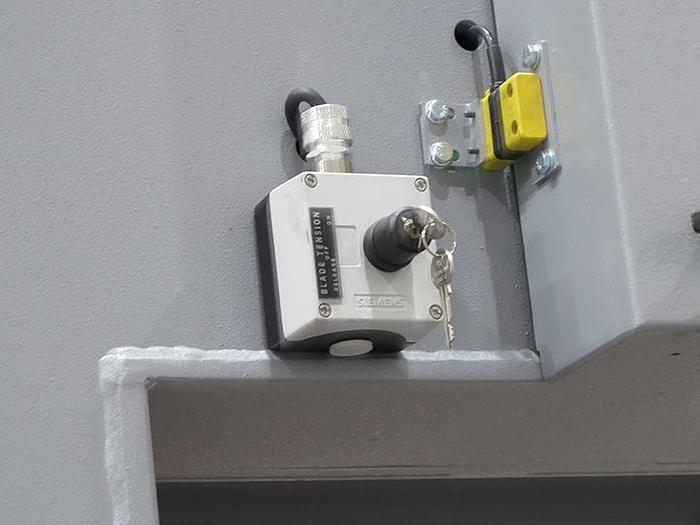

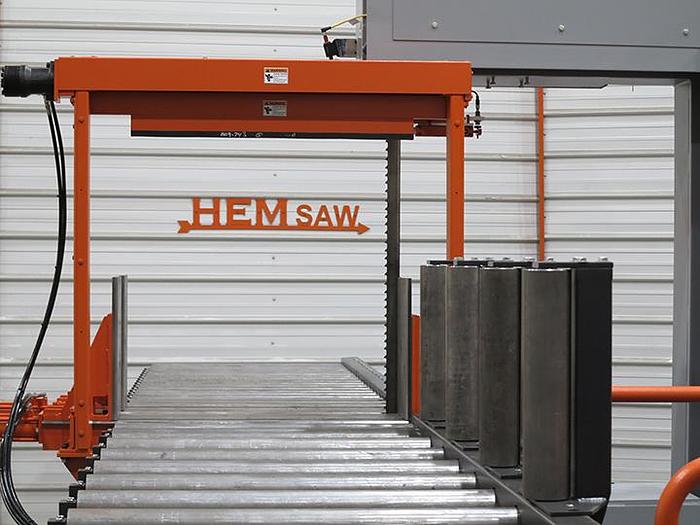

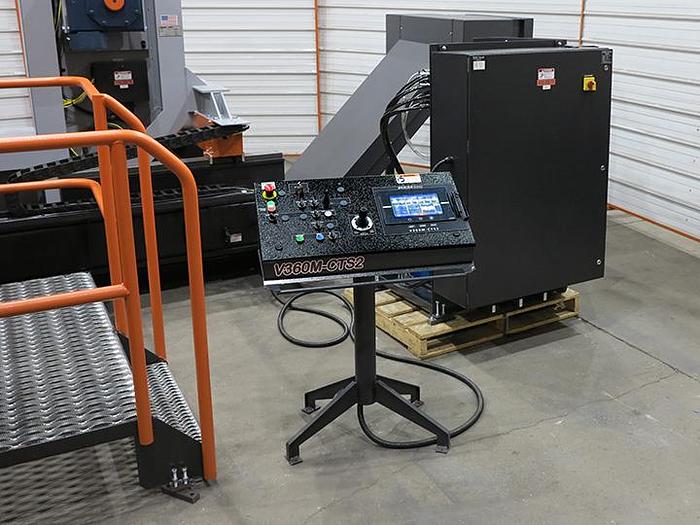

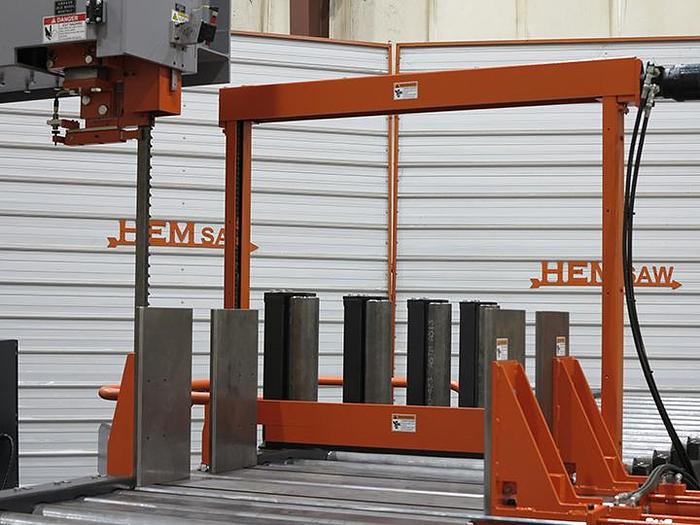

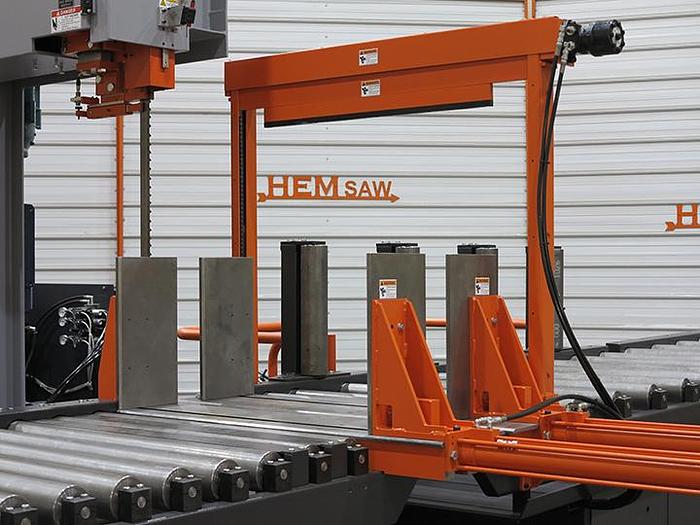

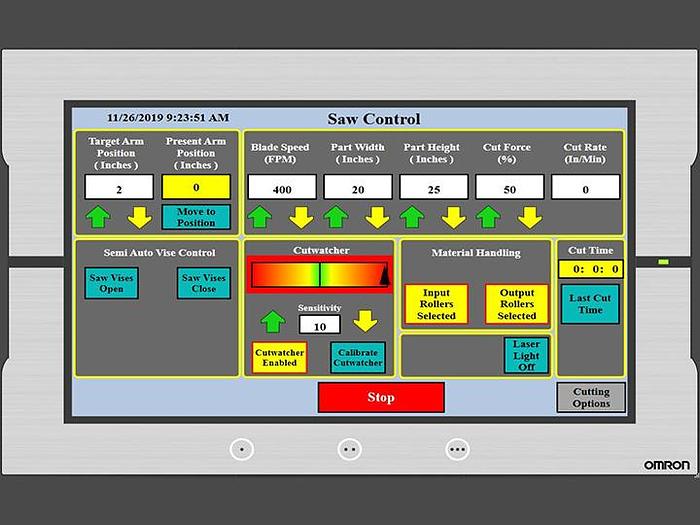

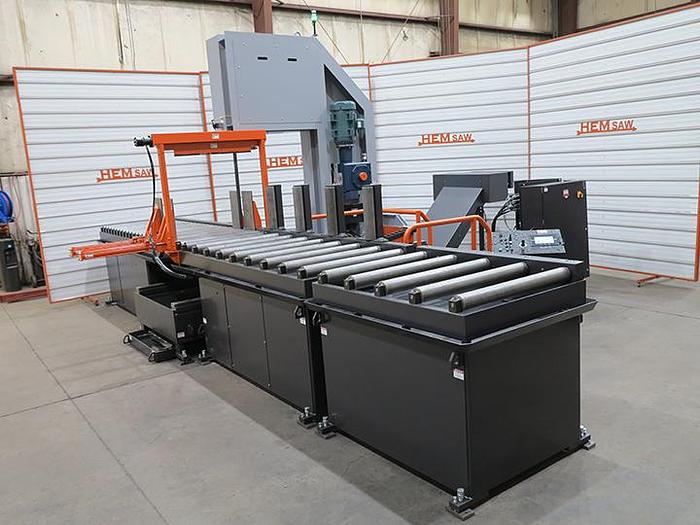

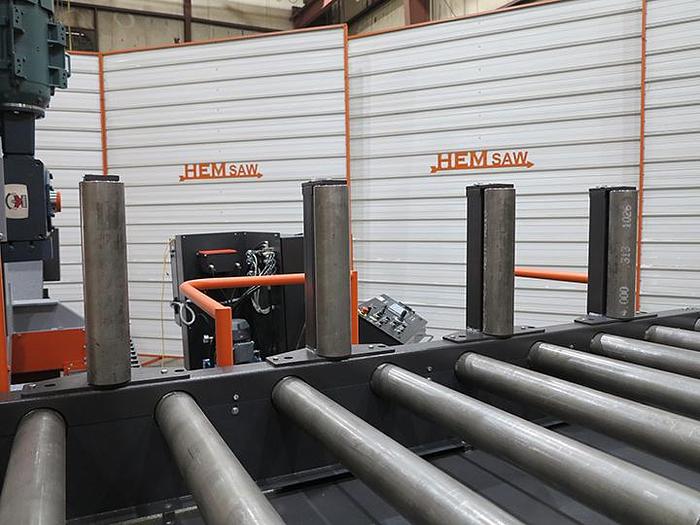

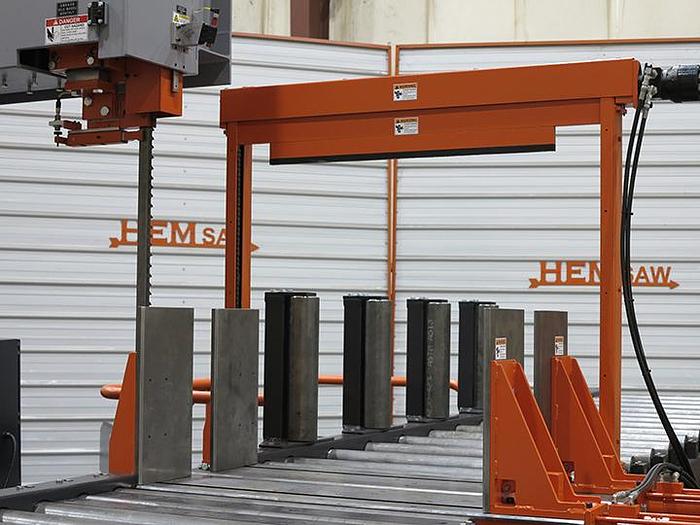

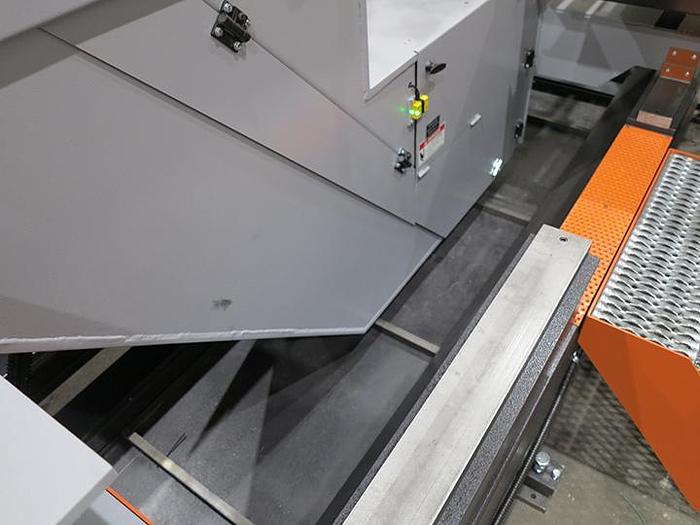

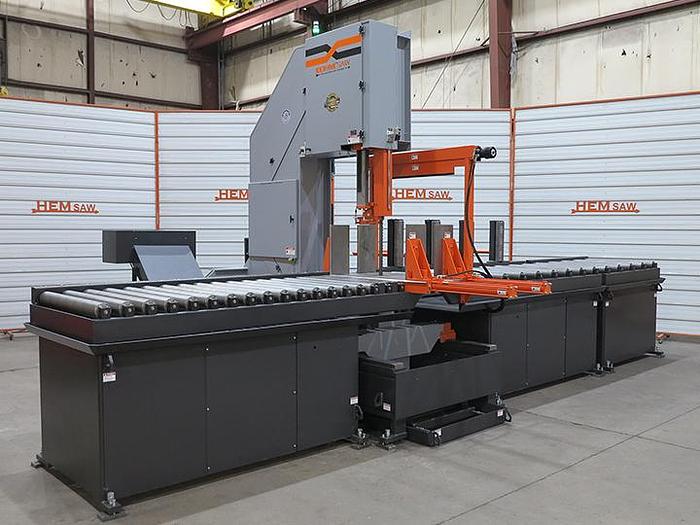

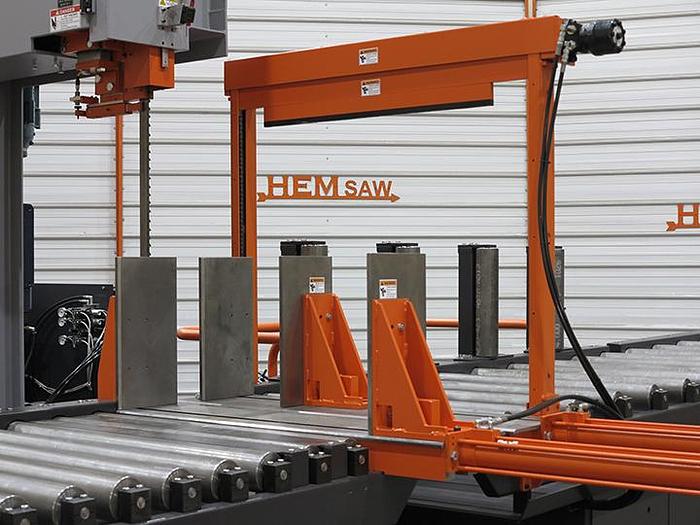

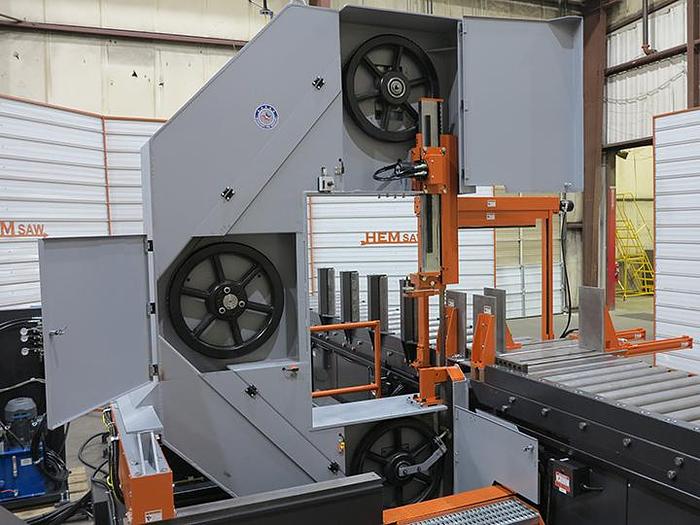

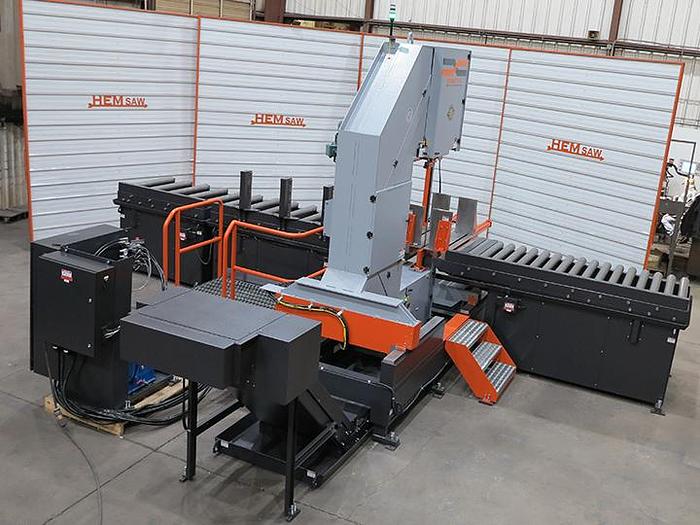

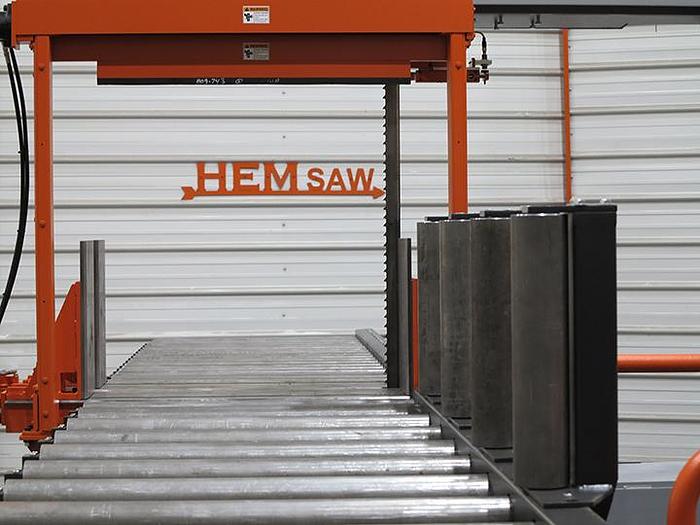

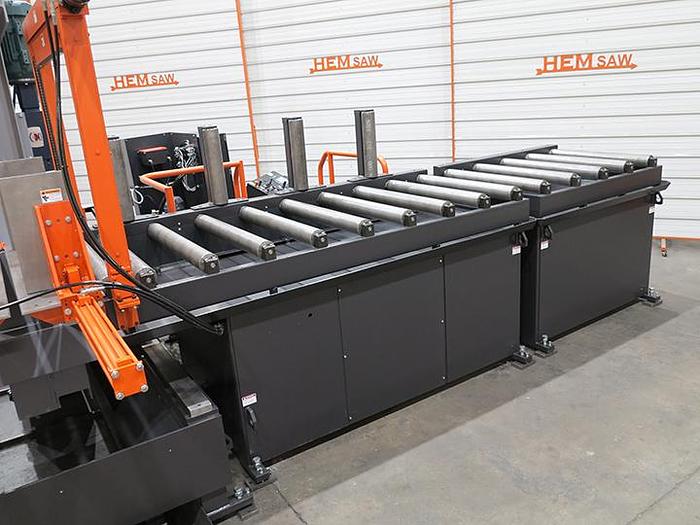

The V360M is a large capacity non-mitering vertical band saw designed to cut large blocks or billets at 90ᵒ. With a 36” high x 36” wide it is equipped with a hefty 20 HP motor and 2” wide blade. A touch screen controls the saw functions, settings, and diagnostics. Pedestal Mounted Control Console w/ 9" Touch Screen Industrial IOT Ready - MTConnect Output Servo Controlled Traverse (SCT) Active "Cut Watcher®" System Vise - Full Stroking Main Adjustable Clamping Force Powered 10' Roller Load Table Powered 10' Roller Discharge Table Variable Blade Speed w/ Readout on Touch Screen Carbide Blade Guides Guide Arm - Powered Powered Blade Tension Chip/Swarf Removal System - Chip Conveyor Coolant System - Flood w/ Wash-Down Hose Blade Brush Blade Change Interlock Safety Guards 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine Top Clamp - Full Capacity Vise - 2nd Main Remote Diagnostics Laser Light System Hydraulic Tank Heater Cold Weather Package
Specifications
| Manufacturer | HE&M |
| Condition | New |
| Main Capacity | 0-36" W x 0-36" H |
| Bar-feed | N/A |
| Blade | 27' 2" L x 2" H x .063" |

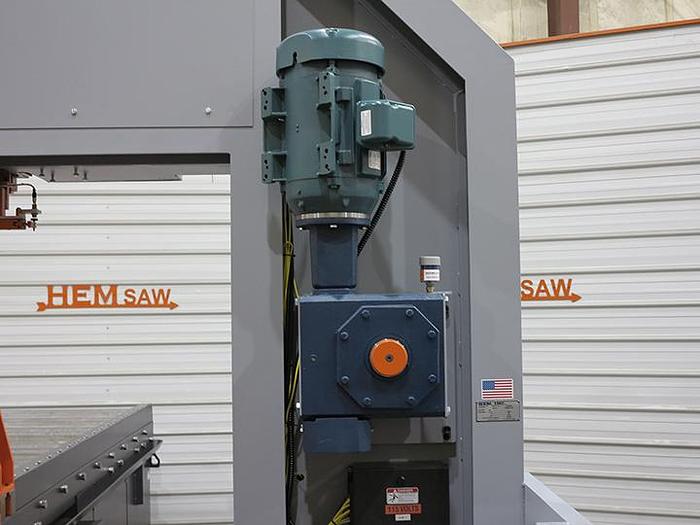

| Motor | 20 HP |
| Hydraulic Motor | 5 HP |
| Operation | Semi-Automatic |
| Rectangular Capacity | 0-36" W x 0-36" H |
| Square Capacity | 0-36" (Square) |
| Round Capacity | 0-36" (Diameter) |
| Operation Type | Semi-Automatic |
| Power Source | Hydraulic |
| Weight | N/A |
| Blade Type | Bandsaw |
| Blade Size | 27' 2" L x 2" H x .063" |
| Bandsaw Blade Speed | 60 SFPM-400 SFPMSRPM |
| Bundle Cut? | No |
| Vertical Band Saws | V360M |
