Description

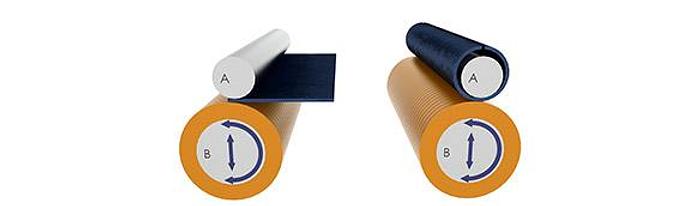

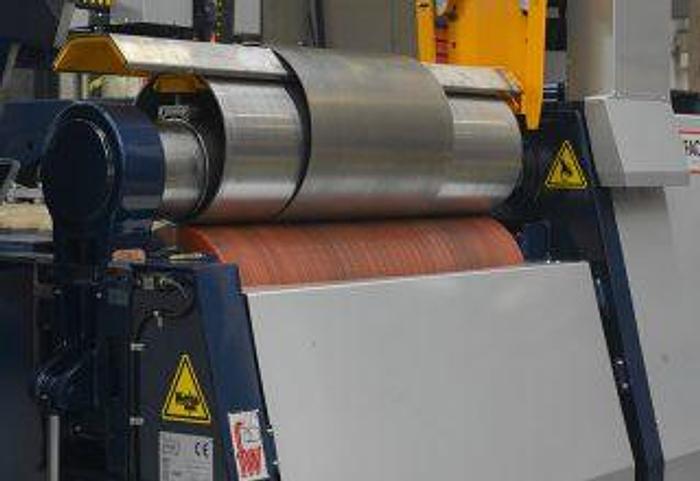

The HCU version 2-roll bending roll designed, built and marketed by Faccin features a special construction system combined with a solid oversized structure which assures absolute precision and reliability, greater simplicity of the plate rolling process and maximum quality of the rolled product. Every bending roll of Faccin’s HCU series is configured with polyurethane roll which, by exerting dynamic pressure, speeds up the plate forming process, assuring the straight end of the produced rolls is removed and greatly simplifying the prebending-rolling-prebending sequences typical of 3-roll or 4-roll bending rolls. Furthermore, the exclusive hydro-mechanical roll lifting system (RGS) assures positioning repeatability and constant working pressures.

Faccin’s HCU series bending rolls with automation assure achieving precise tolerances with very fast processing times. Therefore they are ideal for bending thin plates with thickness between 0.2 and 5 mm and width from 500 to 2000 mm, achieving bending diameter of even less than 80 mm. Faccin’s HCU bending rolls are therefore ideal for mass production of cylinders and tanks.

In the HCU Standard version, Faccin’s 2-roll bending roll  assures productivity greater than 180-200 pieces/hour while peaks of 300 pieces/hour may be reached with model HCU/S. Also, the HCU Standard bending roll version is a fully automatic machine and therefore does not require any manpower. Faccin’s HCU 2-roll bending roll models are the best choice for anyone seeking high speed rolling machines able to assure high productivity and maximum precision in forming.


Standard equipment:


Lower roll in polyurethane for perfect prebending

Automatic processing cycle (about 20 seconds/piece)

Special lower roll lifting system

Standard roll for minimum diameter

Siemens Numerical Control for automatic cycle control

Automatic release opening

Lubrication circuit

Emergency button

Emergency barrier around the machine

CE certified machine

Optional features:


Different sized chuck tubes

Chuck tube support

Central cylinder support

Automatic working pressure adjustment

Interchangeable rolls

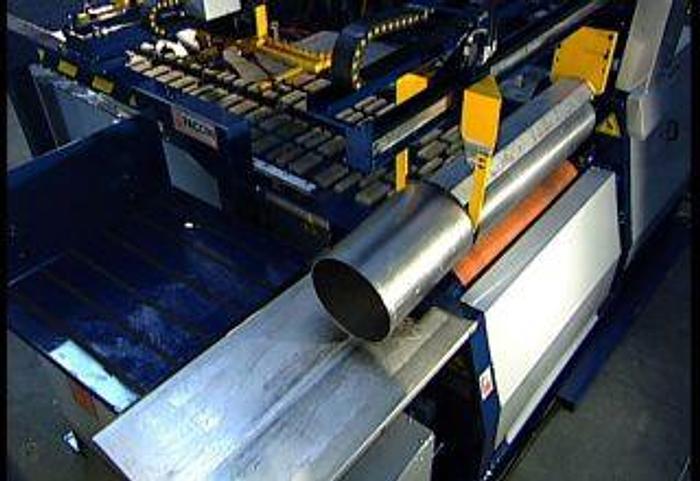

Automatic sheet loader

Automatic feeding and centering tables

Programmable motorised backing

Automatic cylinder ejector

Automatic welding systems

Specifications

ManufacturerFaccin
Model2 HCU
ConditionNew
