Description

The Industry Standard for Precision CNC Plasma Cutters When you need a cost-effective, precise CNC plasma cutter, turn to the tru-kut. As a unitized machine that utilizes Hypertherm SureCut™ technology, it has the highest accuracy of motion in any plasma cutting system on the market. It’s the industry standard for value in precision CNC plasma cutting.

The tru-kut comes with countless state-of-the-art tools, features, options, and more. This machine is fully customizable to your operation, which maximizes your investment. If you’re thinking about buying a tru-kut CNC plasma cutter, contact our team. We’ll help you determine the best combination of tools to ensure you get exactly what you need.

When you need a cost-effective, precise CNC plasma cutter, turn to the tru-kut. As a unitized machine that utilizes Hypertherm SureCut™ technology, it has the highest accuracy of motion in any plasma cutting system on the market. It’s the industry standard for value in precision CNC plasma cutting.

The tru-kut comes with countless state-of-the-art tools, features, options, and more. This machine is fully customizable to your operation, which maximizes your investment. If you’re thinking about buying a tru-kut CNC plasma cutter, contact our team. We’ll help you determine the best combination of tools to ensure you get exactly what you need.

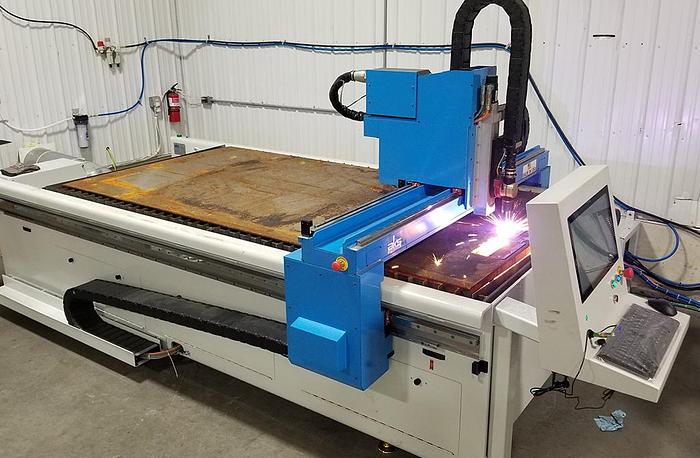

Features Standard Multi-Zoned Downdraft Table The downdraft table creates a cleaner workspace for your employees. With advanced smoke and fume extraction capabilities, it improves air quality in your building.

Advanced Helical Rack and Pinion Drive Systems Features 12-foot X-axis dual synchronized drives with helical rack and pinion. It also has a 6-foot Y-axis bridge single drive with helical rack and pinion. This configuration allows for precise motion control, increased stability, and high-speed cutting.

Advanced THC Lifter Our advanced torch height control (THC) lifter helps maintain a consistent and optimal distance between the torch and workpiece. This results in precise and high-quality cuts while also protecting the torch and extending consumable life.

Hypertherm SureCut™ Technology SureCut™ Technology automatically applies optimized cutting parameters, which simplifies cutting and reduces operator intervention.

Hypertherm Edge Connect CNC Controller The Edge Connect CNC controller enhances overall system reliability, improves cut quality, and increases productivity for your operation.

Standard Hy-Definition Torch With a hy-definition torch, you can achieve high-quality, high-precision cuts in various metal thicknesses.

Gantry Parking Spot The gantry parking spot ensures your plasma torch remains in a safe, out-of-the-way position while loading and unloading cutting materials.

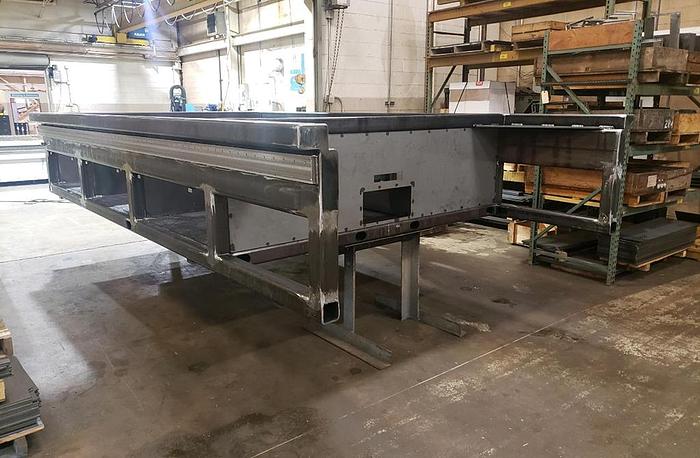

Heavy-Duty Unitized Table The tru-kut features a unitized design with removable/replaceable slats. This design ensures you get precise cuts, every time. The table also features 2-inch thick full plate load capacity.

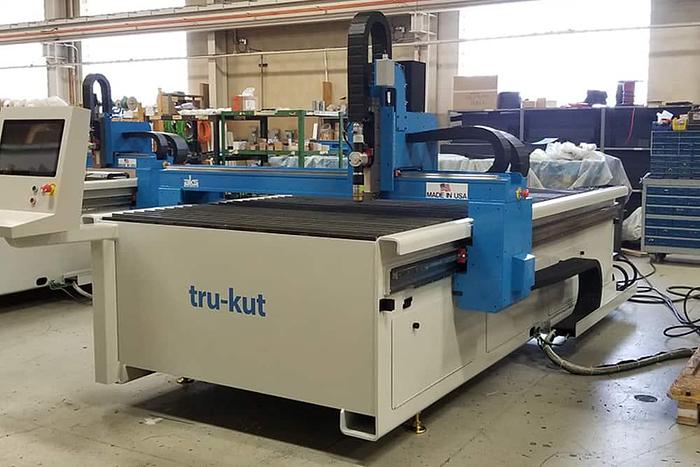

Standard Downdraft Table Easily create a safer work environment with the tru-kut’s standard downdraft table. It expertly removes smoke, fumes, and fine particulate matter from the workplace.

Marking Technology The tru-kut makes it easy to mark bendlines, weld points, or any other shape, which optimizes your operations and reduces costly downtime. Any AKS system can utilize argon/nitrogen marking, pin stamping, or air scribe technology.

Direct Pinion Loading With direct pinion loading, you can minimize backlash and reduce the potential for positioning errors. This is crucial for maintaining high precision in plasma cutting operations, where even small deviations can lead to significant inaccuracies in the final cut

Automatic Torch Height Control Our advanced torch height control (THC) lifter helps maintain a consistent and optimal distance between the torch and workpiece. This gives precise cuts while protecting the torch and extending consumable life.

Plug-and-Play Installation Hook the unit up to a power supply and it’s ready to cut. No complex installation required.

Slide-Out Slag Pans Make maintenance and cleaning easy with slide out slag pans inside of clean-out access doors. These allow easy access to the interior of the machine where slag, debris, and other residue accumulate.

Magnetic Breakaway Head The magnetic breakaway head protects plasma torch and machine from damage in case of collision or unintended contact with the workpiece.

The downdraft table creates a cleaner workspace for your employees. With advanced smoke and fume extraction capabilities, it improves air quality in your building.

Features 12-foot X-axis dual synchronized drives with helical rack and pinion. It also has a 6-foot Y-axis bridge single drive with helical rack and pinion. This configuration allows for precise motion control, increased stability, and high-speed cutting.

Our advanced torch height control (THC) lifter helps maintain a consistent and optimal distance between the torch and workpiece. This results in precise and high-quality cuts while also protecting the torch and extending consumable life.

SureCut™ Technology automatically applies optimized cutting parameters, which simplifies cutting and reduces operator intervention.

The Edge Connect CNC controller enhances overall system reliability, improves cut quality, and increases productivity for your operation.

With a hy-definition torch, you can achieve high-quality, high-precision cuts in various metal thicknesses.

The gantry parking spot ensures your plasma torch remains in a safe, out-of-the-way position while loading and unloading cutting materials.

The tru-kut features a unitized design with removable/replaceable slats. This design ensures you get precise cuts, every time. The table also features 2-inch thick full plate load capacity. Easily create a safer work environment with the tru-kut’s standard downdraft table. It expertly removes smoke, fumes, and fine particulate matter from the workplace.

The tru-kut makes it easy to mark bendlines, weld points, or any other shape, which optimizes your operations and reduces costly downtime. Any AKS system can utilize argon/nitrogen marking, pin stamping, or air scribe technology.

With direct pinion loading, you can minimize backlash and reduce the potential for positioning errors. This is crucial for maintaining high precision in plasma cutting operations, where even small deviations can lead to significant inaccuracies in the final cut.

Our advanced torch height control (THC) lifter helps maintain a consistent and optimal distance between the torch and workpiece. This gives precise cuts while protecting the torch and extending consumable life.

Hook the unit up to a power supply and it’s ready to cut. No complex installation required. Make maintenance and cleaning easy with slide out slag pans inside of clean-out access doors. These allow easy access to the interior of the machine where slag, debris, and other residue accumulate.

The magnetic breakaway head protects plasma torch and machine from damage in case of collision or unintended contact with the workpiece.

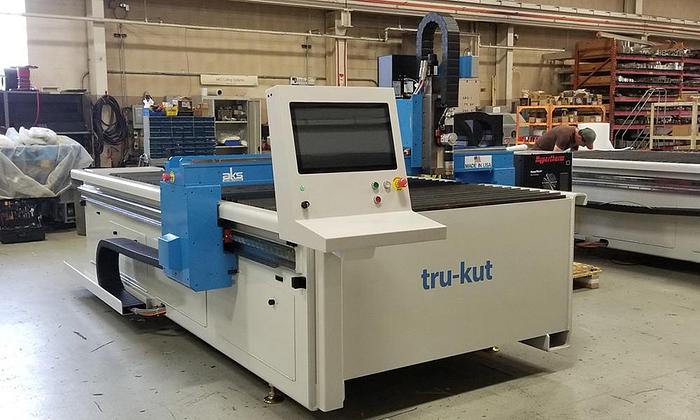

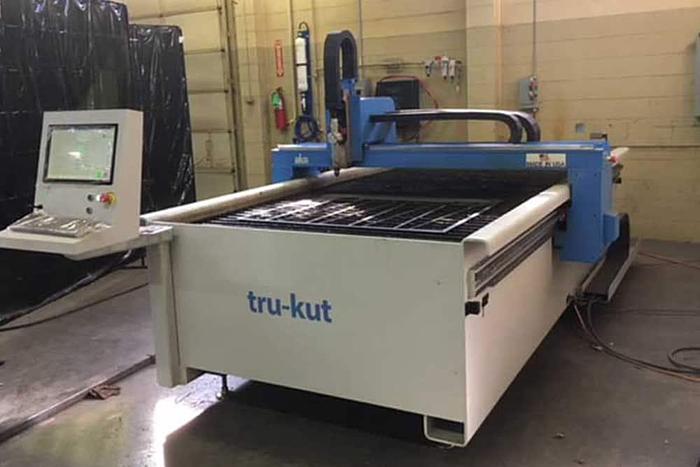

The tru-kut features 5’x10’ and 6’x12’ options. With multiple sizes available, the tru-kut offers maximum convenience for your business.

Customize your downdraft table to ensure the machine meets your needs. Our imperial dust collector — model CM04 — gathers airborne dust and particles. Our dust drum level sensor prevents dust overflow. Additionally, our HEPA filter increases air filtration efficiency and particle capture. We also have cold weather solenoid kits to prevent freezing and operational issues. Upgrading to a water table can result in a cleaner workspace, improved material cooling, enhanced precision, noise reduction, and more. We offer a complete steel structure water tank design with removable/replaceable steel slats. Removable scrap pans are optional and easy-to-clean while keeping the table in production.

Experience improved cut quality, minimized warping, enhanced piercing, and more with an optional water level raise/lower control.

Accessories Digital Camera and Crosshair Get better cuts by adding a digital camera with on-screen crosshair. This technology helps operators accurately align the cutting path with the desired location. Get better cuts by adding a digital camera with on-screen crosshair. This technology helps operators accurately align the cutting path with the desired location. AKS Cutting Systems is the only company that provides the full suite of Hypertherm SureCut technology options for our CNC plasma cutter solutions. SureCut maximizes performance by providing embedded expertise from a combination of tools. These tools include state-of-the-art plasma power supplies, along with CNC and CAM software. SureCut automatically applies optimized cutting parameters, which simplifies cutting and reduces operator intervention. With the ability to work across multiple cutting technologies, SureCut improves job efficiency. You also get access to remote help if you need to troubleshoot, which reduces downtime in your operation. The SureCut suite of tools includes: True Hole for mild steel produces significantly better hole quality than traditional plasma technology. Factory tested and easily implemented, True Bevel takes the guesswork out of the plasma bevel cutting process. Rapid Part controls and optimizes every step in the plasma cutting process, which reduces cut-to-cut cycle time. Sensor Torch Height Control is a CNC-integrated system that provides optimized plasma cut performance and reliability. ProNest CAD/CAM part nesting software helps you achieve greater automation, efficiency, and profitability. Save time and take stress off your plate with our fast installation services. The five-day installation process includes onsite installation and training by a certified AKS technician. Our warranty covers parts and labor for new AKS CNC plasma cutter machines. Speak to one of our team members to see terms and conditions. All AKS customers are eligible to participate in our Elite Edge Customer Success Program. This program provides discounts on AKS service, consumables, and more. AKS customers get lifetime phone support for all service and cutting needs. Must purchase Hypertherm™ consumables from AKS Cutting Systems to be eligible.

Specifications

ManufacturerAKS
ConditionNew
Motion Accuracy+/- 0.004-inch per 3-feet accuracy of motion
Travel Speed1200 ipm maximum travel speed
Screen Size19-inch color touch screen console
Max Cut Depth3 inches
Max Cut Width5 or 6 feet
Max Cut Length10 or 12 feet
