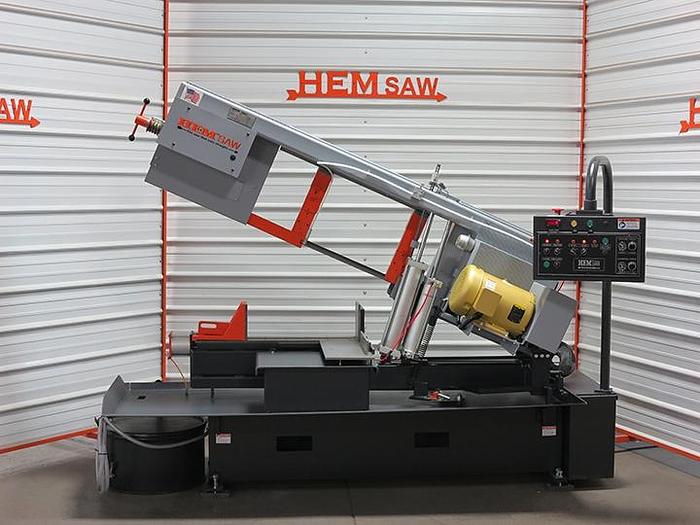

HE&M Saw Cyclone M
HE&M Saw Cyclone M
Description

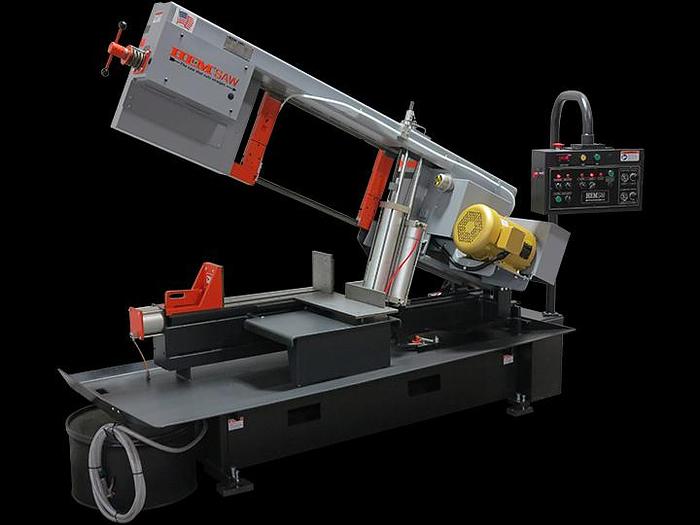

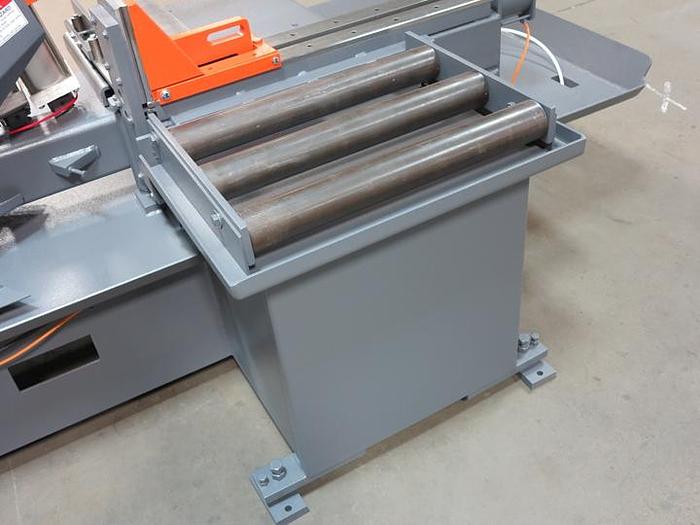

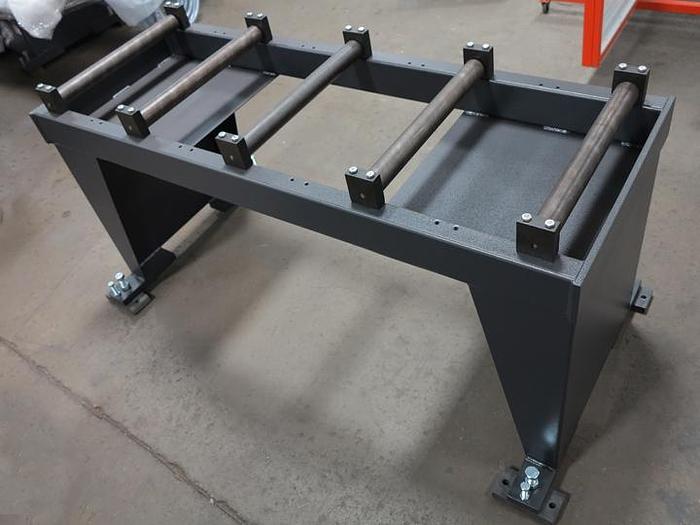

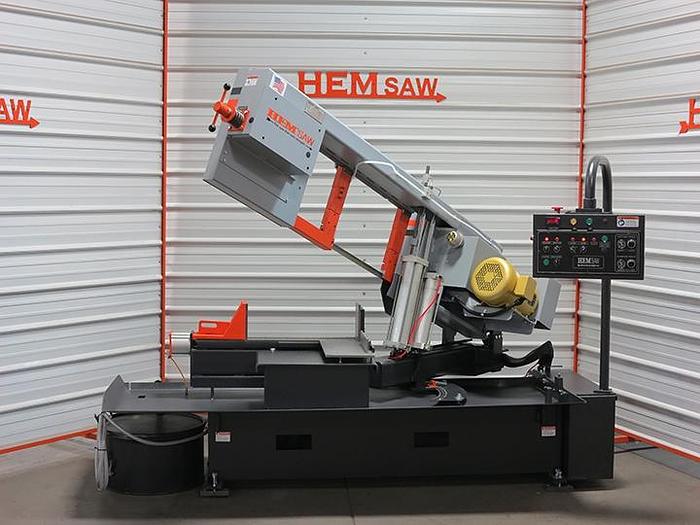

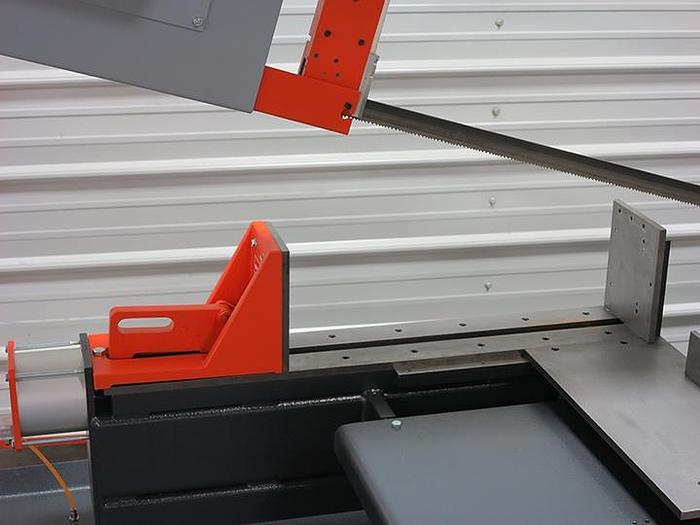

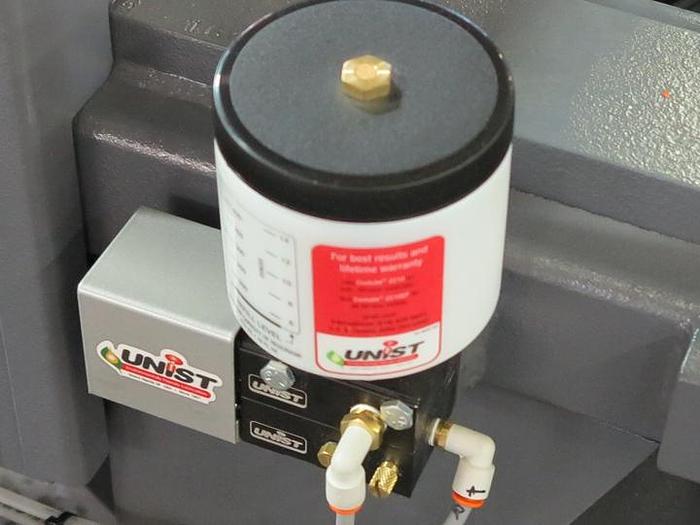

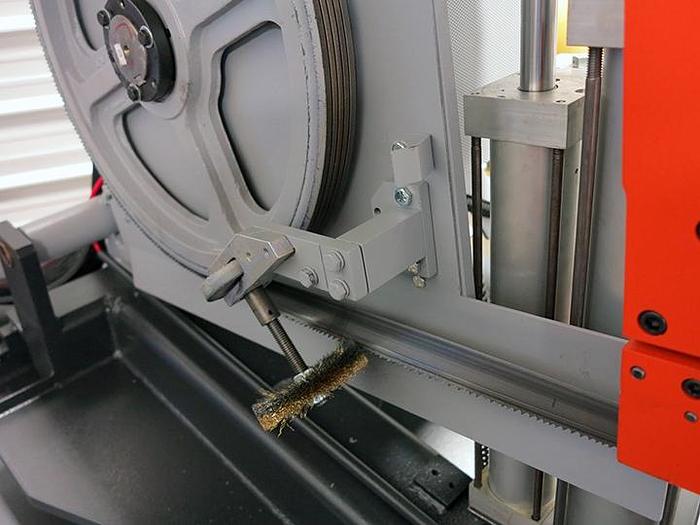

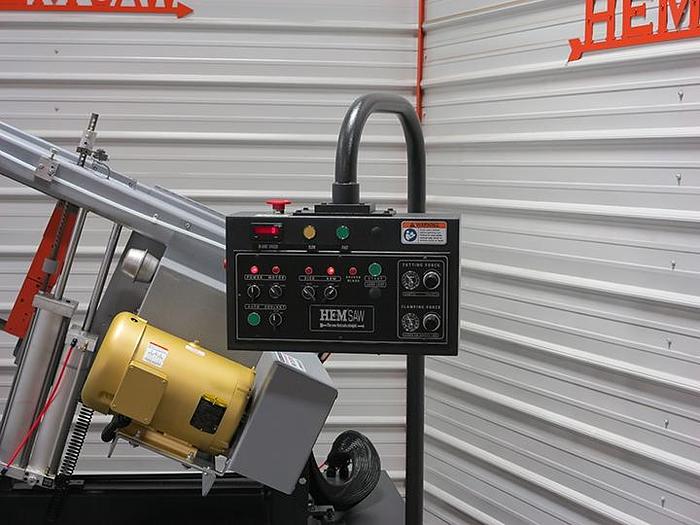

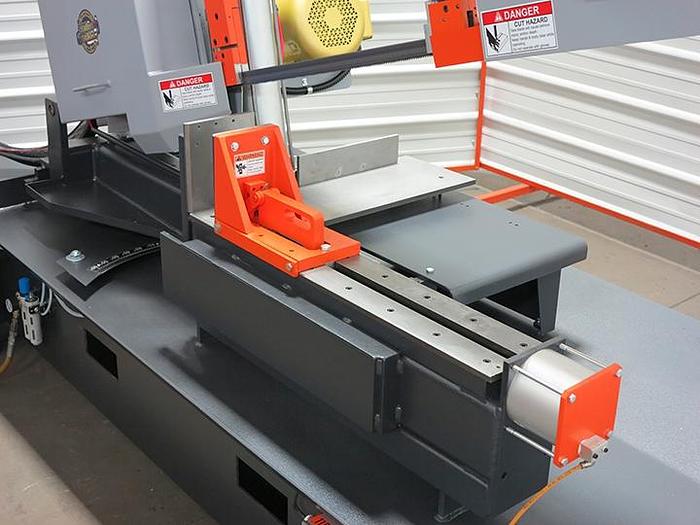

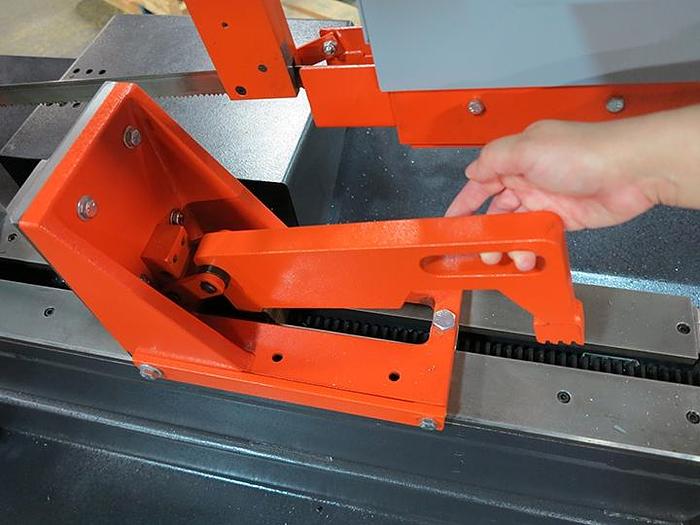

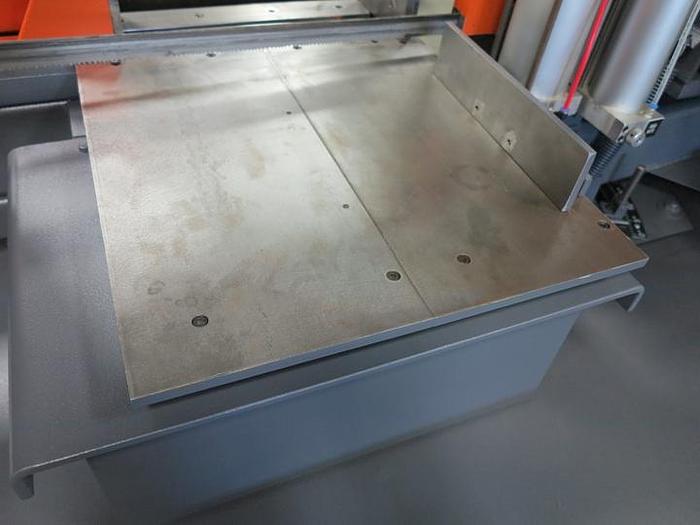

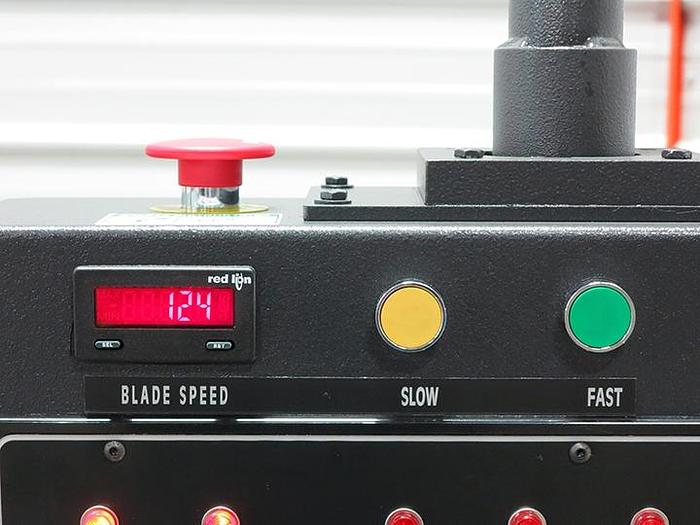

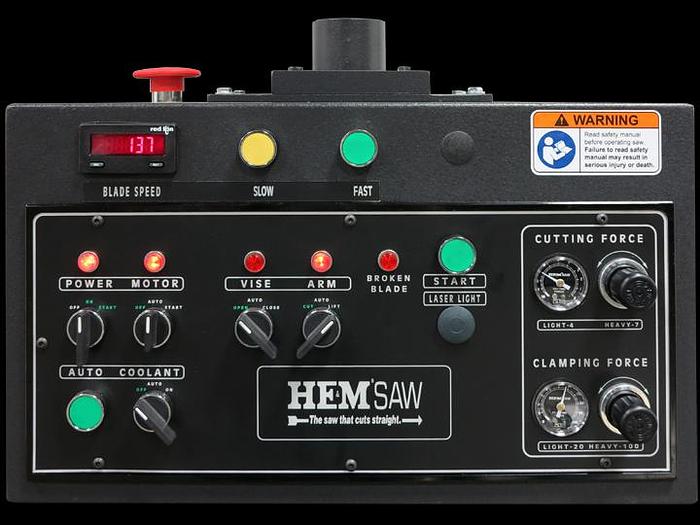

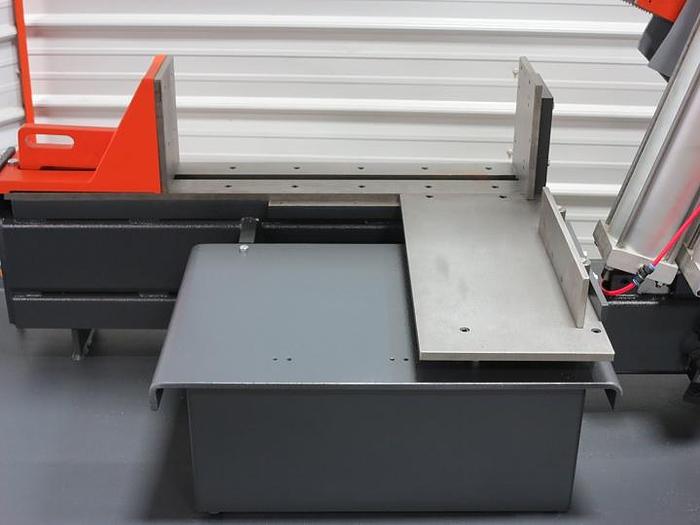

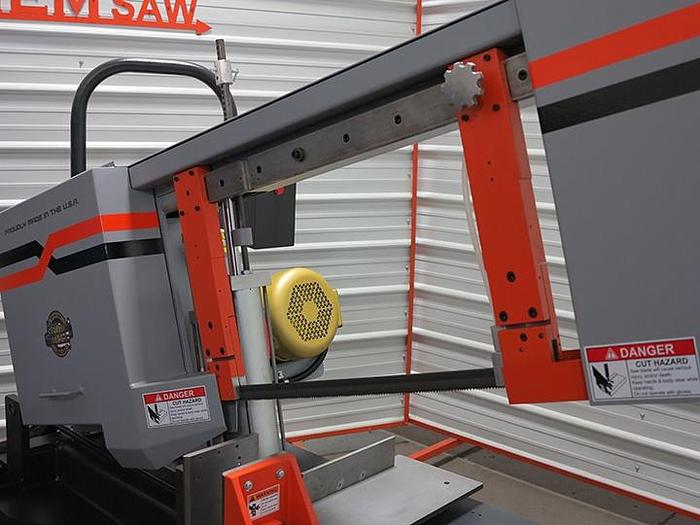

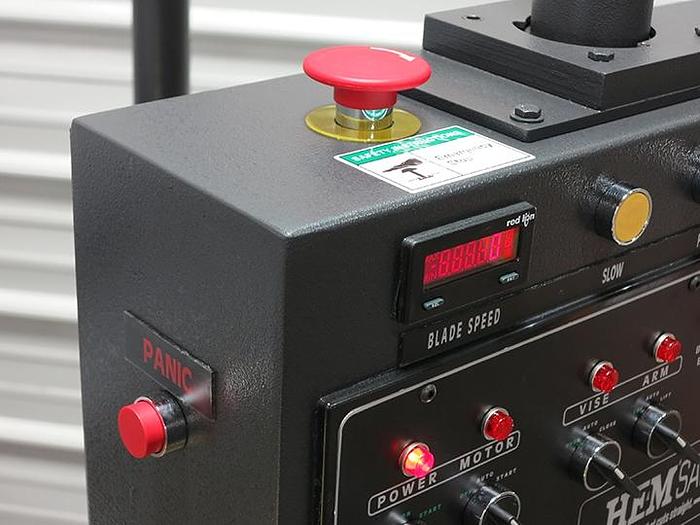

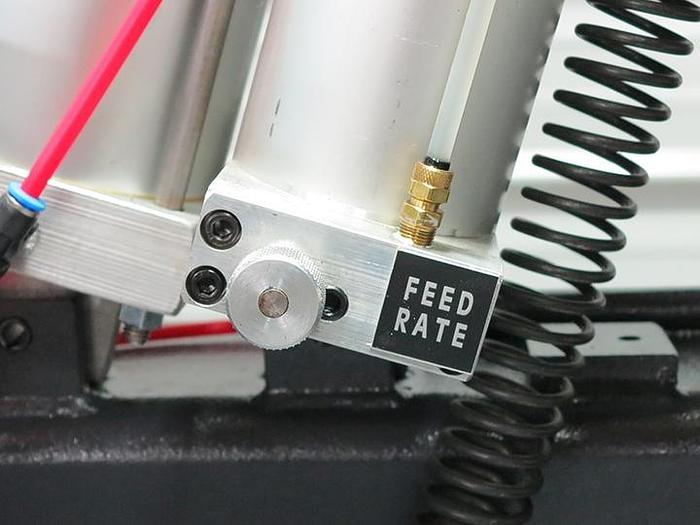

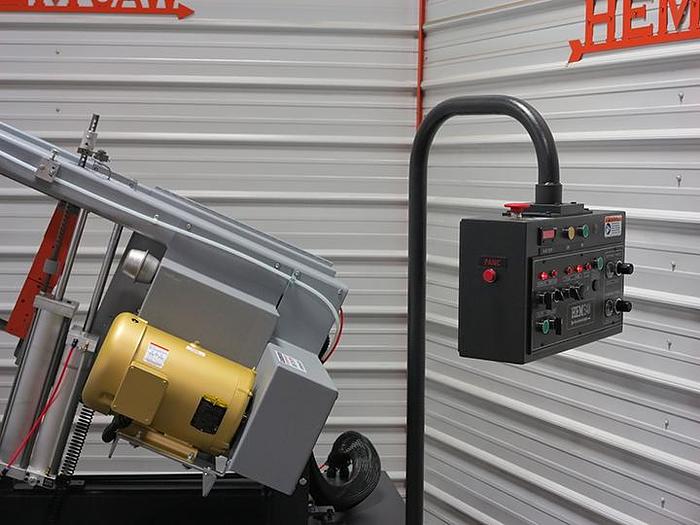

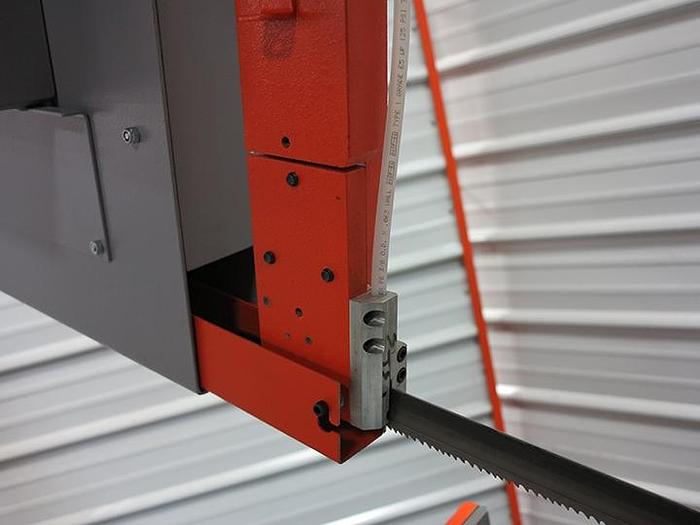

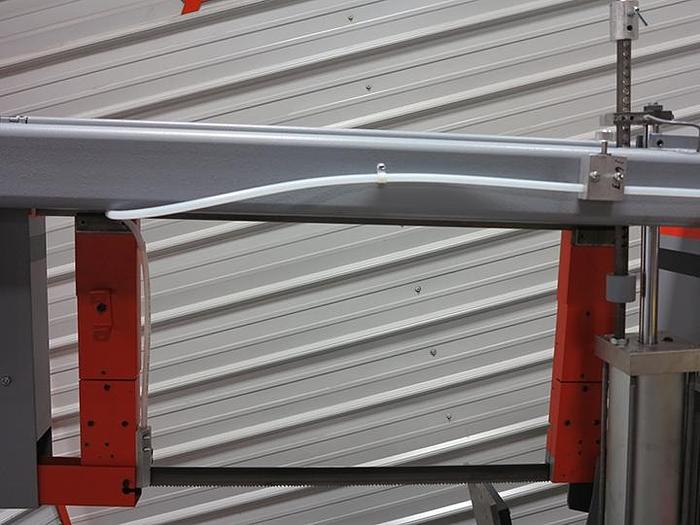

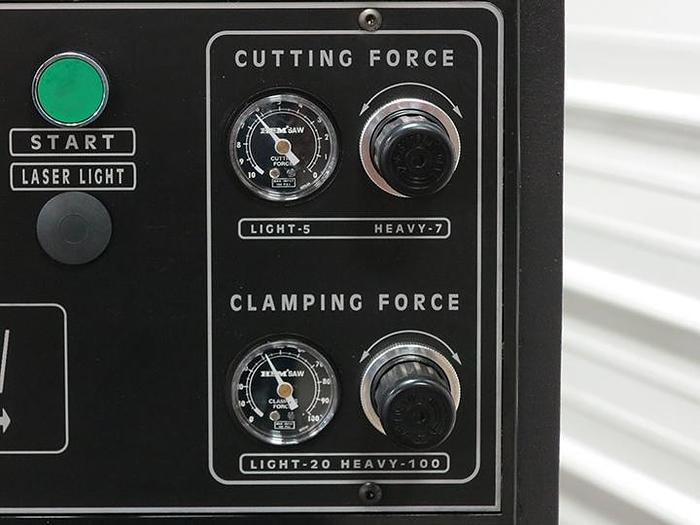

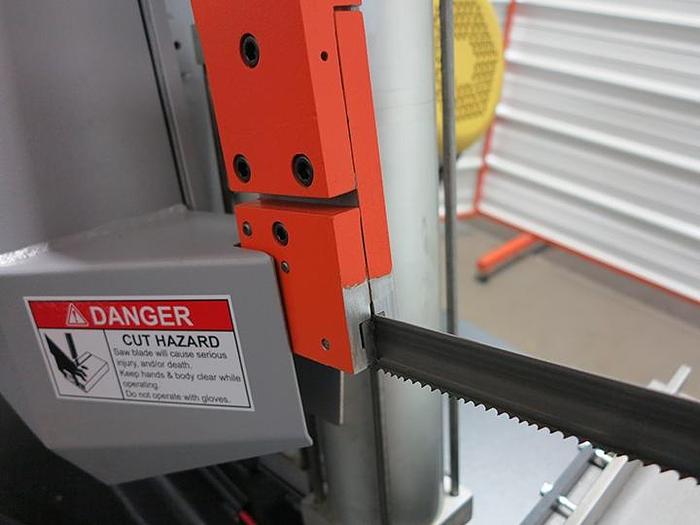

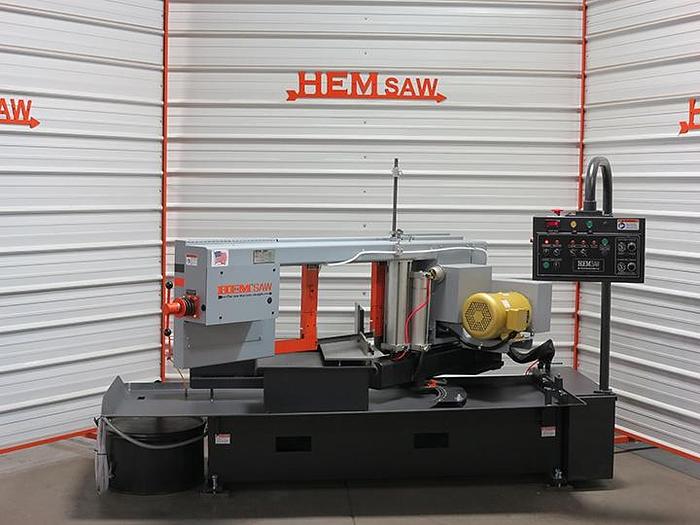

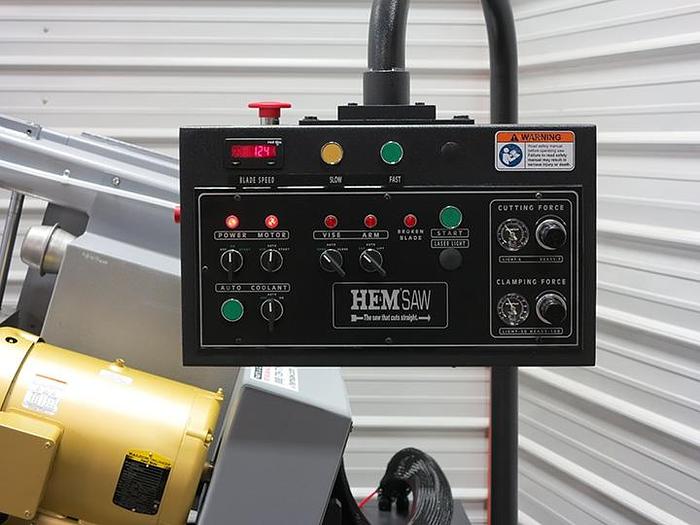

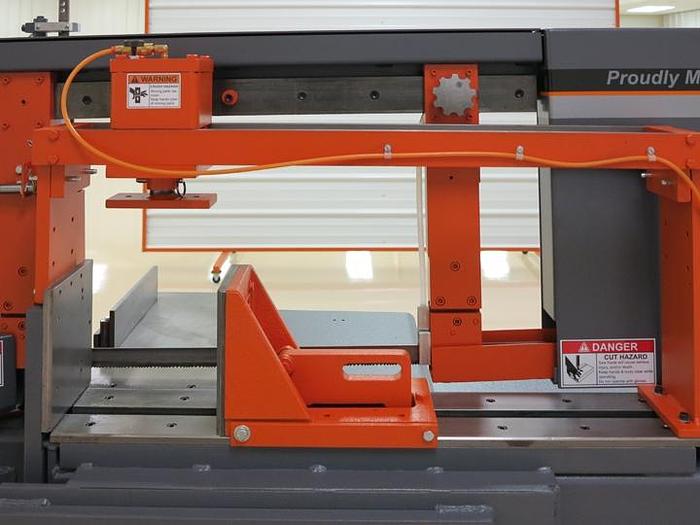

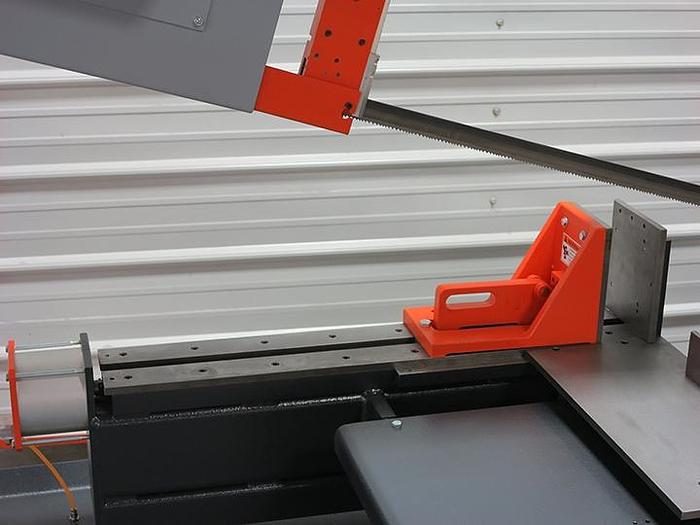

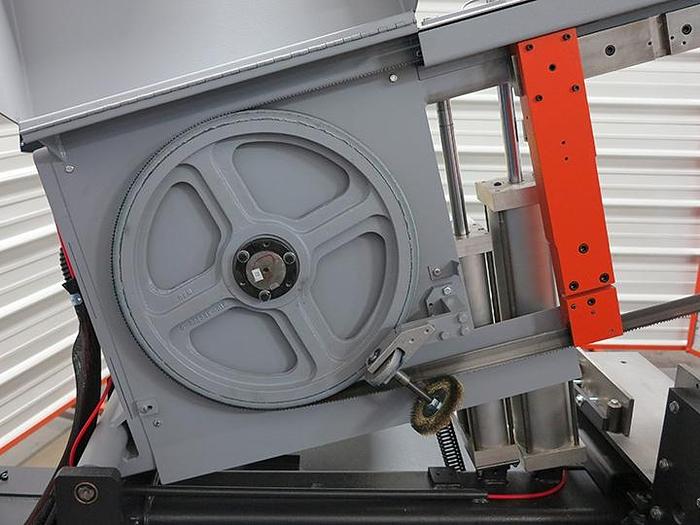

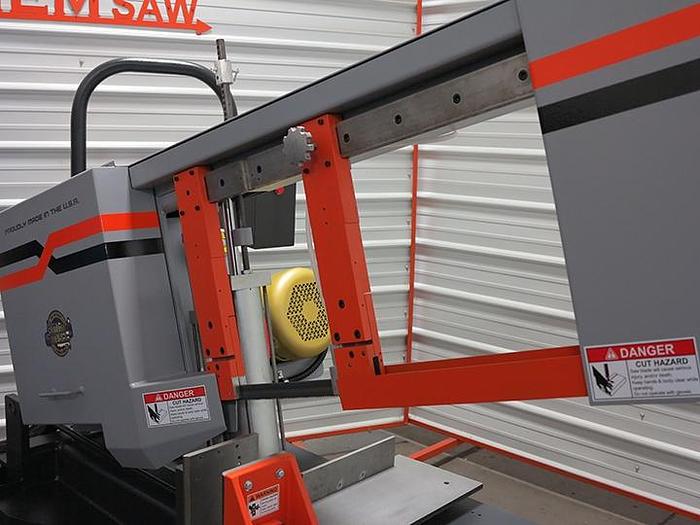

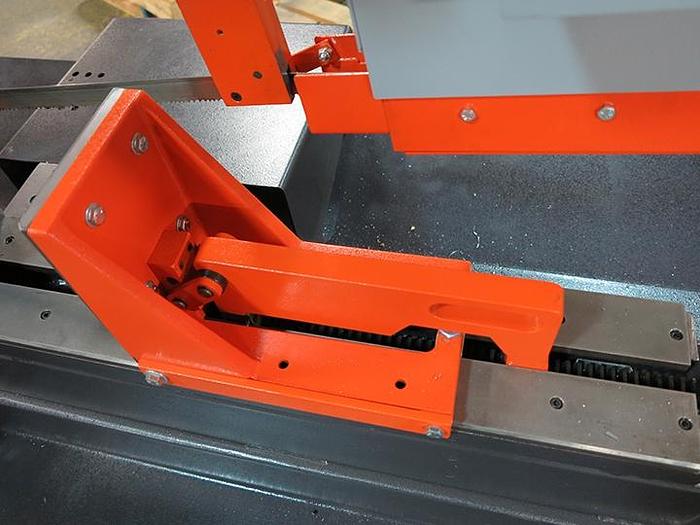

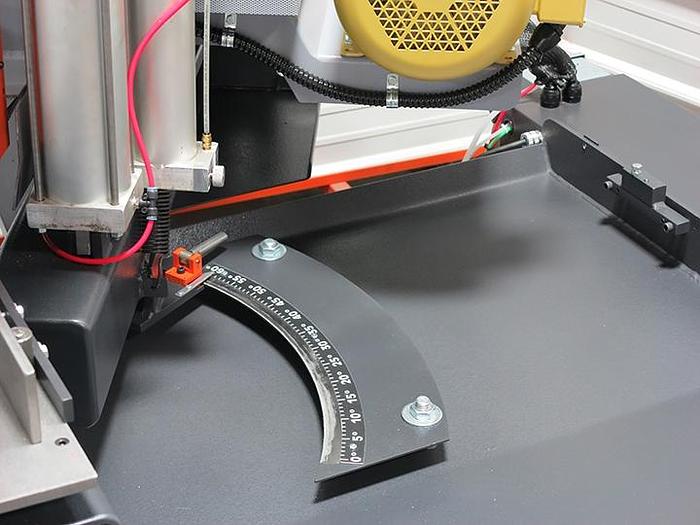

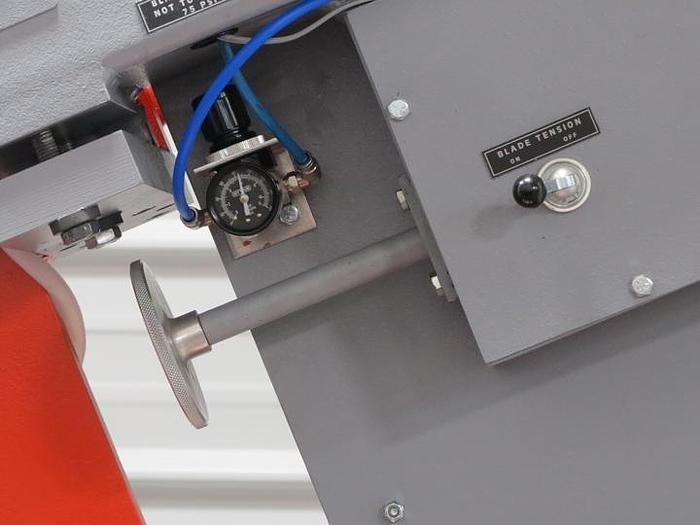

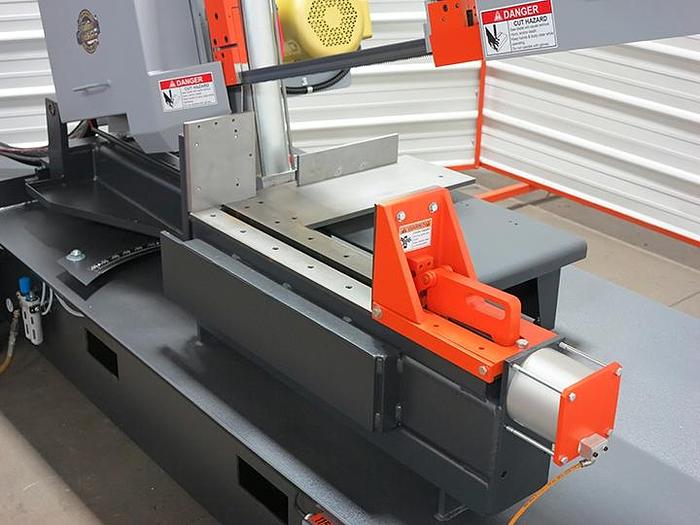

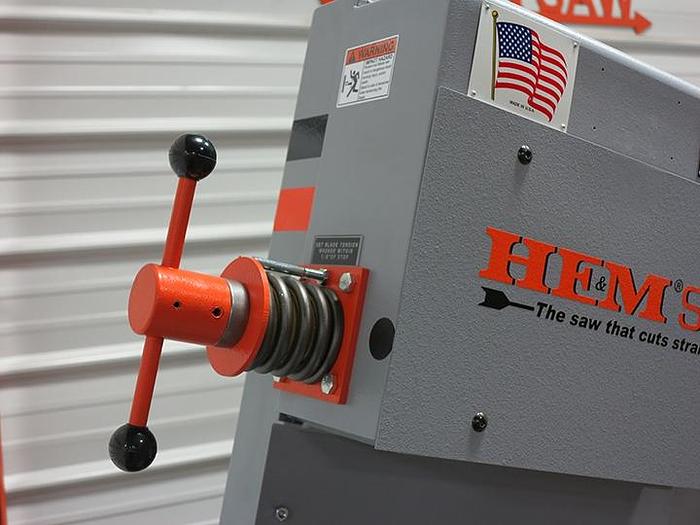

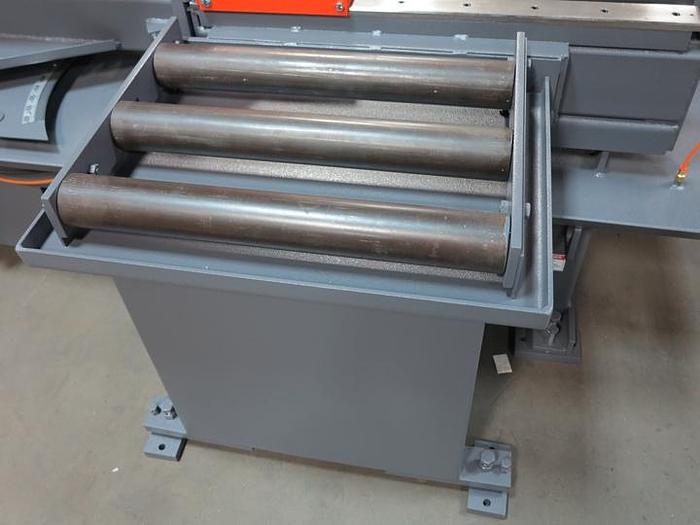

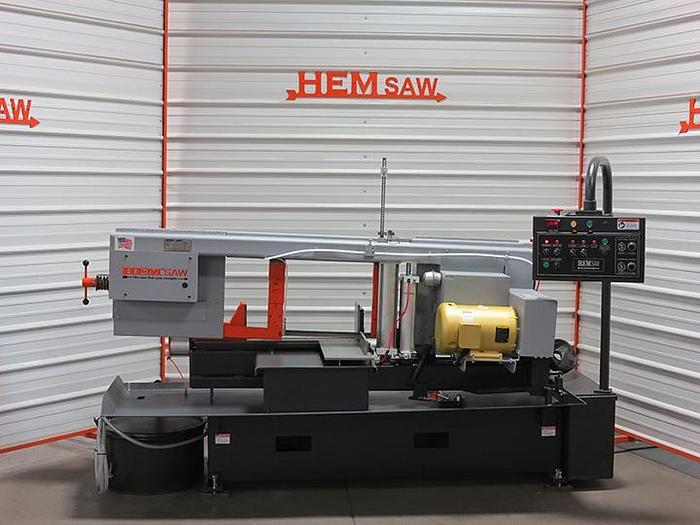

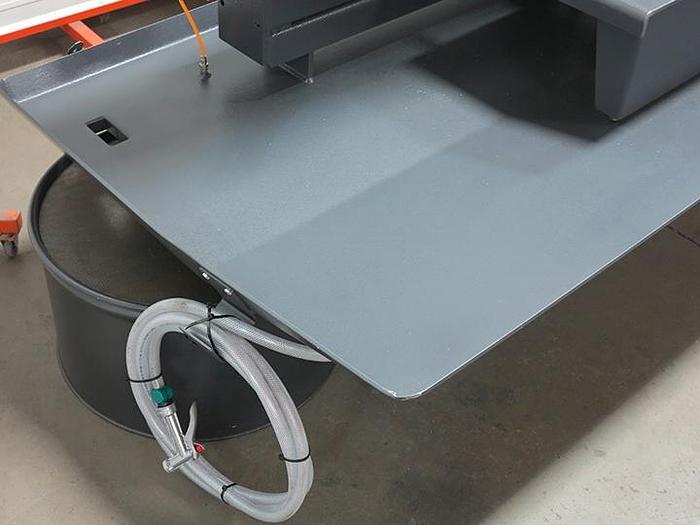

The Cyclone M miters to 60ᵒ one direction, is ideal for cutting solids and structural shapes with a 1¼” blade and 7½ HP motor. The control console, mounted on a swing arm, allows semi-automatic sawing and adjustment of Cutting Force, Adjustable Clamping Pressure, and push button Blade Speed. Easy View Console - Semi-Automatic Control 18" Discharge Support Vise - Adjustable Main Adjustable Clamping Force Hold Down Fixture Guide Arm - Manual Adjustment Variable Blade Speed w/ LED Readout Carbide Blade Guides Manual Blade Tension Adjustable Feed Rate Adjustable Cutting Pressure Coolant System - Flood w/ Wash-Down Hose Blade Brush Broken Blade Function Safety Guards 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator) Top Clamp - Reduced Capacity Main Vise 24" Roller Load Table Full Width Discharge Plate Laser Light System Air Powered Blade Tension Light Clamping Pressure Spray Mist Lubrication 5' Idle Roller Stock Table 10' Idle Roller Stock Table Single-Phase Voltage
Specifications
Manufacturer | HE&M |
Condition | New |

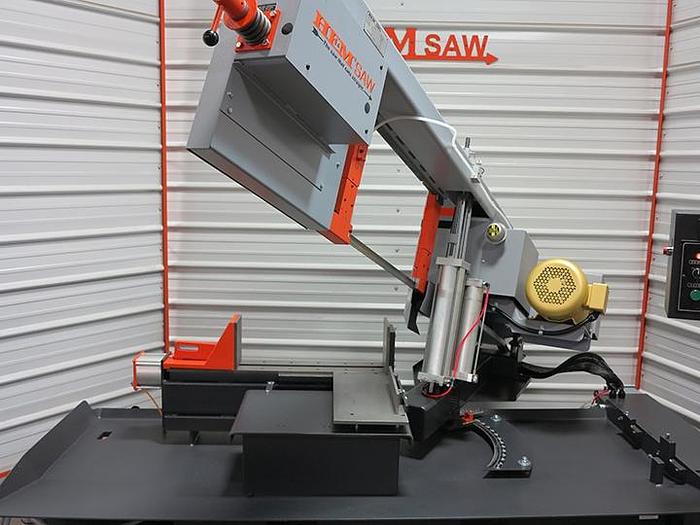

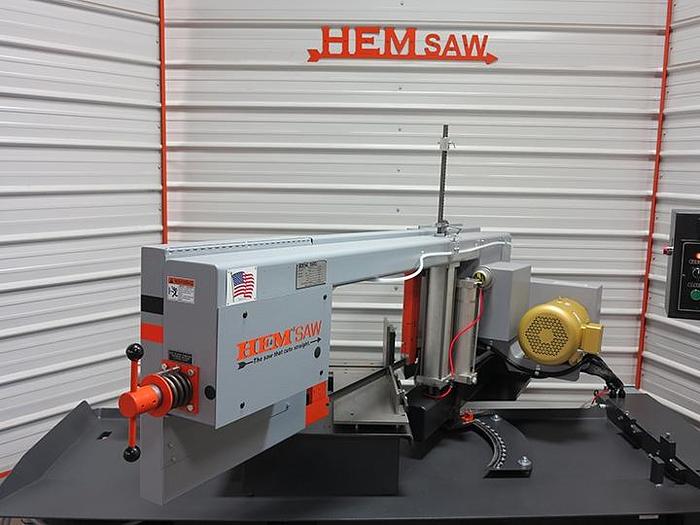

Main Capacity | 0-22" W x 0-16" H |
Bar-feed | N/A |
Blade | 16' 0" L x 1.25" H x .042" |

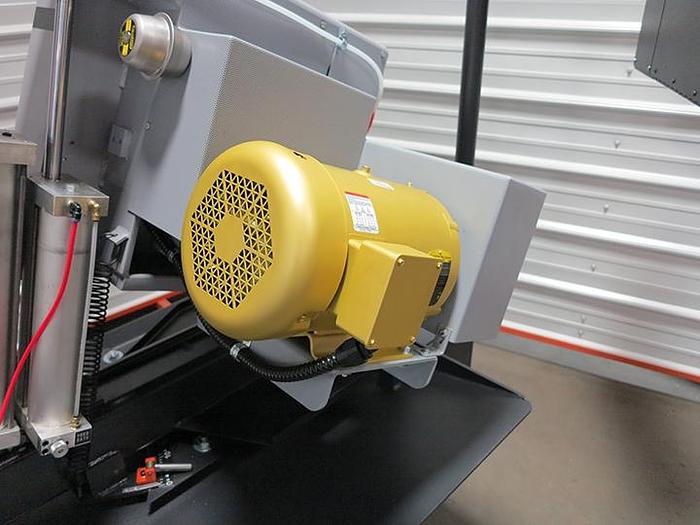

Motor | 7.5 HP |
Hydraulic Motor | N/A |
Operation | Semi-Automatic |
Rectangular Capacity | 0-22" W x 0-16" H |
Operation Type | Semi-Automatic |
Power Source | Air |
Weight | N/A |
Blade Type | Bandsaw |
Blade Size | 16' 0" L x 1.25" H x .042" |
Bandsaw Blade Speed | N/A |
Bundle Cut? | Yes |
Horizontal Pivot Band Saws | Cyclone M |
