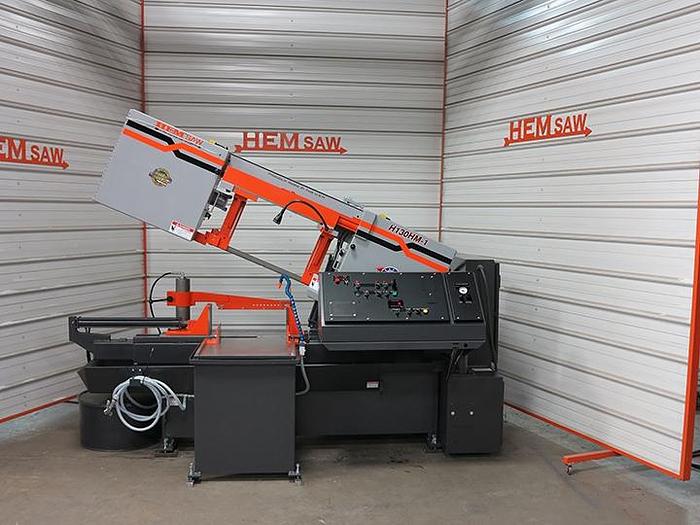

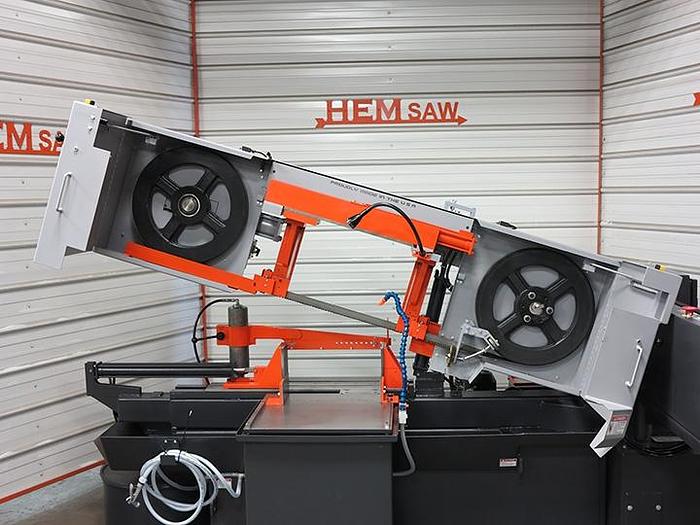

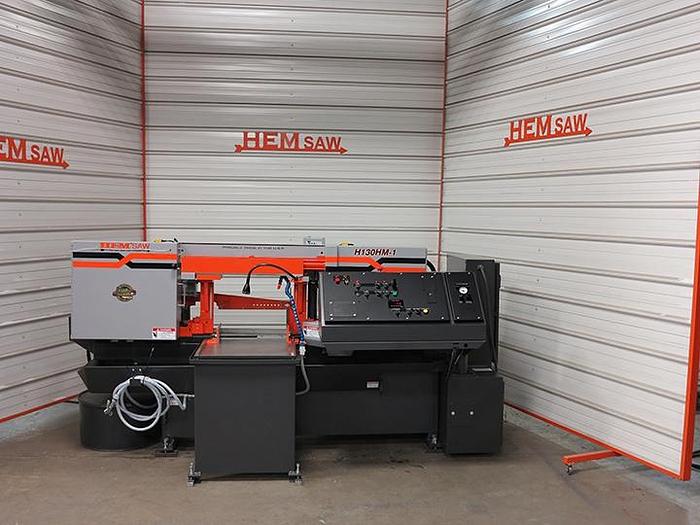

HE&M Saw H130M
HE&M Saw H130M
Description

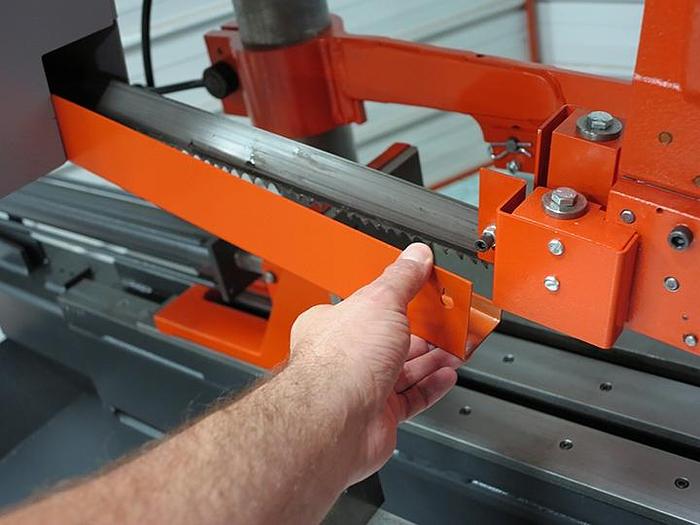

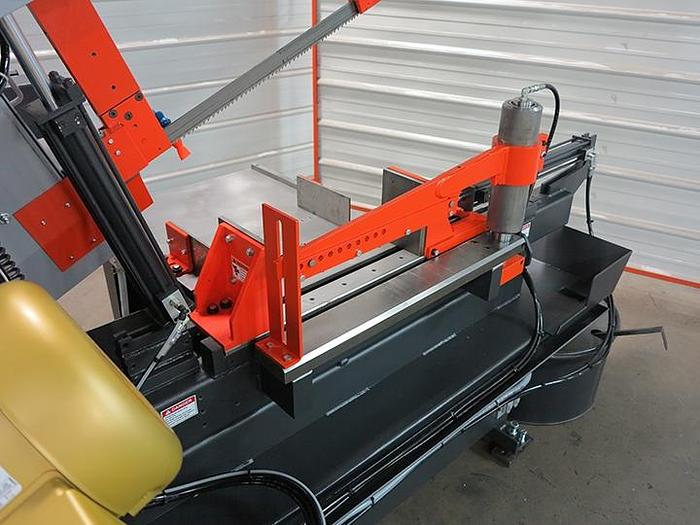

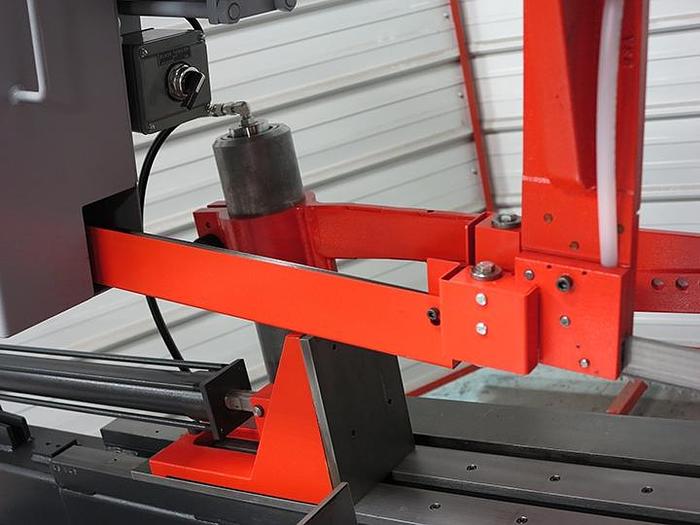

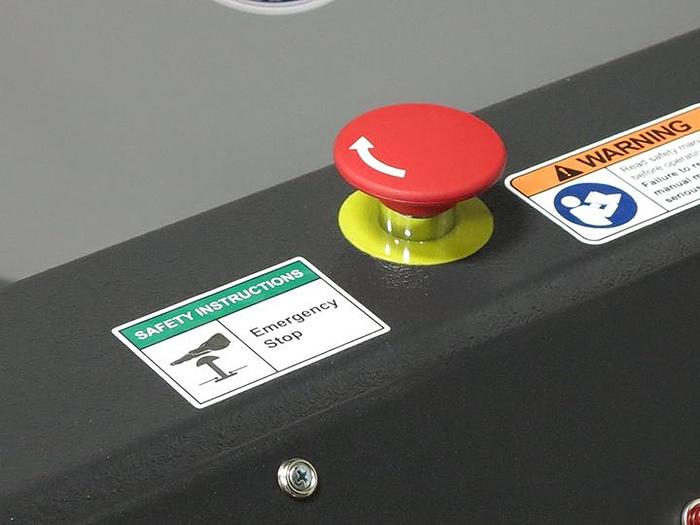

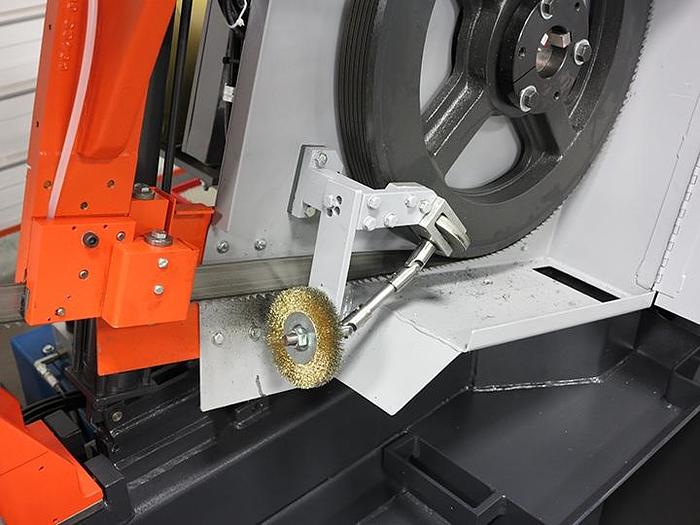

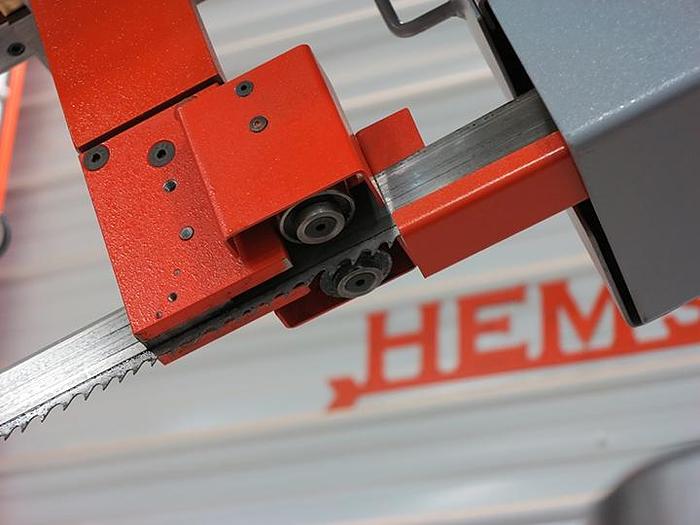

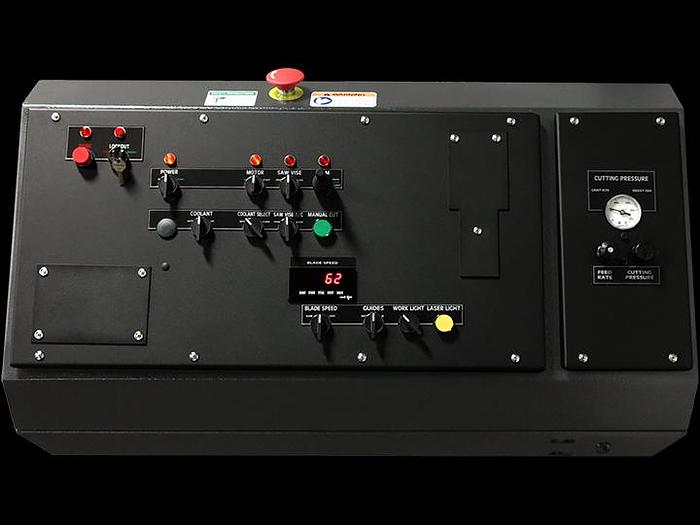

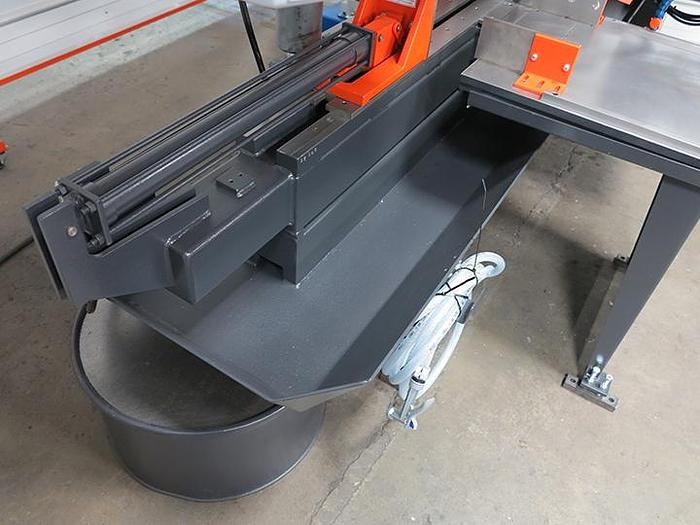

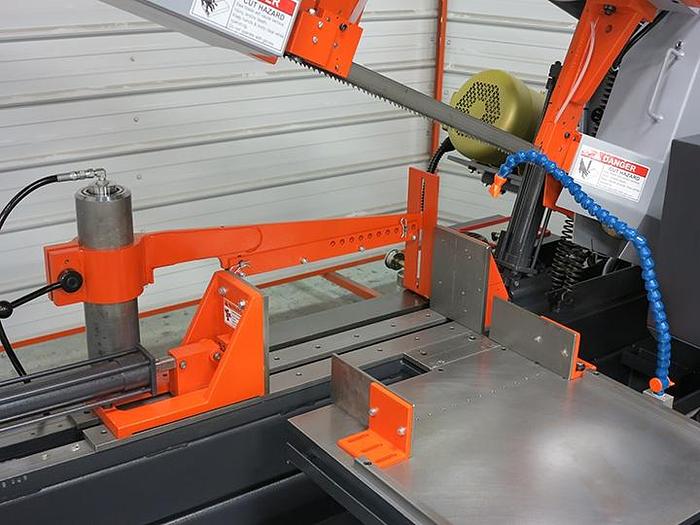

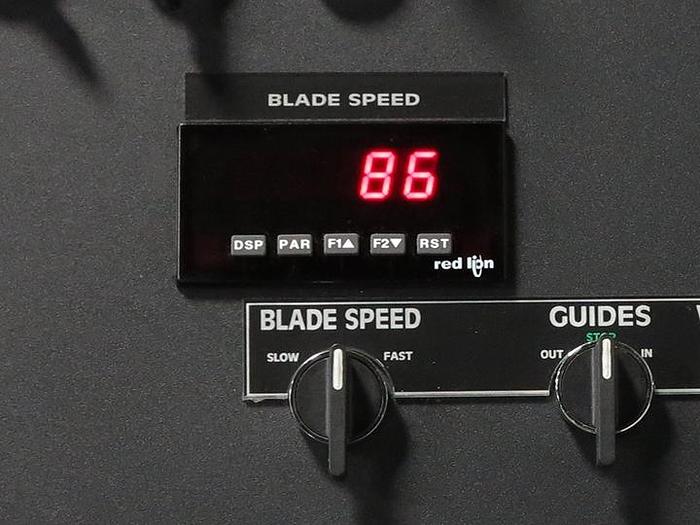

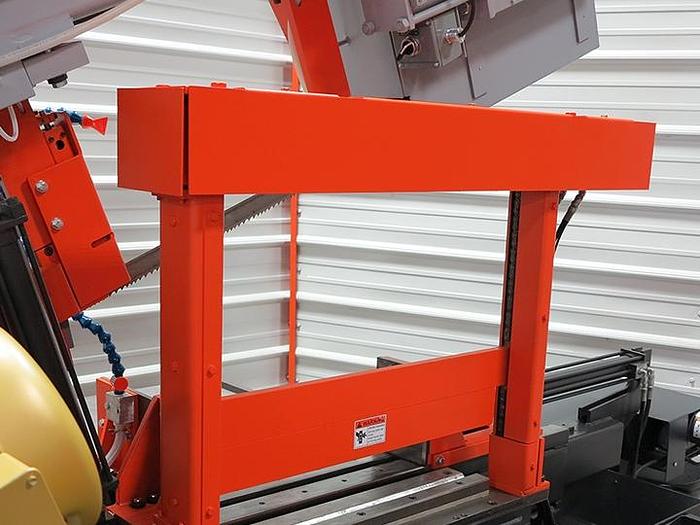

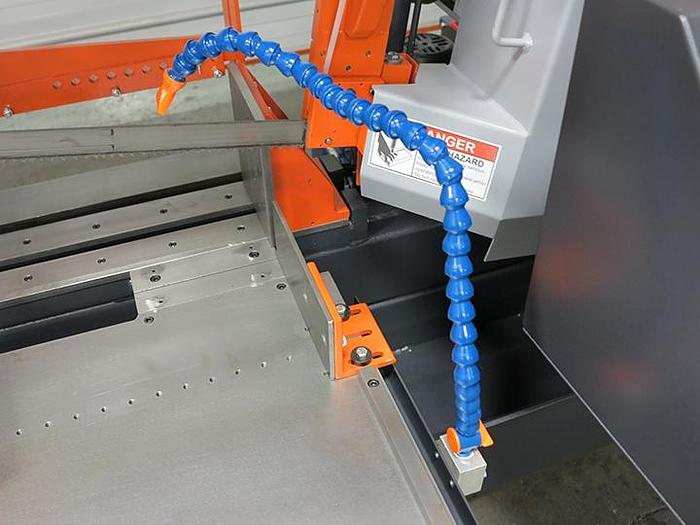

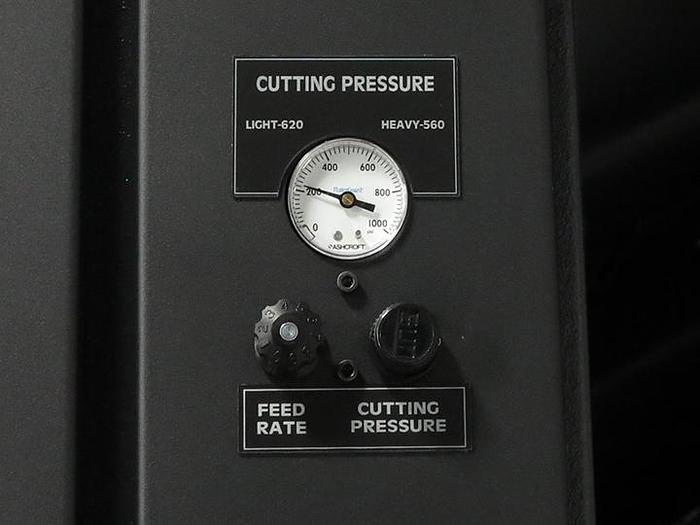

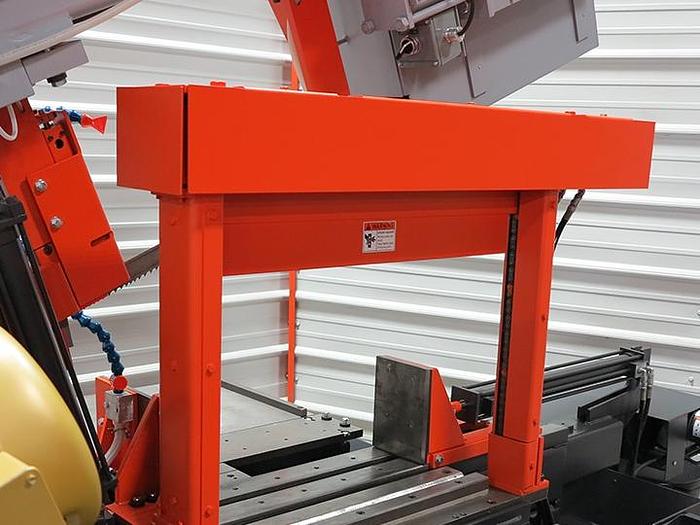

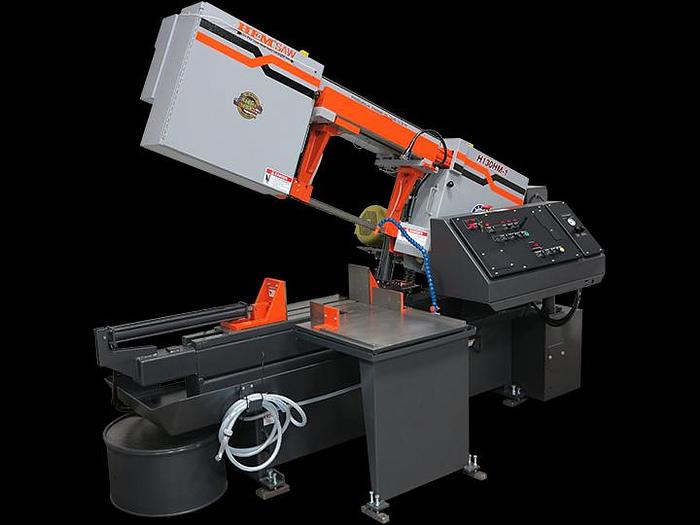

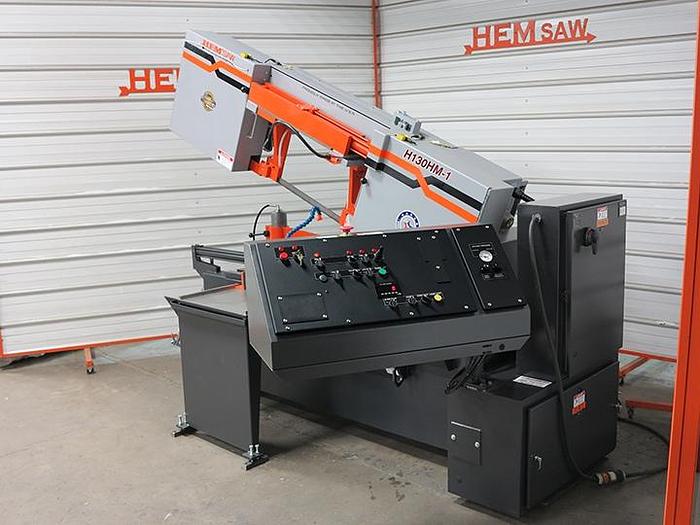

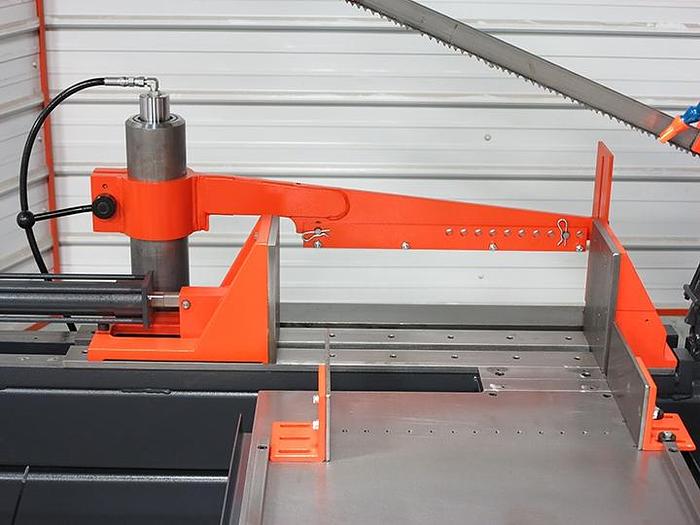

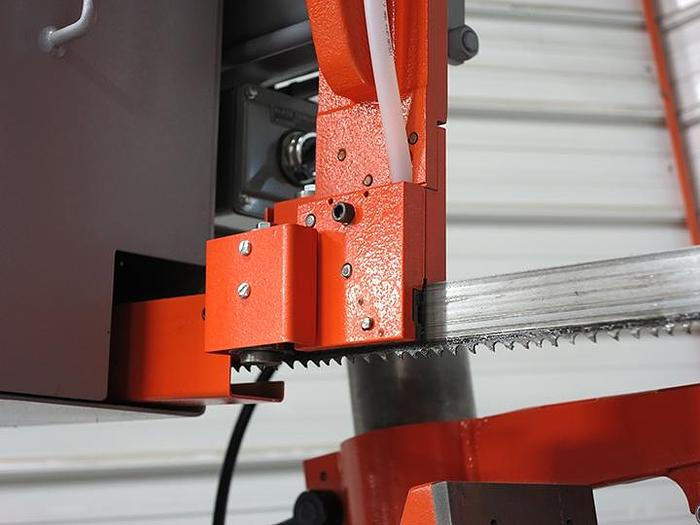

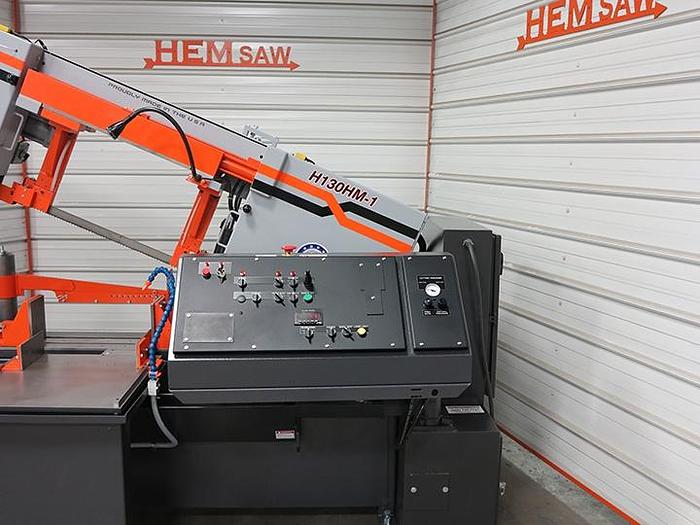

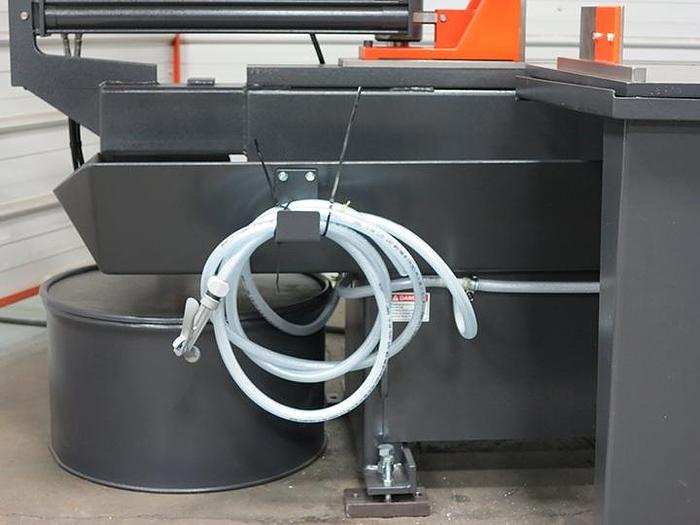

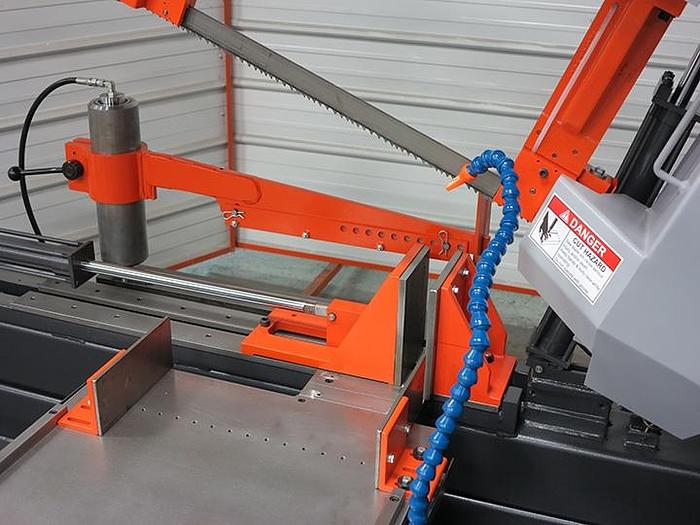

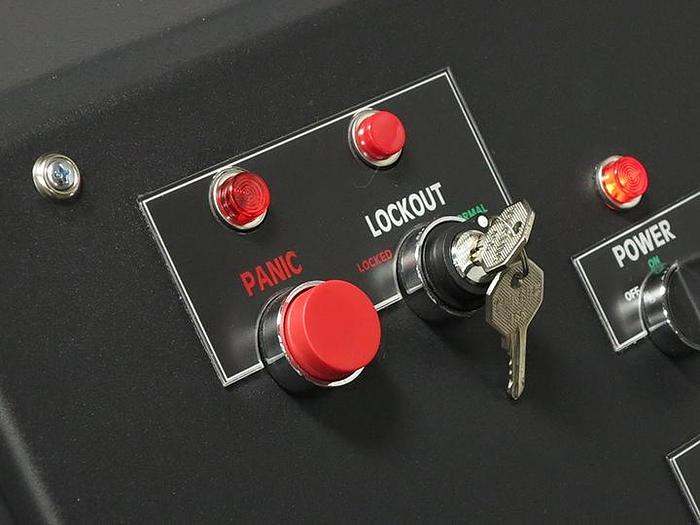

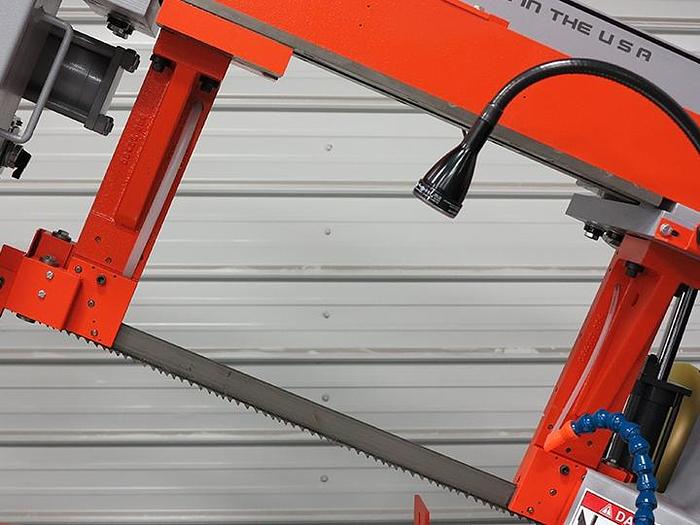

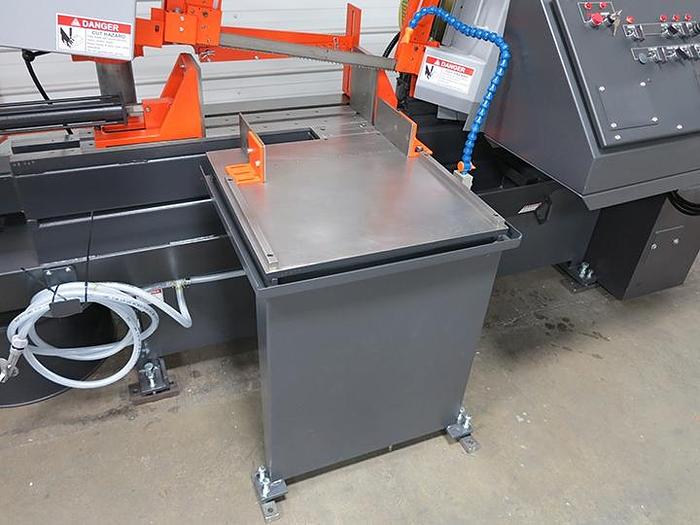

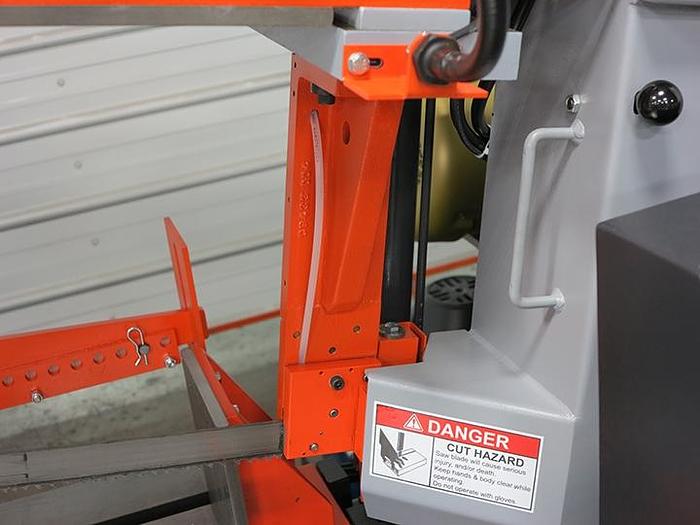

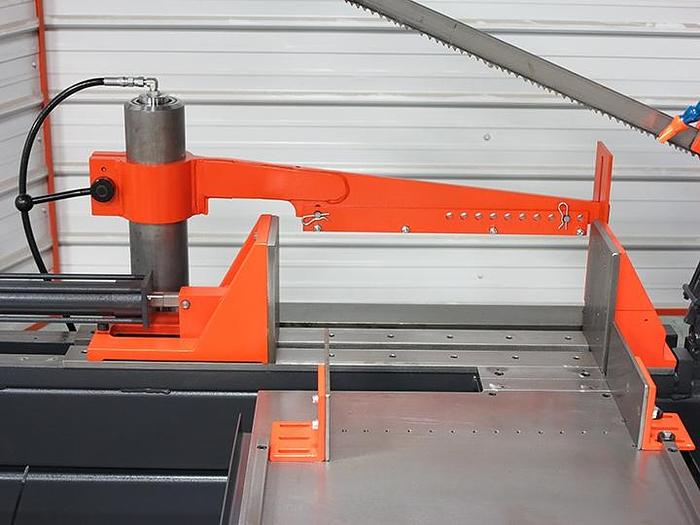

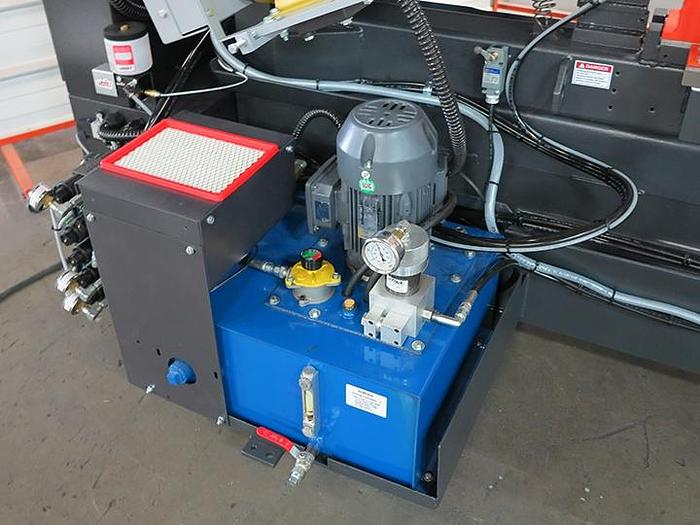

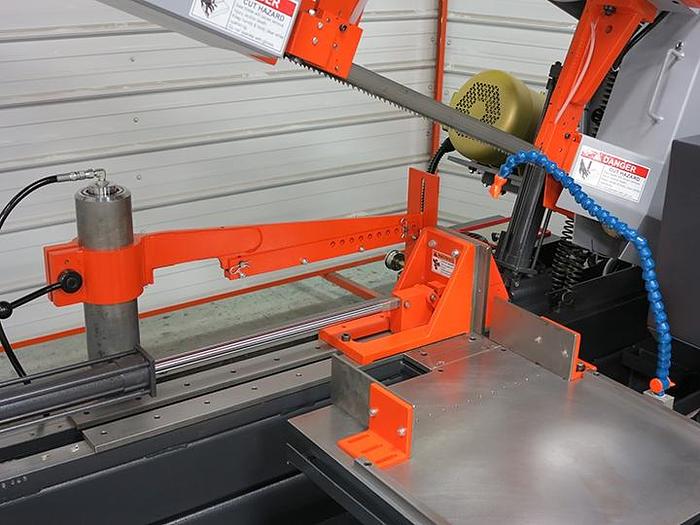

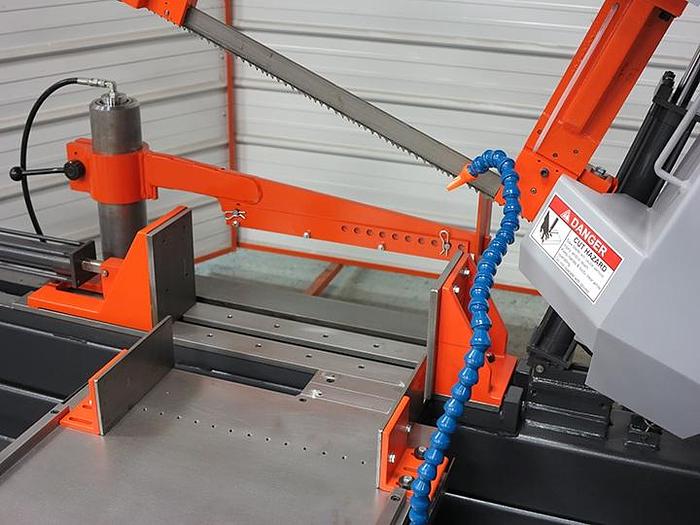

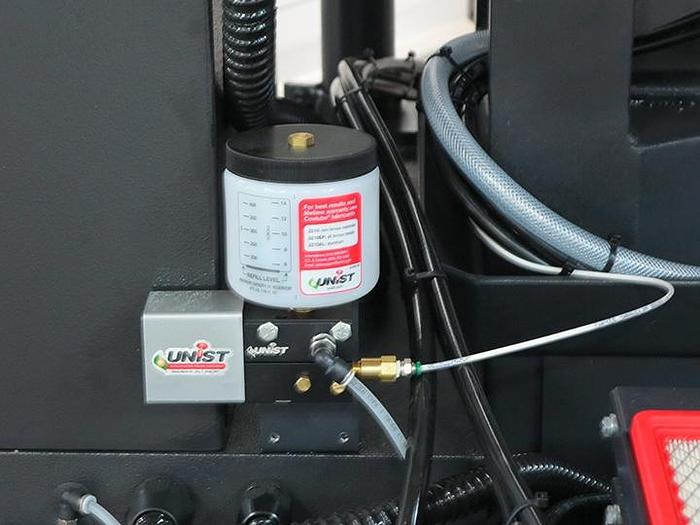

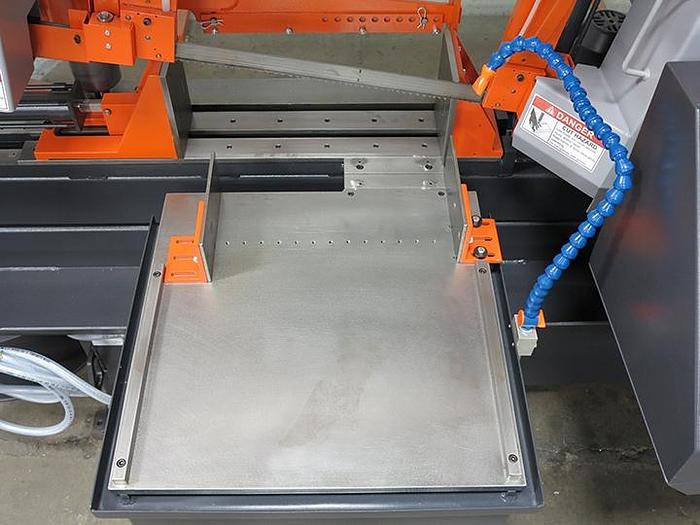

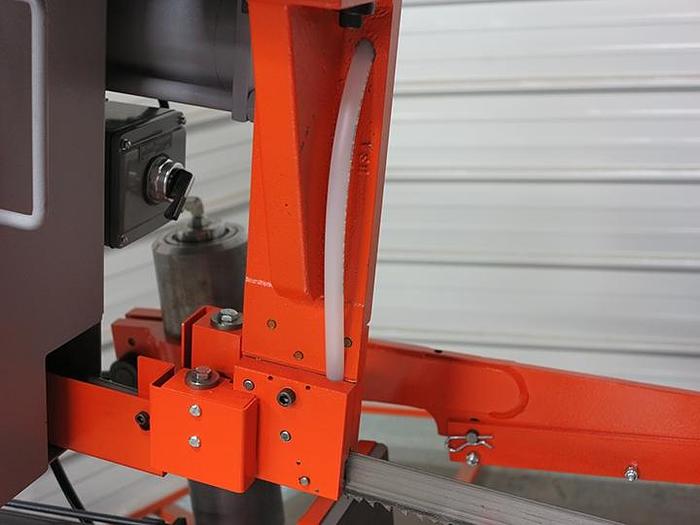

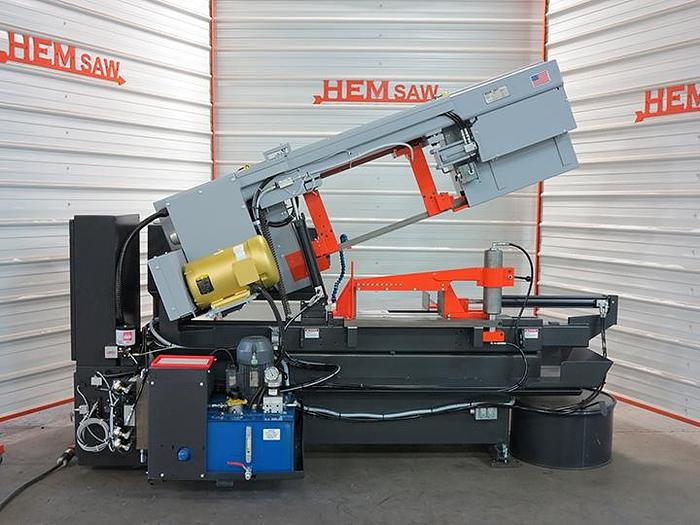

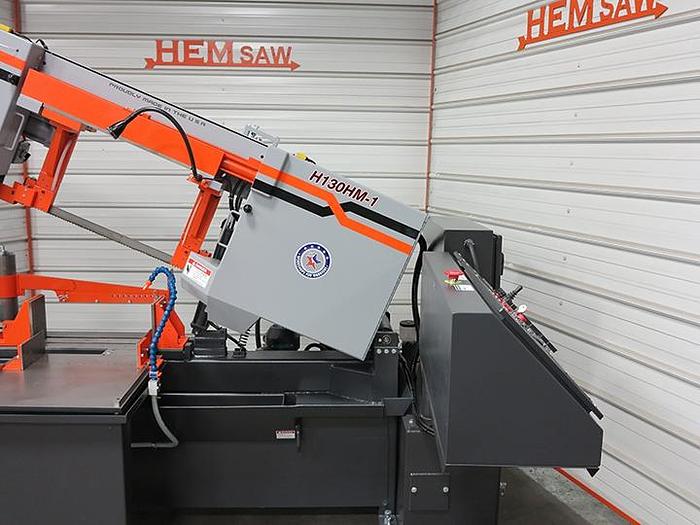

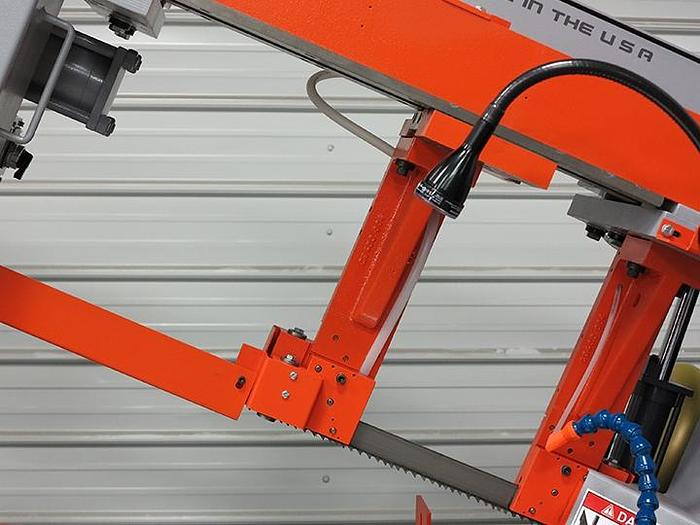

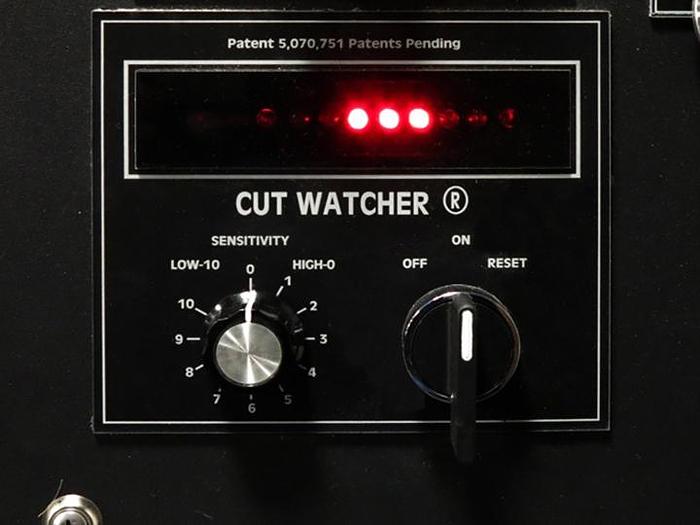

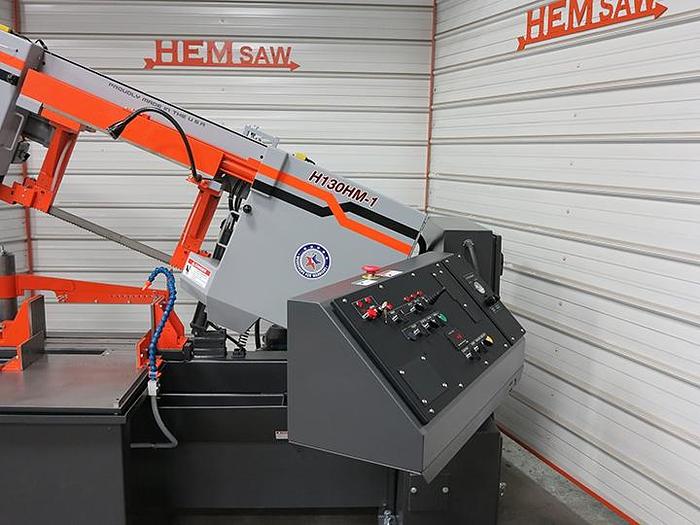

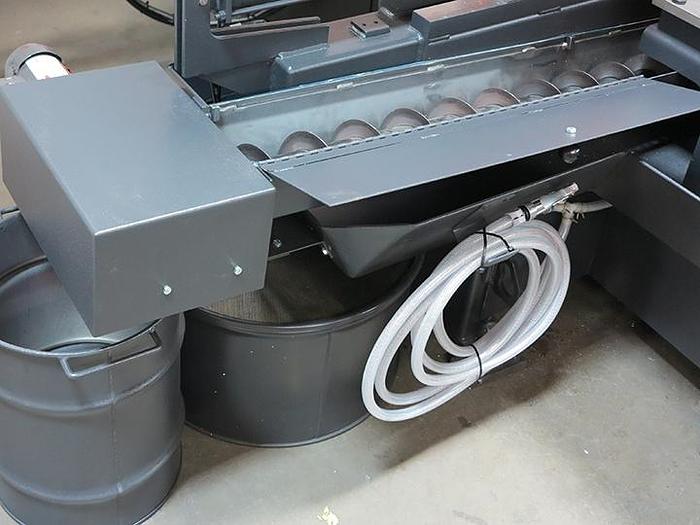

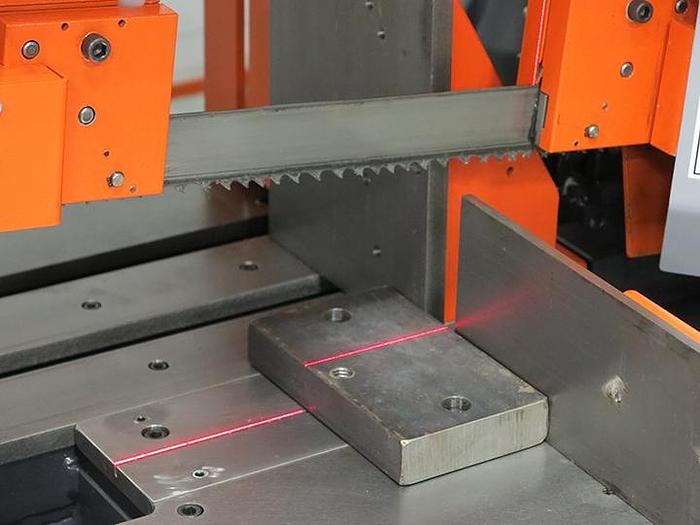

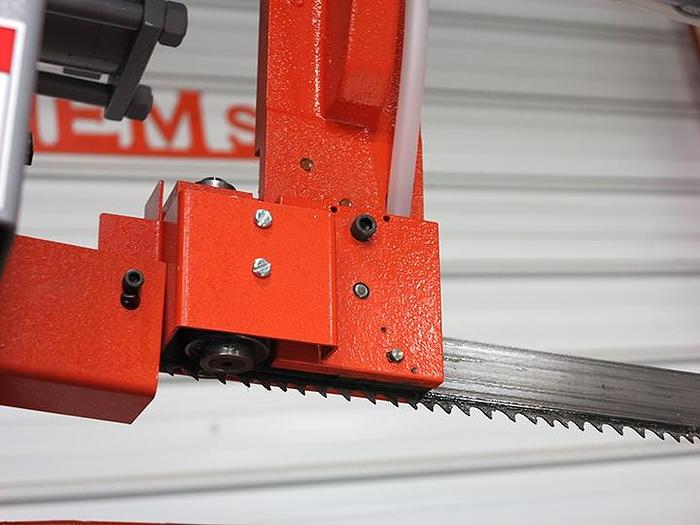

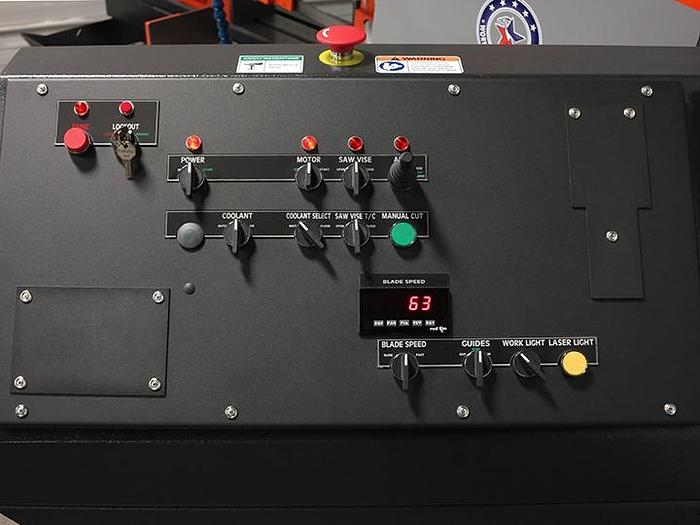

The H130M is a rugged band saw and cuts using a 1½” blade driven by a 10 HP motor. A 2 HP hydraulic motor powers the adjustable pressure full-stroking vise, the powered guide arm, and powered blade tension. Many options are also available. Swing-Away Control Console w/ 7" Touch Screen 24" Solid Discharge Table - Bolts to Saw Vise - Full Stroking Main Adjustable Clamping Force Carbide Blade Guides Roller Guides - Entry & Exit Guide Arm - Powered Variable Blade Speed w/ Readout on Touch Screen Powered Blade Tension Adjustable Feed Rate Adjustable Cutting Pressure Coolant System - Flood w/ Wash-Down Hose Blade Brush Broken Blade Function Two-Hand Operation Controls Blade Change Interlock Safety Guards 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine Top Clamp - Full Capacity Main Vise Vise - Outboard Powered on Discharge Passive "Cut Watcher®" System Laser Light System Chip/Swarf Removal System - Chip Auger Pedestal Mounted Control Console Roll-Around Control Console Spray Mist Lubrication Cold Weather Package Hydraulic Tank Heater 5' Idle Roller Stock Table 10' Idle Roller Stock Table
Specifications
Manufacturer | HE&M |
Condition | New |
Main Capacity | 0-19" W x 0-10" H |
Bar-feed | N/A |
Blade | 17' 0" L x 1.5" H x .050" |

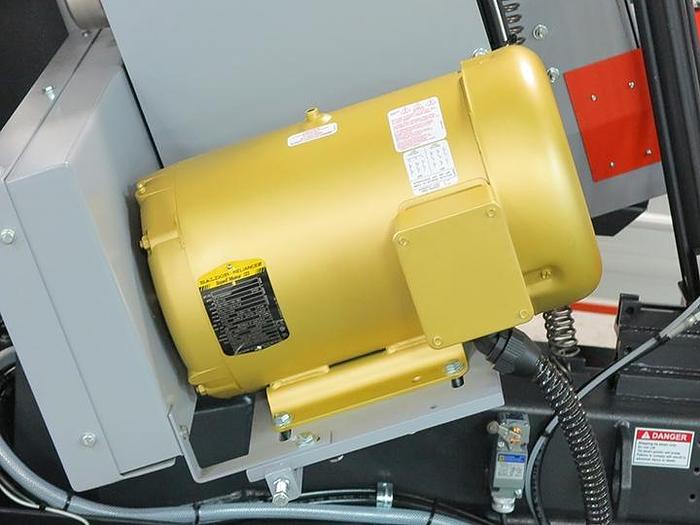

Motor | 10 HP |
Hydraulic Motor | 2 HP |
Operation | Semi-Automatic |
Rectangular Capacity | 0-19" W x 0-10" H |
Square Capacity | 0-16" (Square) |
Round Capacity | 0-16" (Diameter) |
Operation Type | Semi-Automatic |
Power Source | Hydraulic |
Weight | N/A |
Blade Type | Bandsaw |
Blade Size | 17' 0" L x 1.5" H x .050" |
Bandsaw Blade Speed | N/A |
Bundle Cut? | Yes |
Horizontal Pivot Band Saws | H130M |
