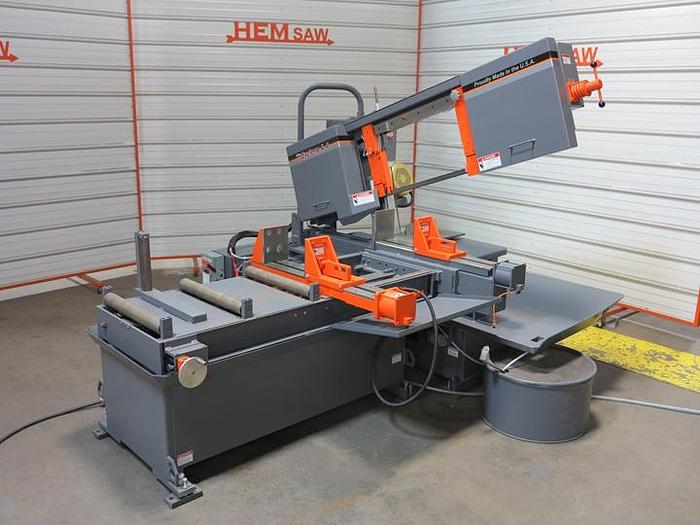

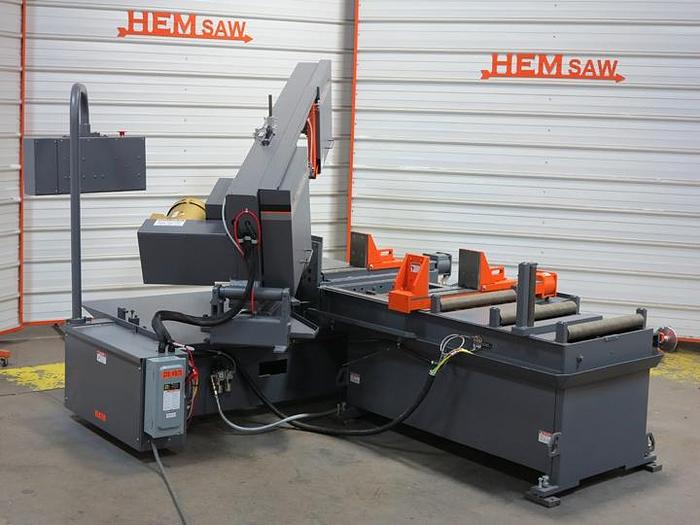

HE&M Saw Cyclone A-4
HE&M Saw Cyclone A-4
Description

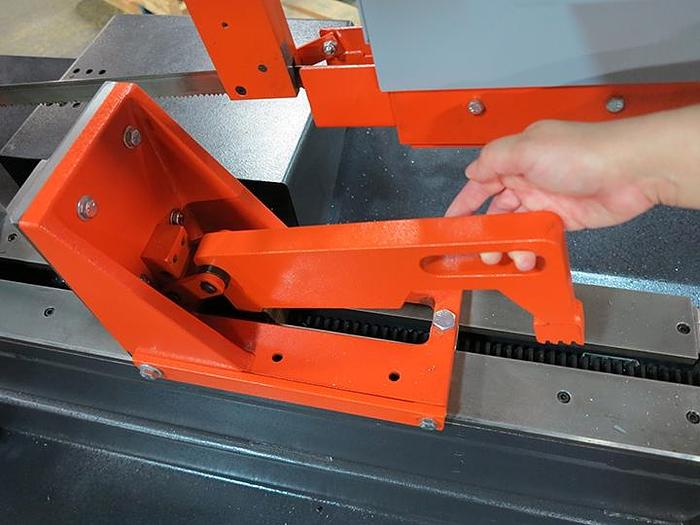

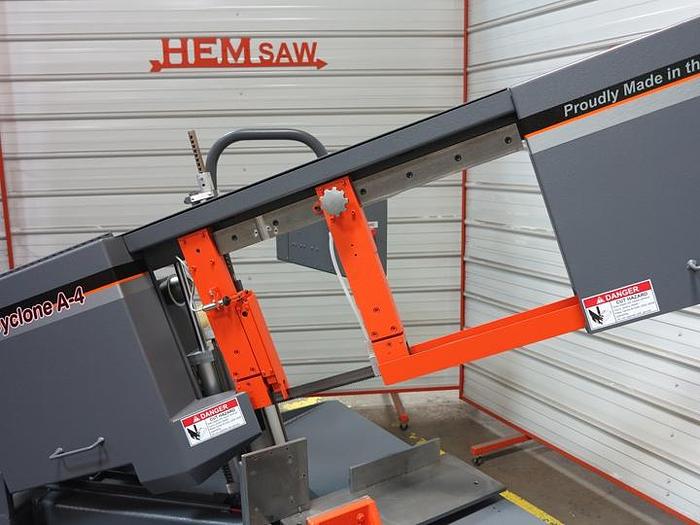

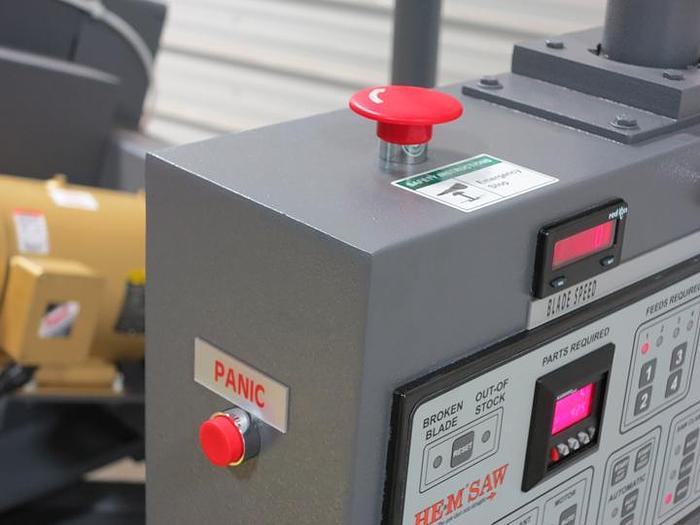

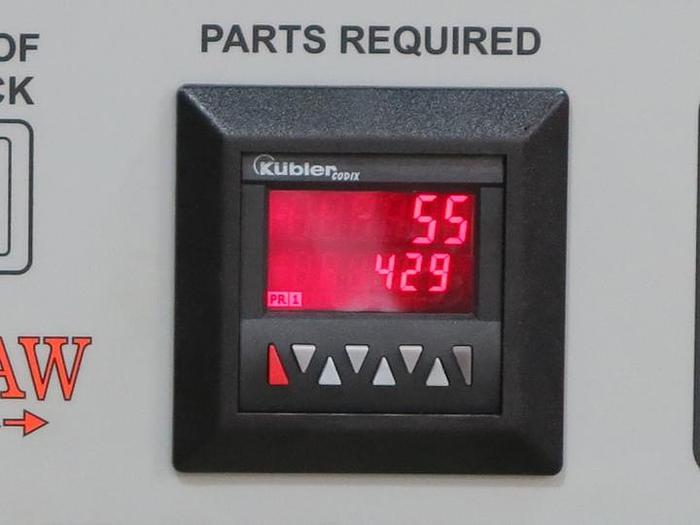

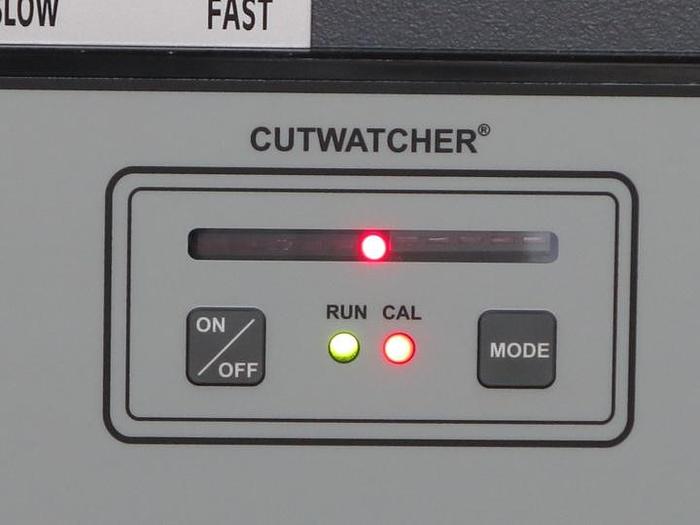

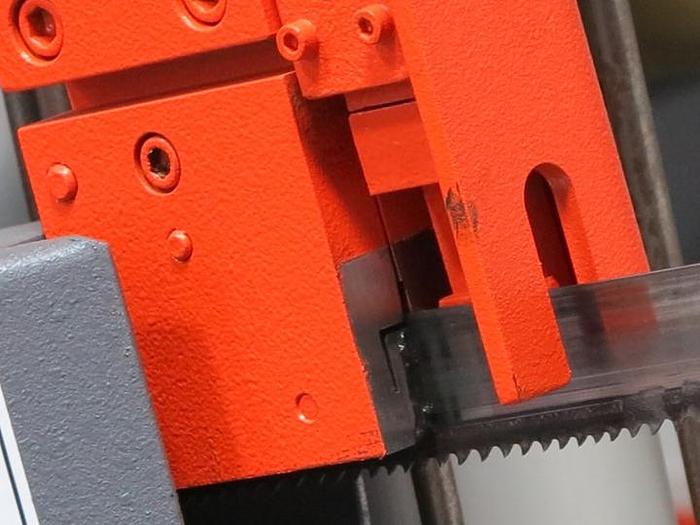

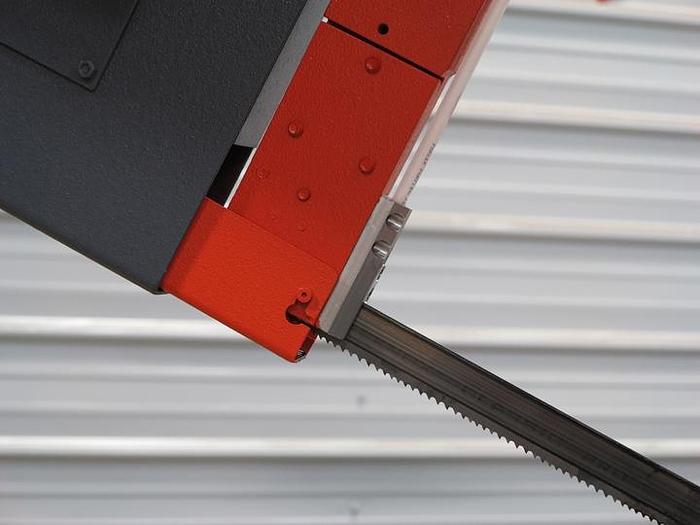

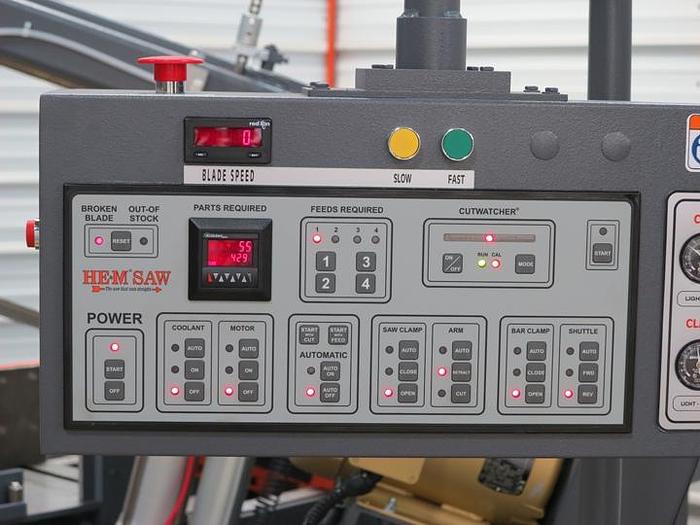

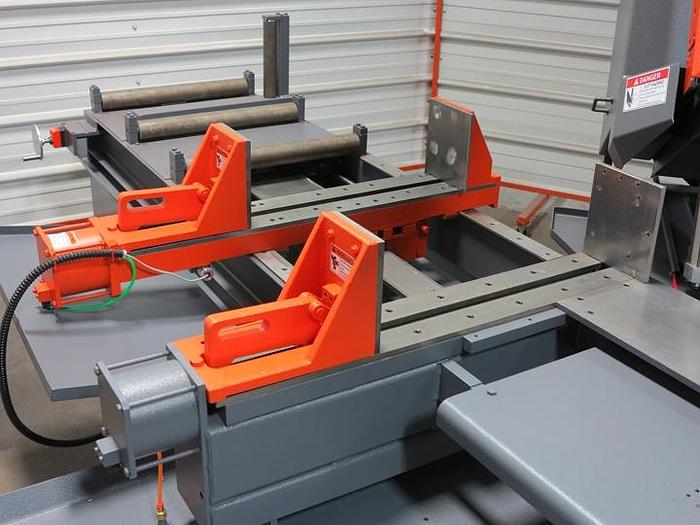

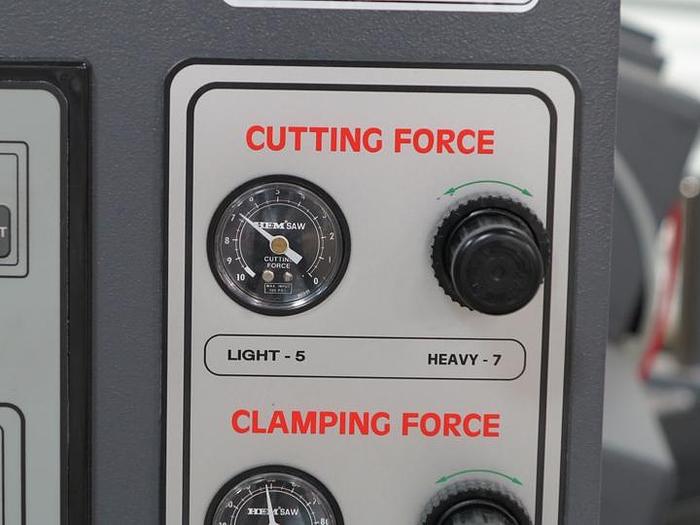

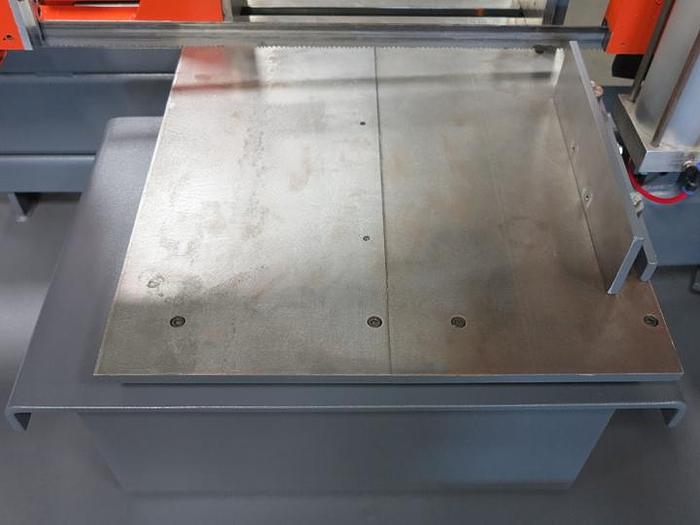

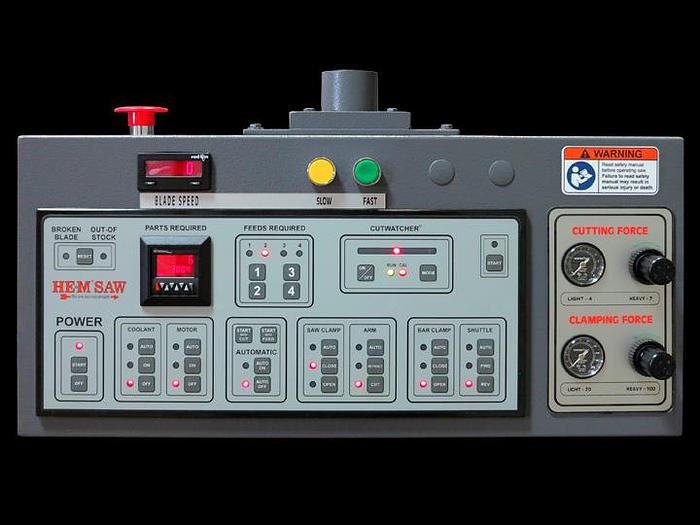

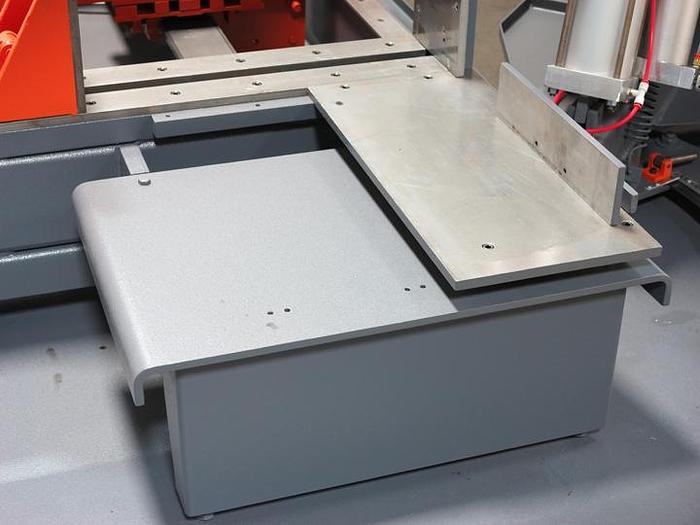

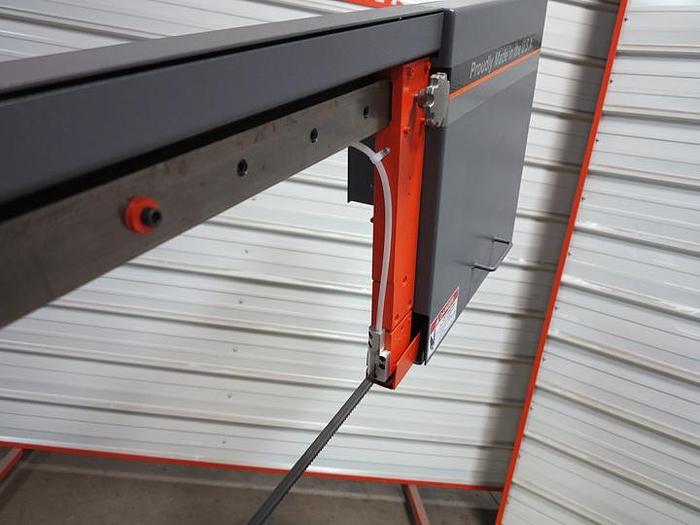

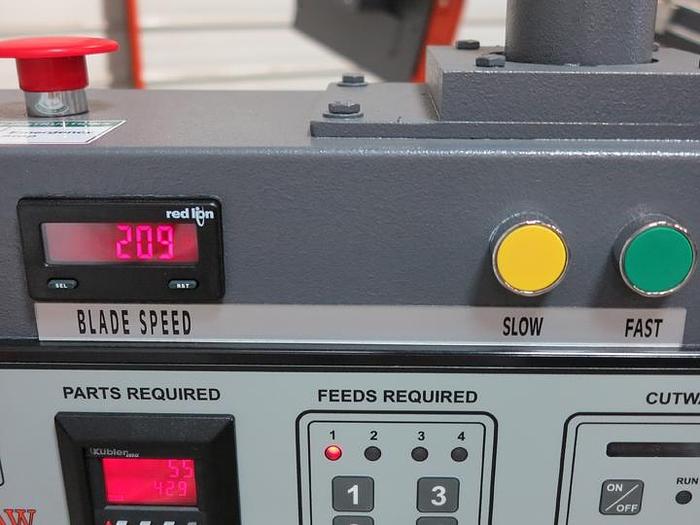

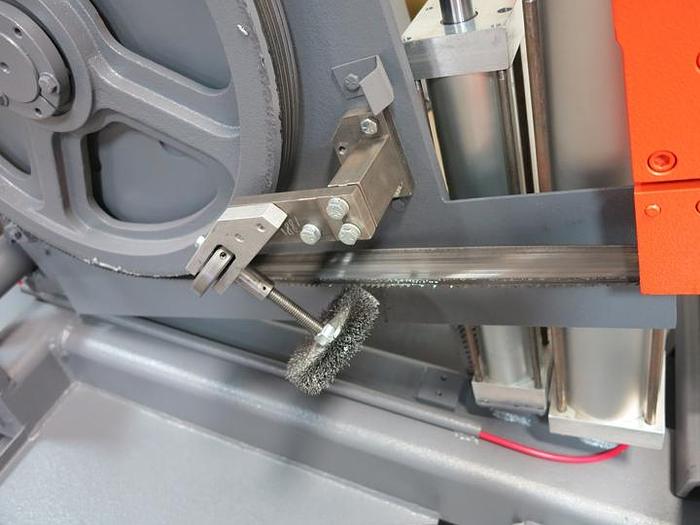

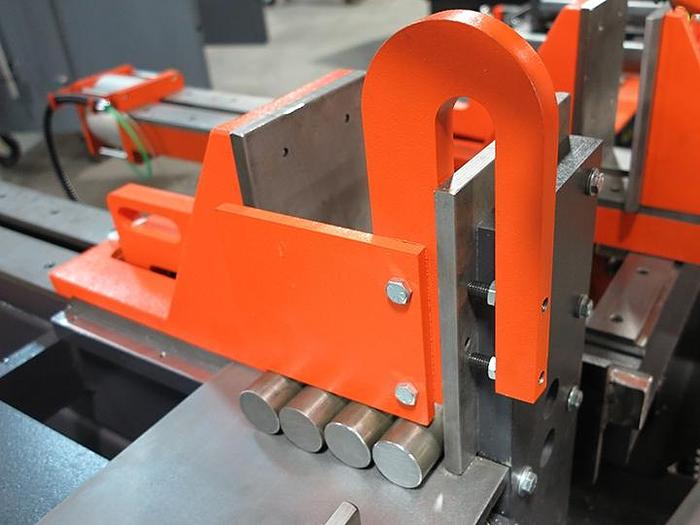

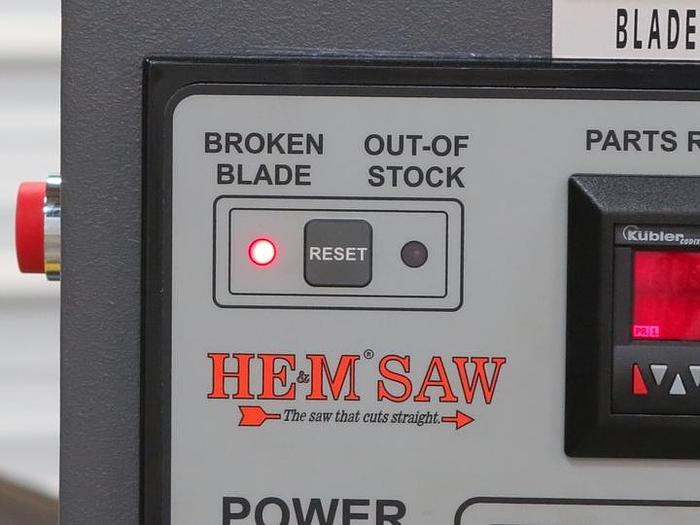

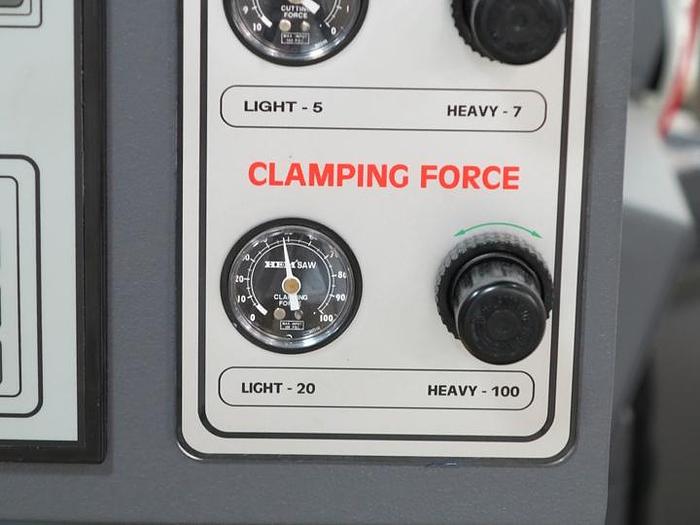

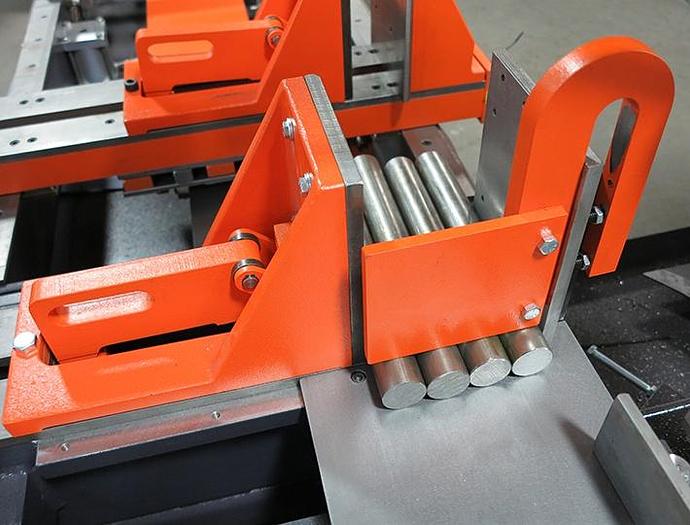

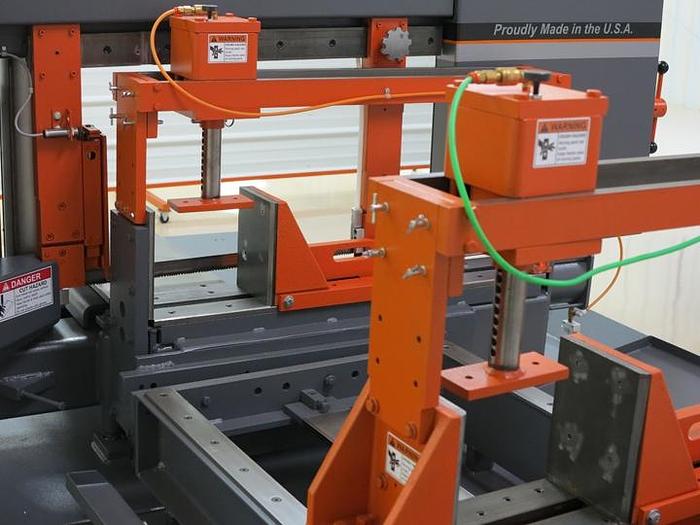

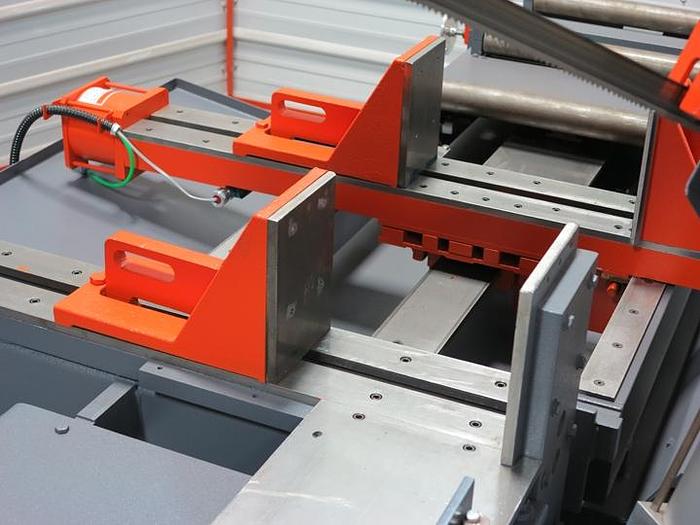

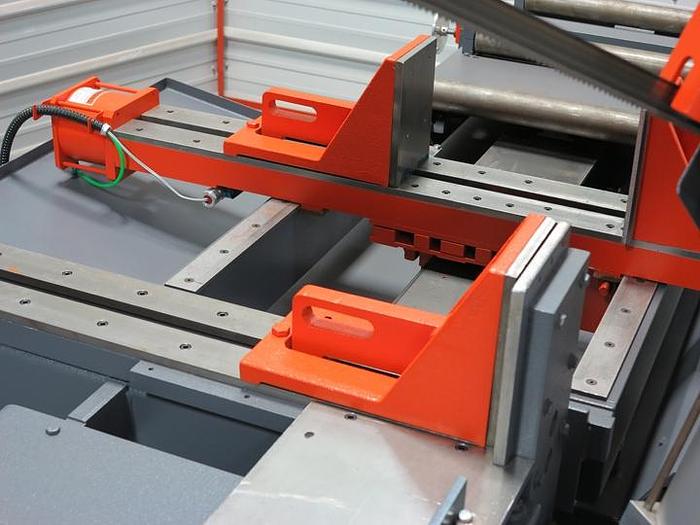

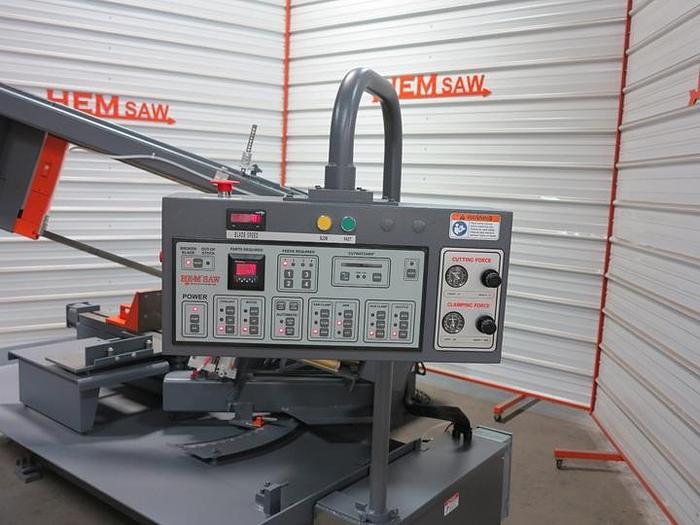

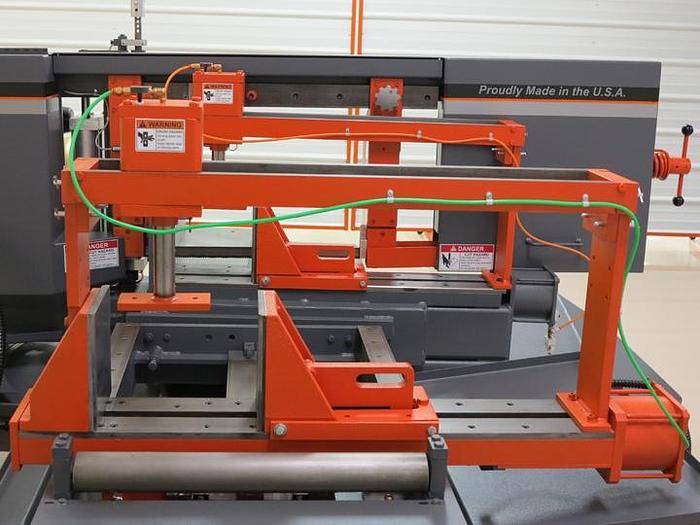

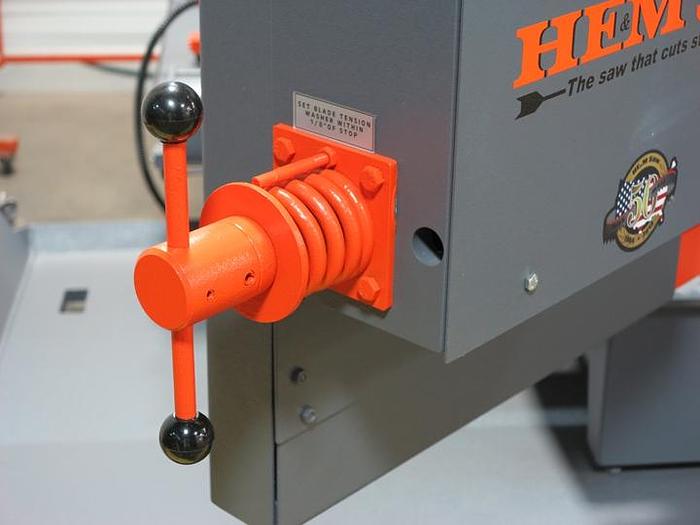

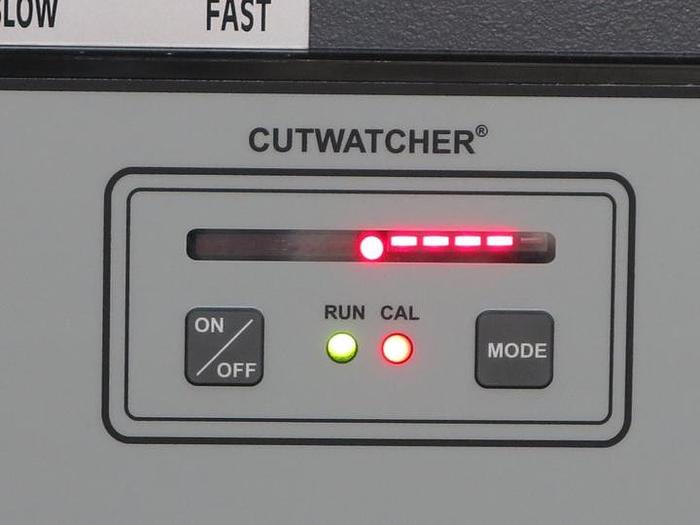

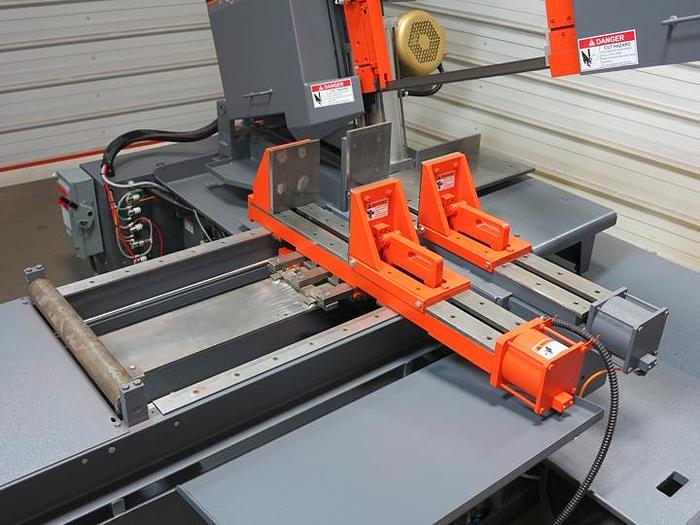

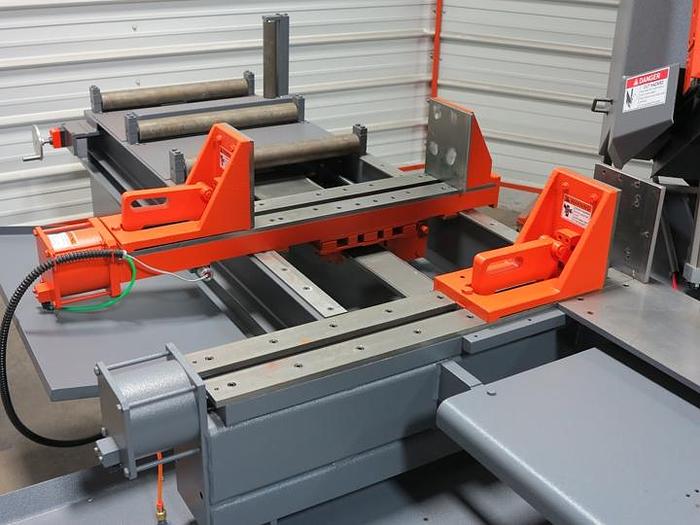

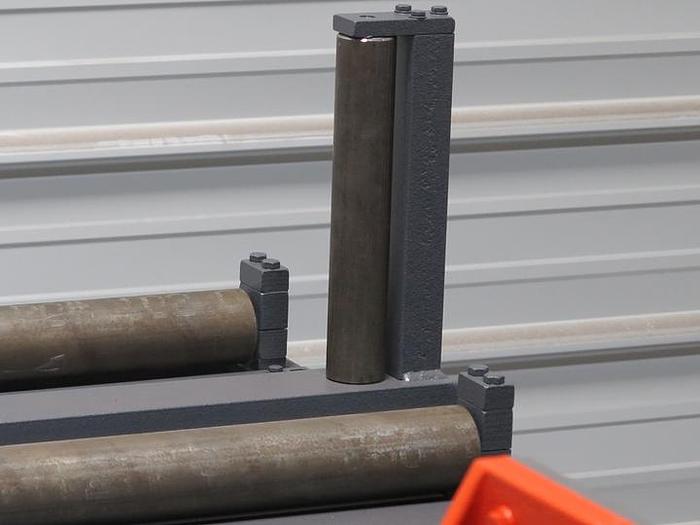

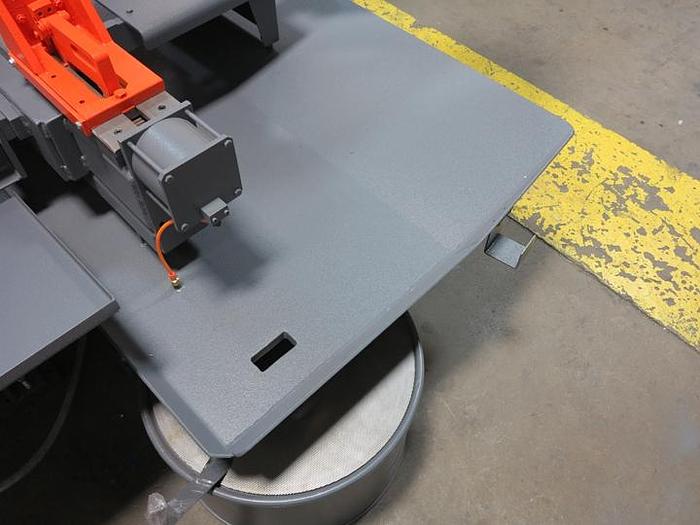

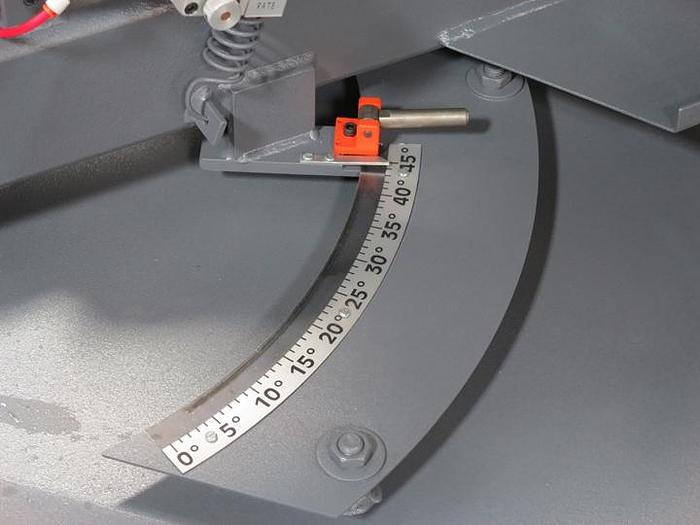

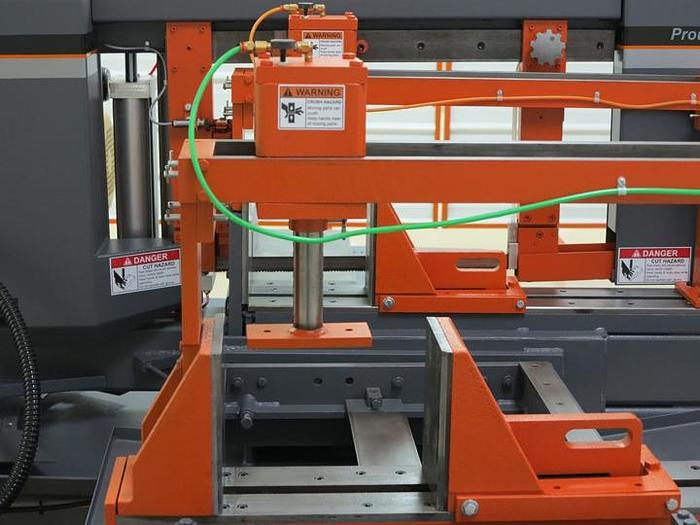

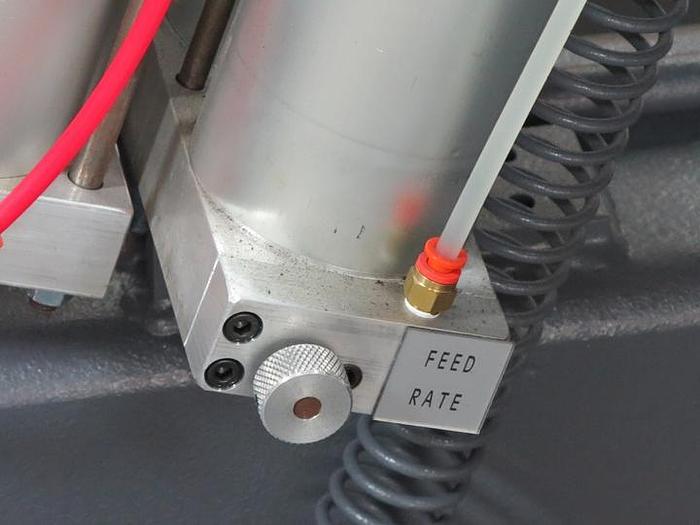

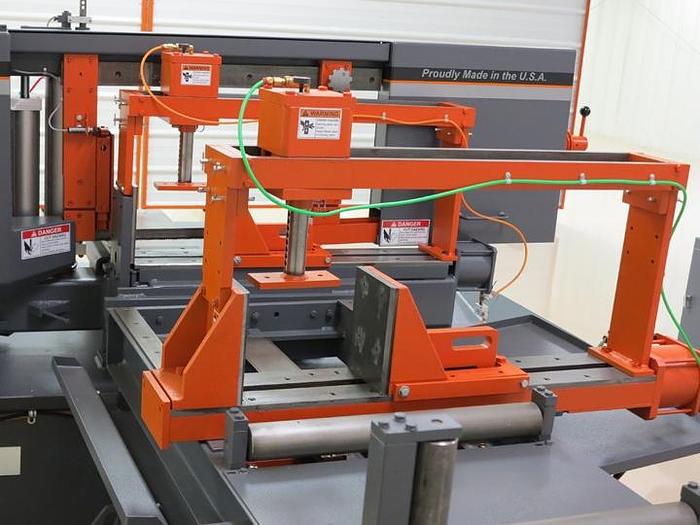

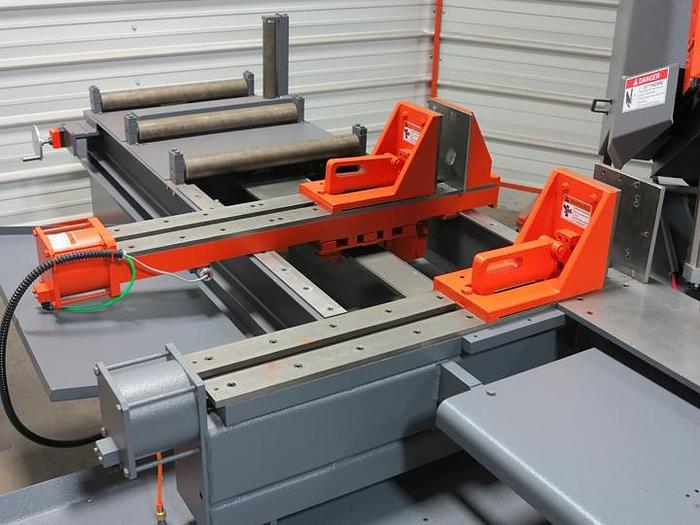

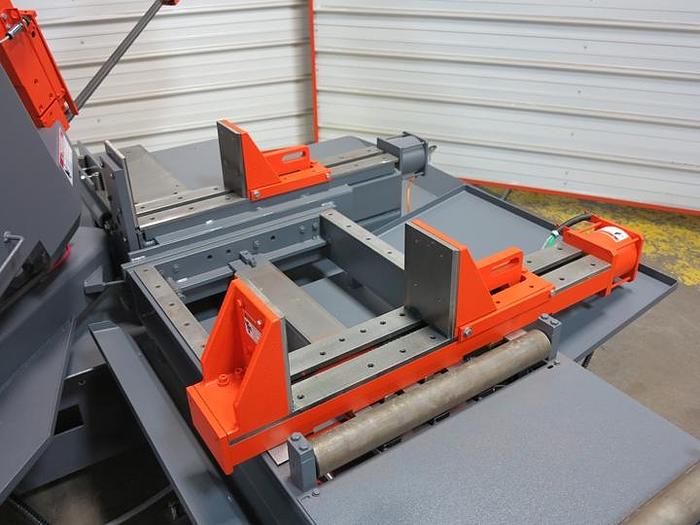

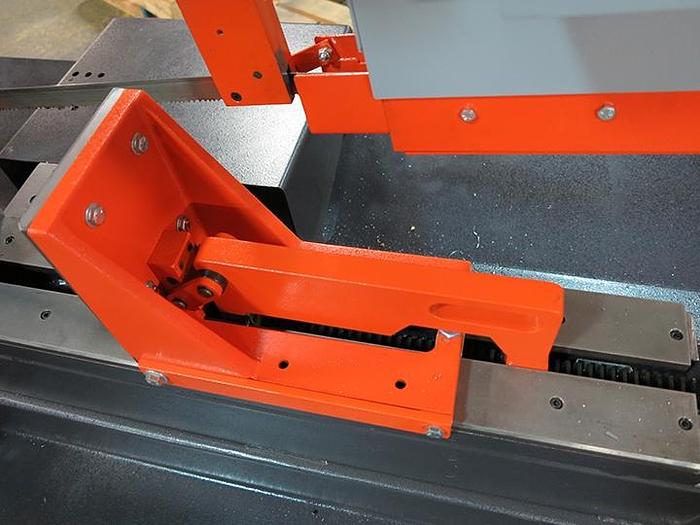

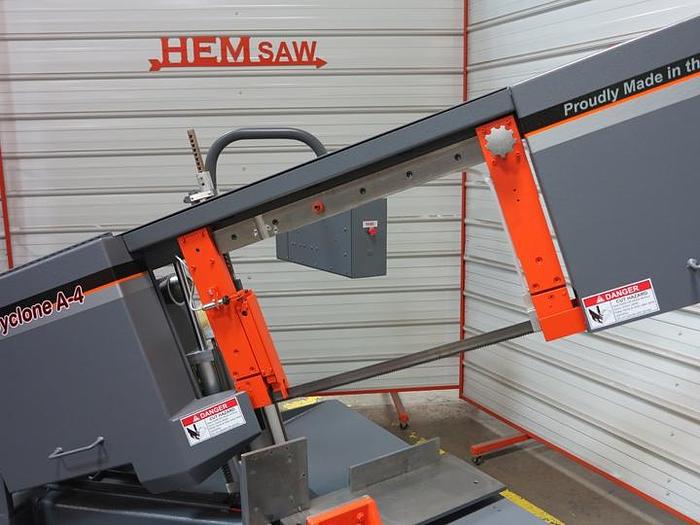

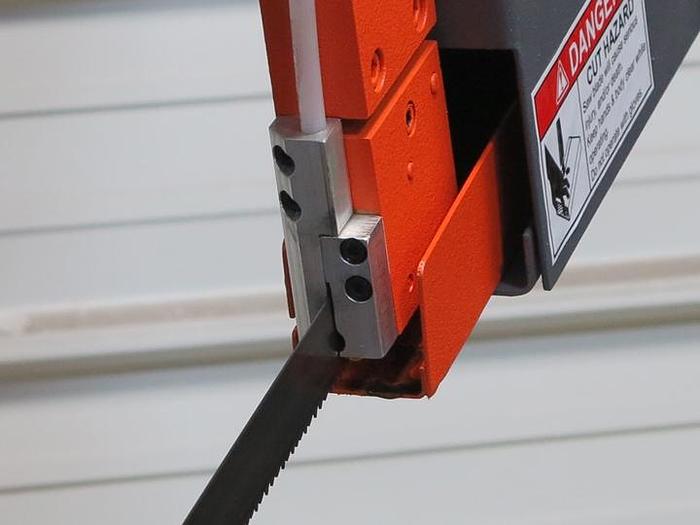

The Cyclone A-4 makes cutting 45ᵒ miter cuts in one direction perfect for cutting small solids and shapes. With a 24” indexing bar-feed and up to 4 indexes, cutting multiple parts in longer than 24” in automatic mode is possible. A variety of options are also available. Easy View Console - All Function Control 18" Discharge Support Vise - Adjustable Main & Feed Adjustable Clamping Force 2 Hold Down Fixtures Vertical Alignment Bar on Bar-Feed Guide Arm - Manual Adjustment Passive "Cut Watcher®" System Variable Blade Speed w/ LED Readout Carbide Blade Guides Manual Blade Tension Adjustable Feed Rate Adjustable Cutting Pressure Coolant System - Flood w/ Wash-Down Hose Blade Brush Broken Blade Function Out-of-Stock Function Safety Guards 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator) Top Clamp - Reduced Capacity Main Vise Top Clamp - Reduced Capacity Feed Vise Full Width Discharge Plate Vise - 3rd on Feed 60° Miter Capability (Manual Cut Only) Laser Light System Powered Blade Tension Light Clamping Pressure Spray Mist Lubrication 5' Idle Roller Stock Table Single-Phase Voltage 10' Idle Roller Stock Table
Specifications
Manufacturer | HE&M |
Condition | New |
Main Capacity | 0-22" W x 0-16" H |

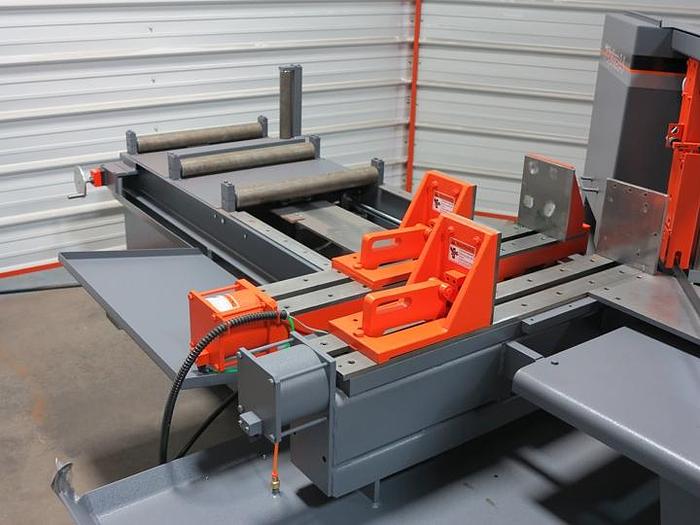

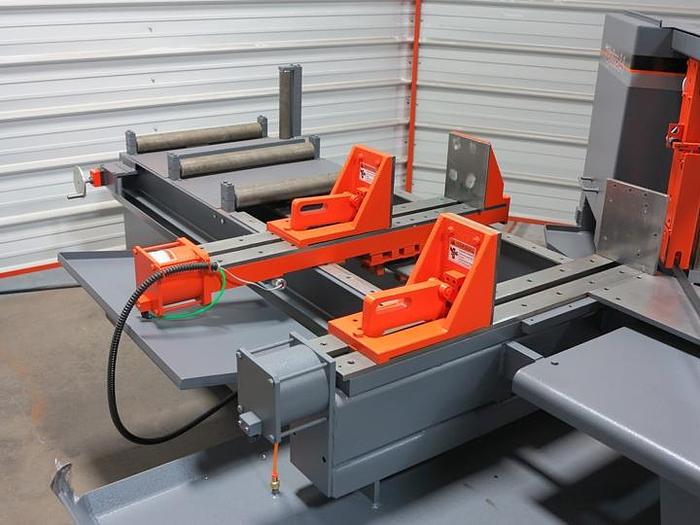

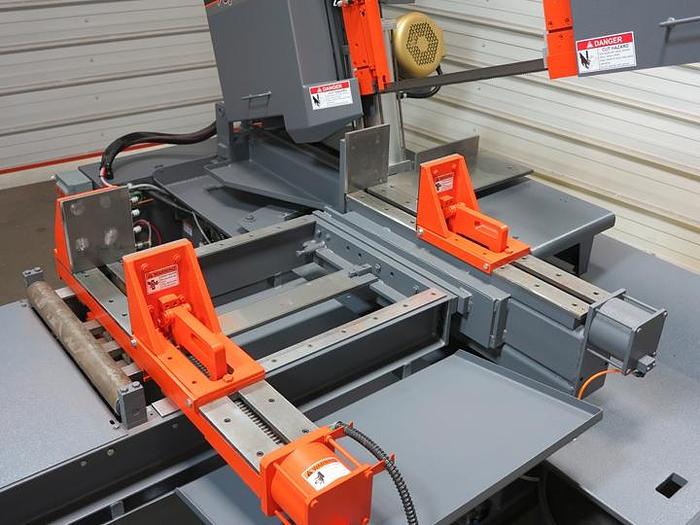

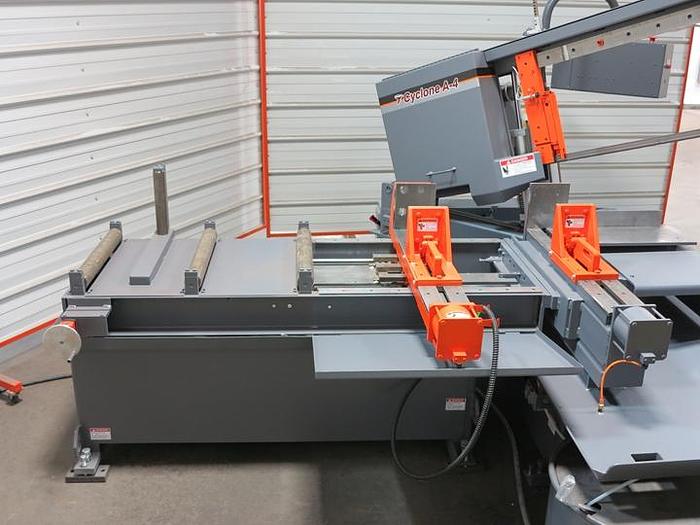

Bar-feed | 0-24" (Stroke Air - 4 Index) |
Blade | 16' 0" L x 1.25" H x .042" |

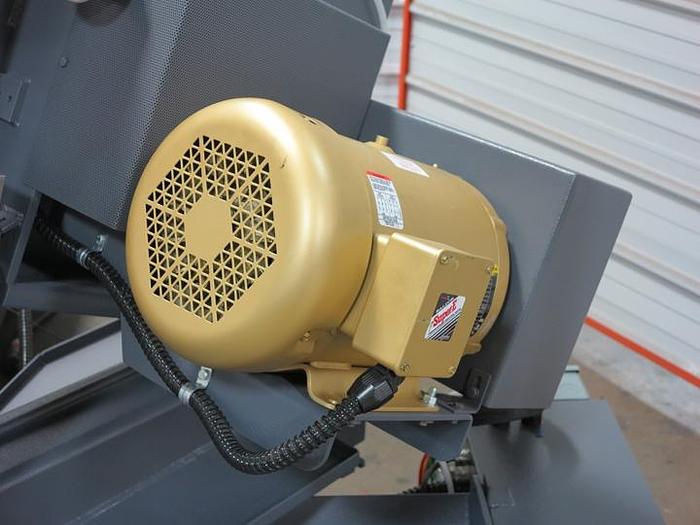

Motor | 7.5 HP |
Hydraulic Motor | N/A |
Operation | Automatic |
Rectangular Capacity | 0-22" W x 0-16" H |
Operation Type | Automatic |
Power Source | Air |
Weight | N/A |
Blade Type | Bandsaw |
Blade Size | 16' 0" L x 1.25" H x .042" |
Bandsaw Blade Speed | N/A |
Bundle Cut? | Yes |
Horizontal Pivot Band Saws | Cyclone A-4 |
