HE&M Saw 320 BSA
HE&M Saw 320 BSA
Description

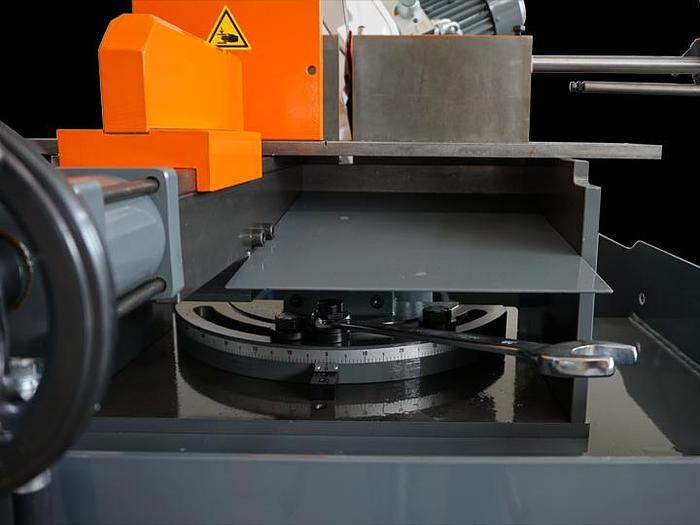

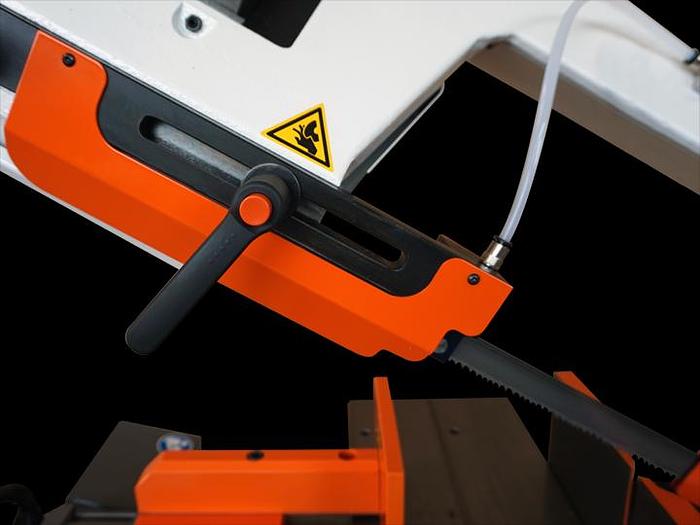

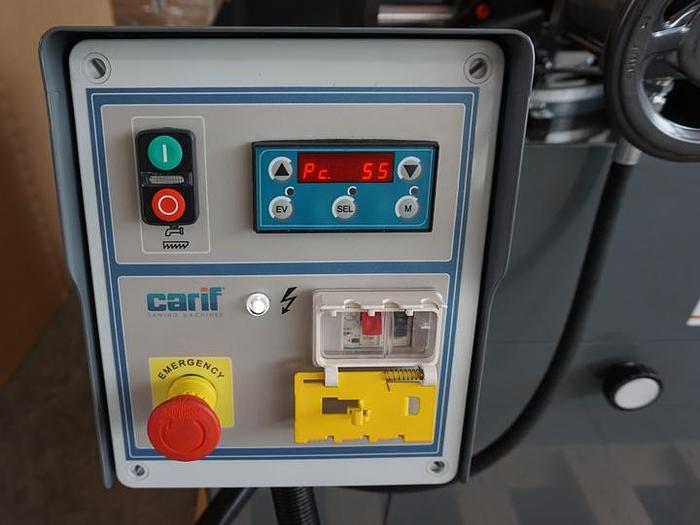

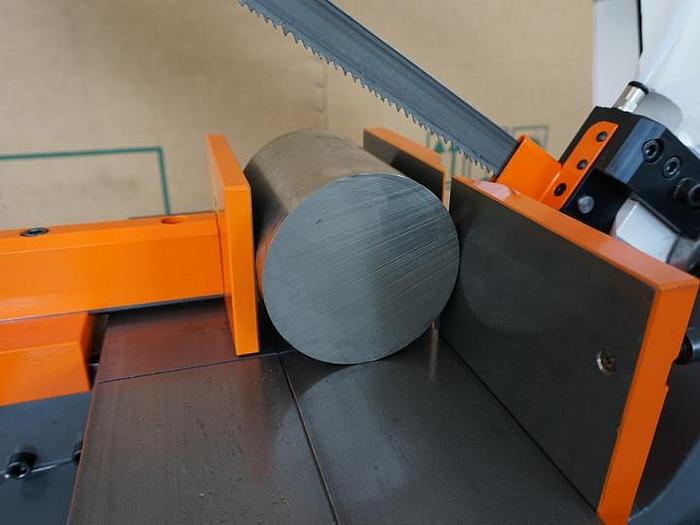

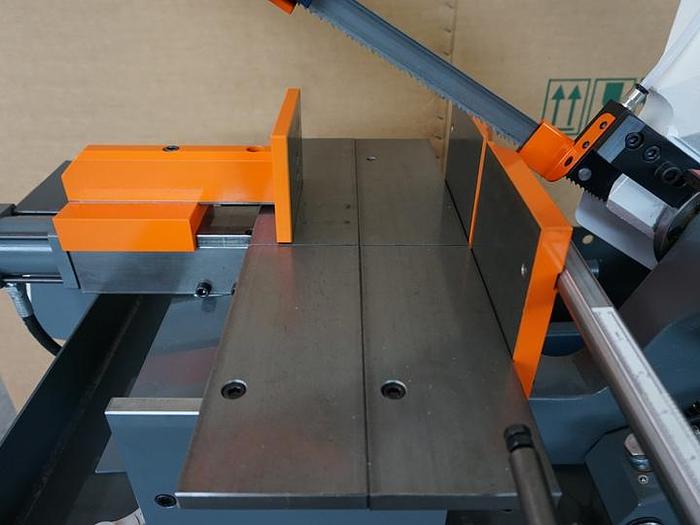

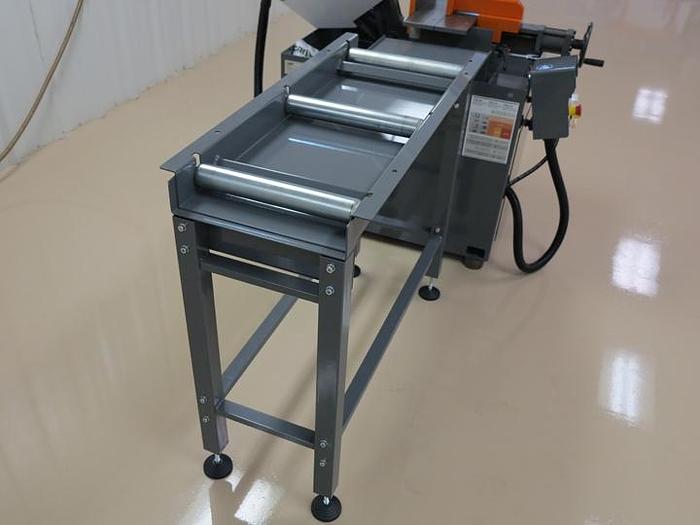

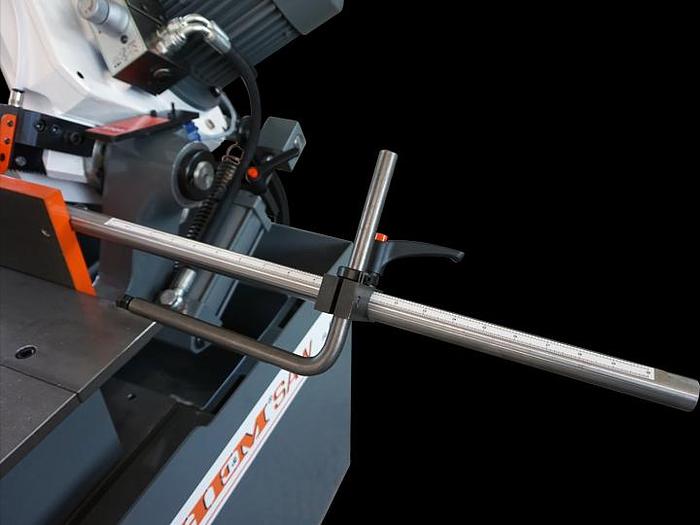

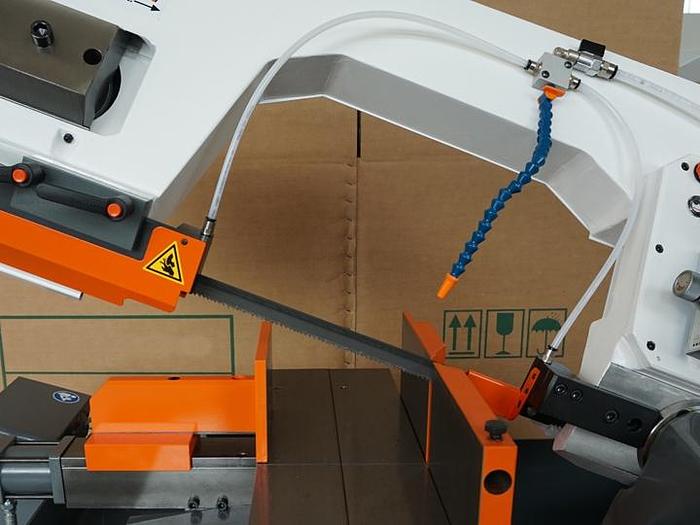

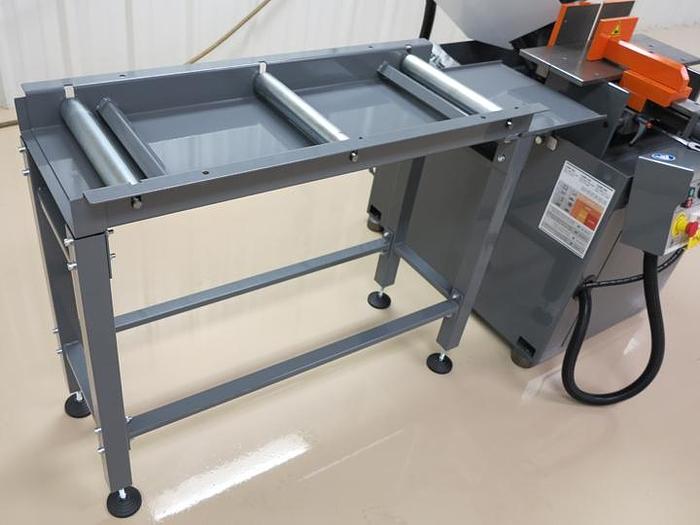

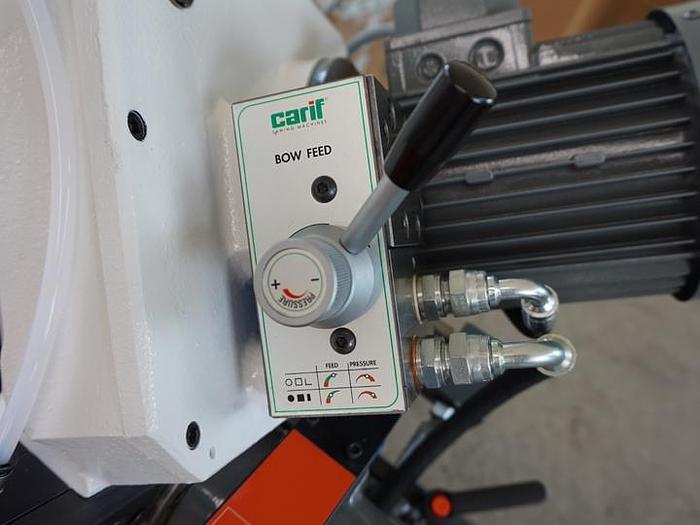

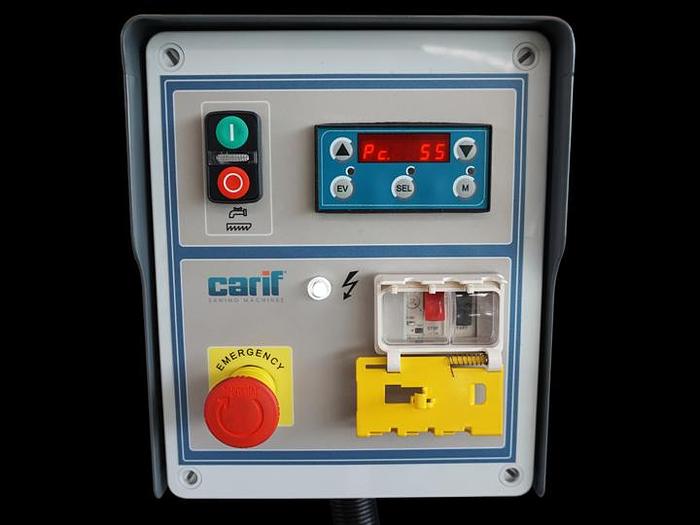

The 320 BSA is a double-mitering band saw cutting 45ᵒin both directions, up to 60ᵒ left miter. The control is connected by a 40” umbilical cord and blade speed adjusts approximately 39 to 320 SFPM. The arm height is set by pressing a button on the control. Dual 45° Miter One-Way 60° Miter Control Console - Moveable w/ 40" Umbilical Patented Hydraulic System Variable Speed Motor Adjustable Feed Rate & Cutting Pressure Vise - Hydraulic Adjustable Rugged 3/16" Steel Base Miter Scale Blade Speed & Height Set from Control Panel Part Counter on Control Panel Heavy-Duty Sealed Pivot Bearing Point Full Capacity Cutting Surface Guide Arm - Manual Adjustment Hard-Stop Measuring Device Emergency Stop Coolant System - Flood Large Chip Container Roller Table Extension Inbound or Outbound Roller Tables
Specifications
Manufacturer | HE&M |
Condition | New |
Main Capacity | 0-12.6" W x 0-8.6" H |
Bar-feed | N/A |
Blade | 9' 11" L x 1" H x .035" |
Motor | 3 HP |
Hydraulic Motor | N/A |
Operation | Semi-Automatic |
Rectangular Capacity | 0-12.6" W x 0-8.6" H |
Square Capacity | 0-8.6" (Square) |
Round Capacity | 0-10.8" (Diameter) |
Operation Type | Semi-Automatic |
Power Source | Electric |
Weight | 1500 |
Blade Type | Bandsaw |
Blade Size | 9' 11" L x 1" H x .035" |
Bandsaw Blade Speed | N/A |
Bundle Cut? | No |
Horizontal Pivot Band Saws | 320 BSA |
