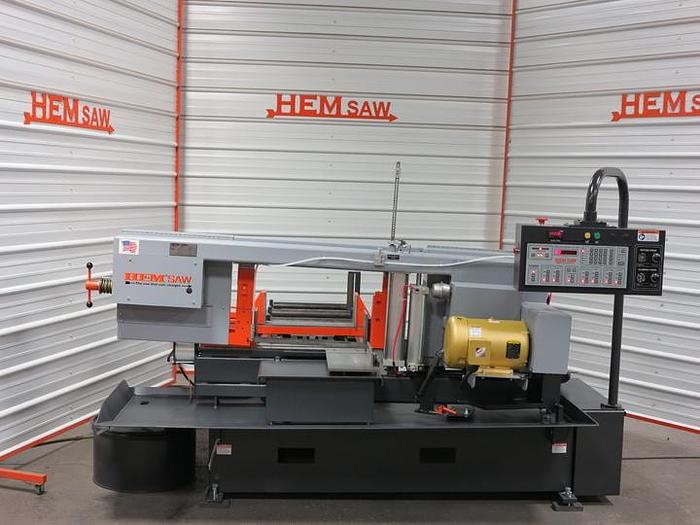

HE&M Saw Cyclone A-C
HE&M Saw Cyclone A-C
Description

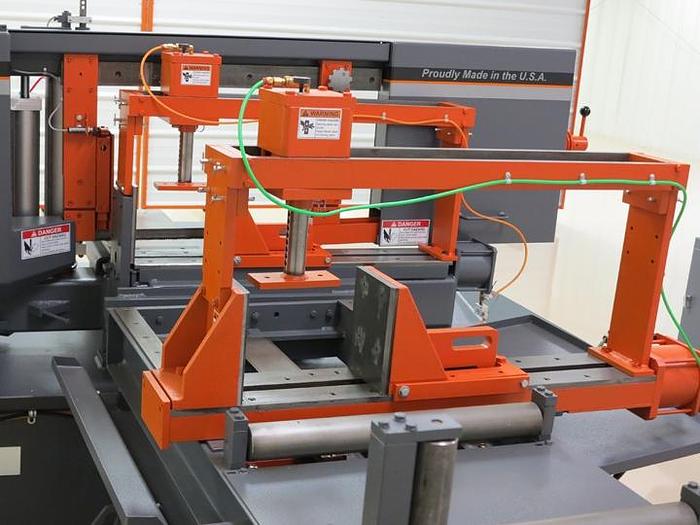

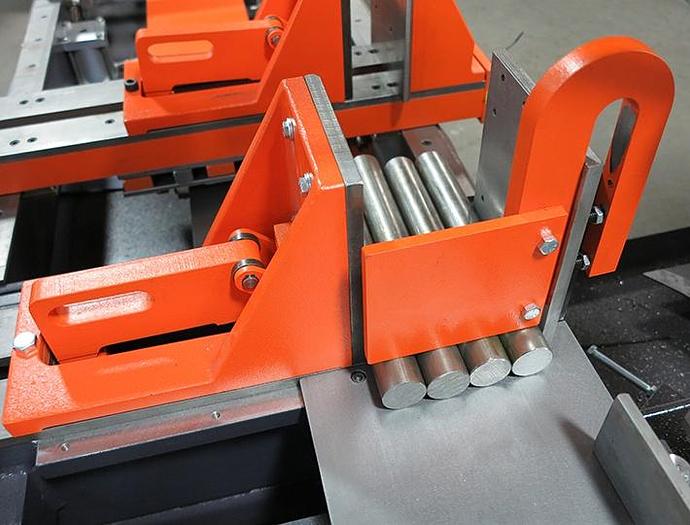

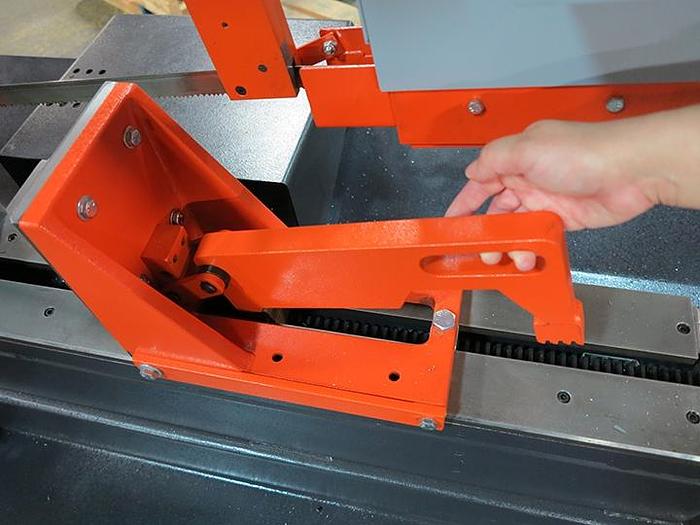

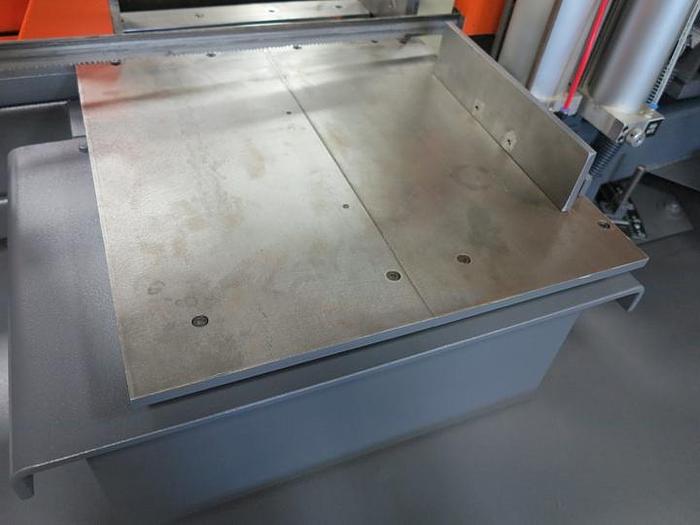

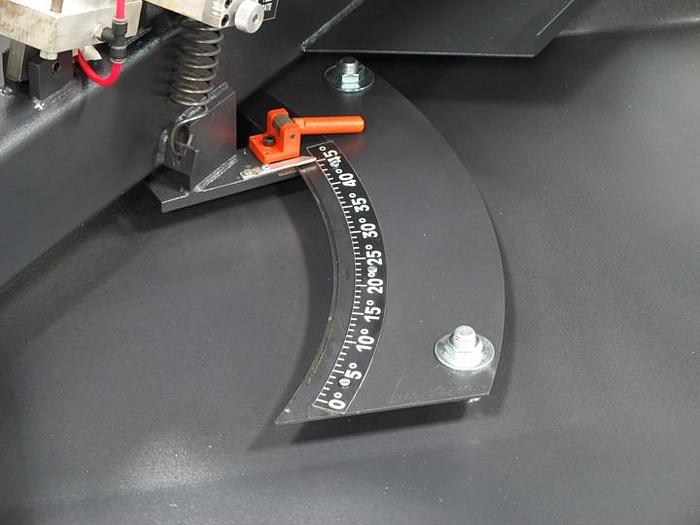

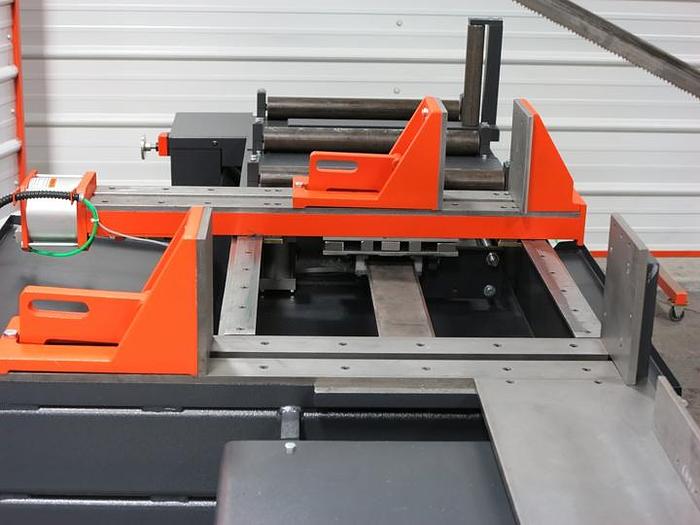

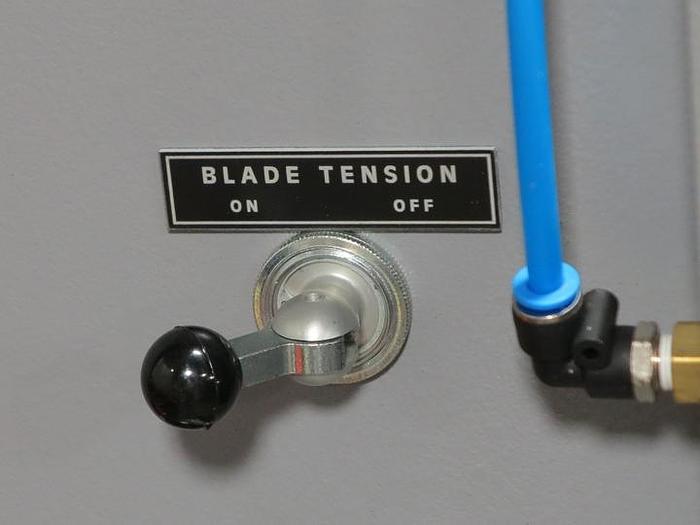

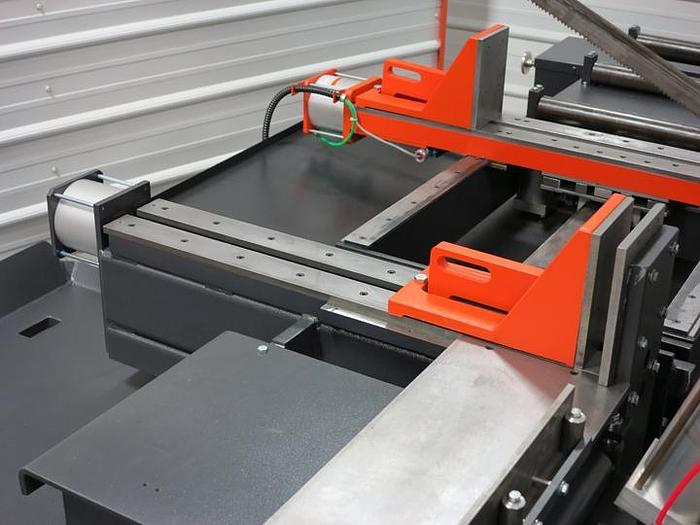

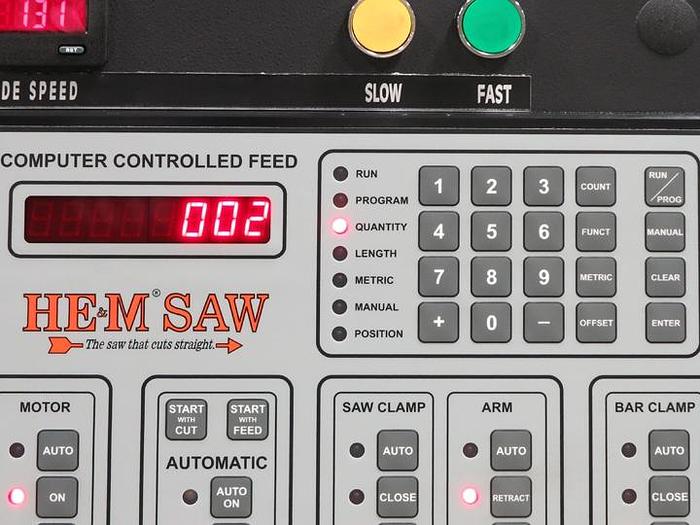

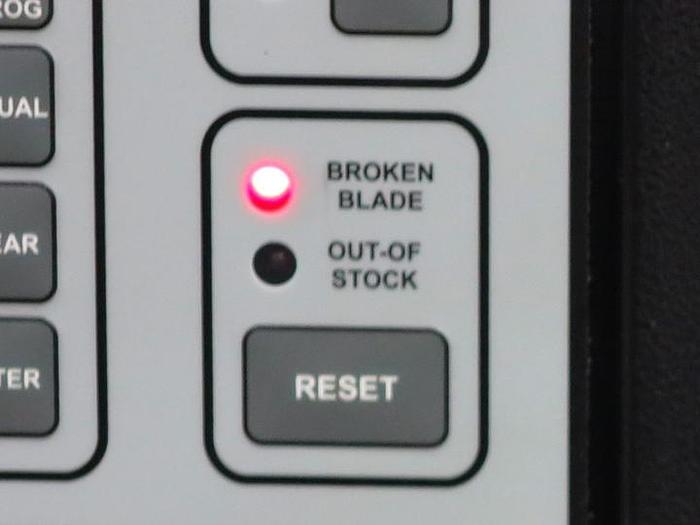

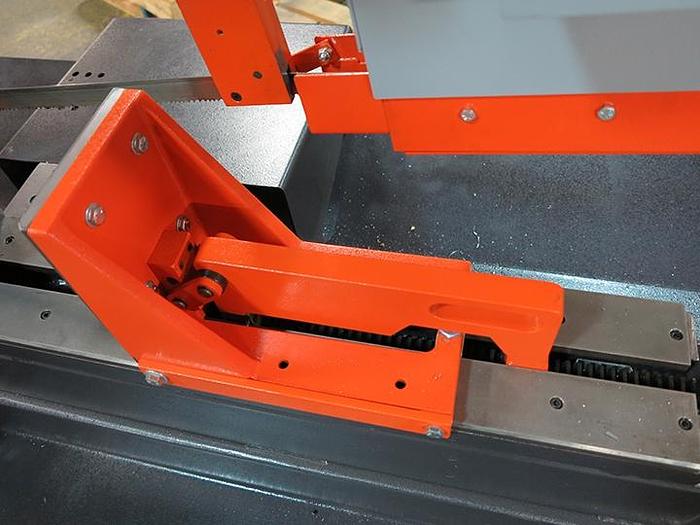

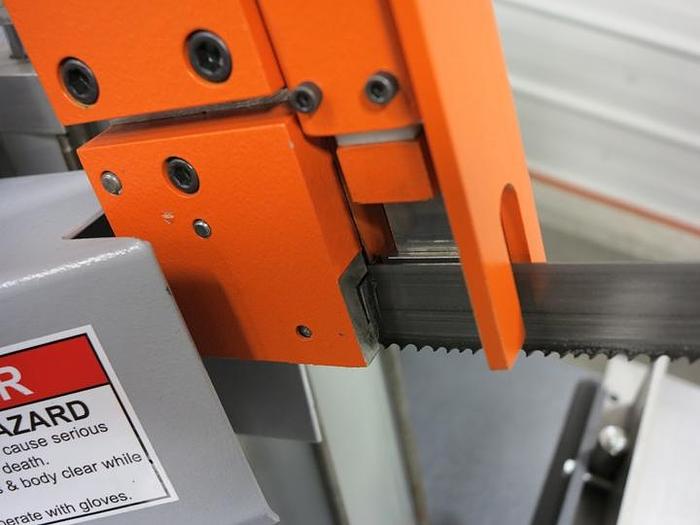

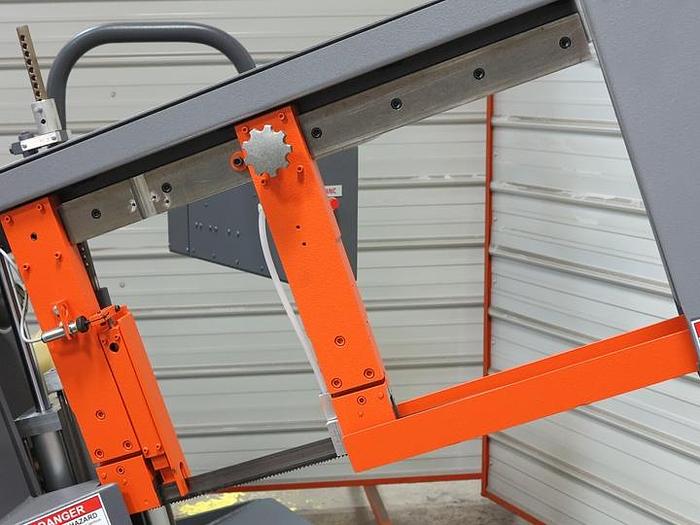

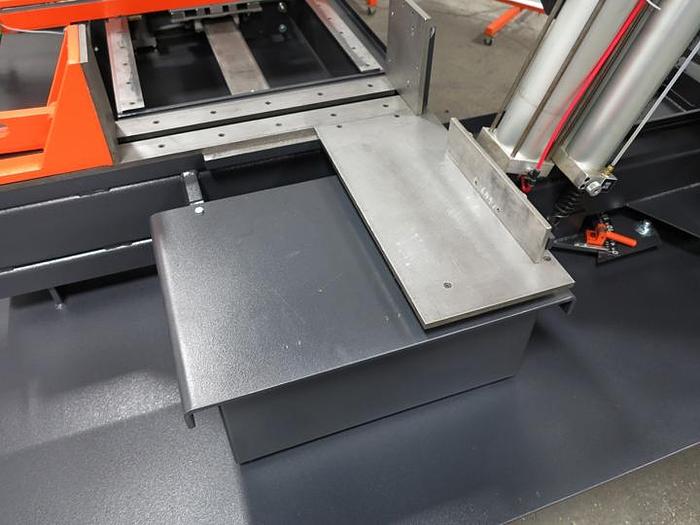

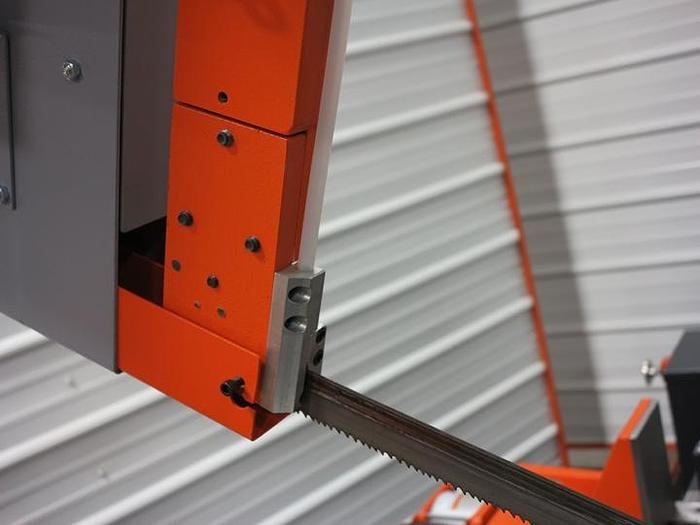

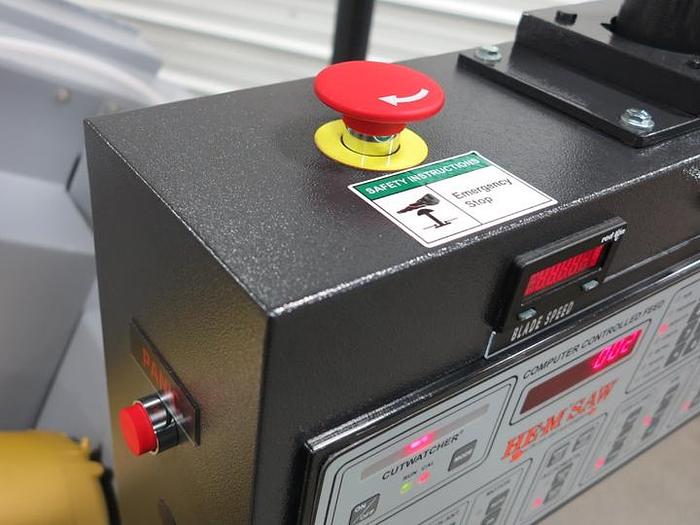

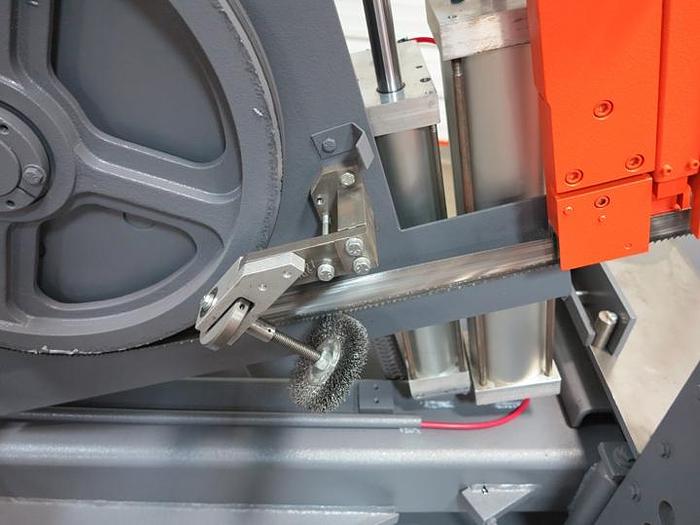

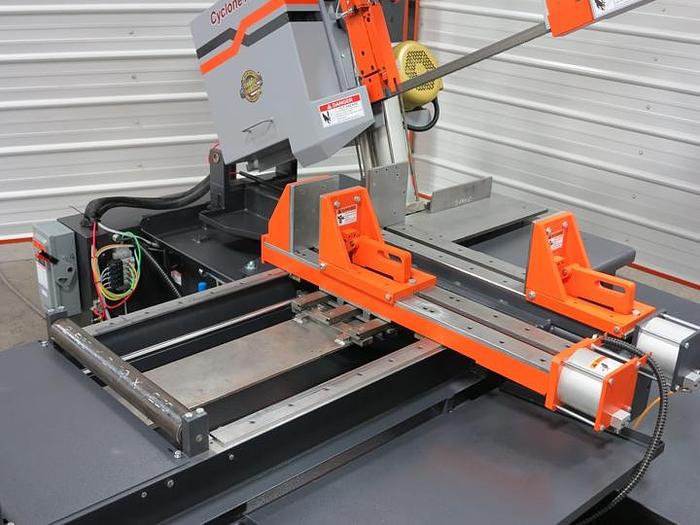

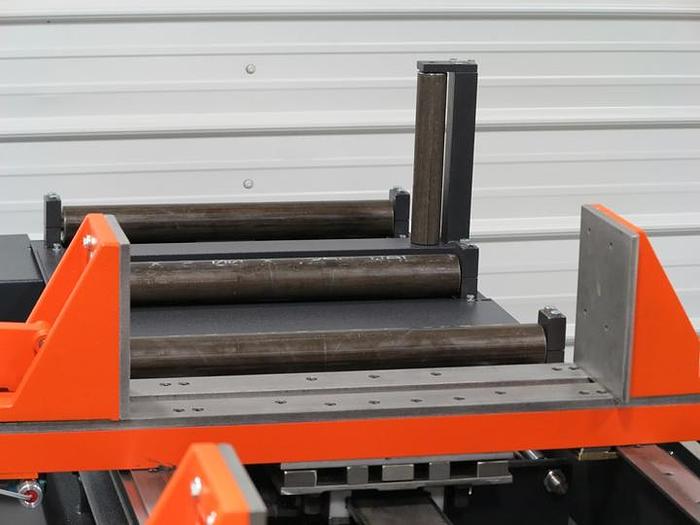

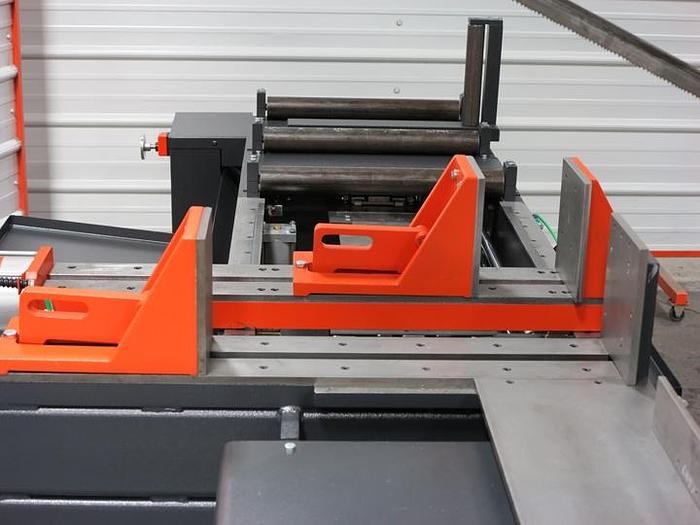

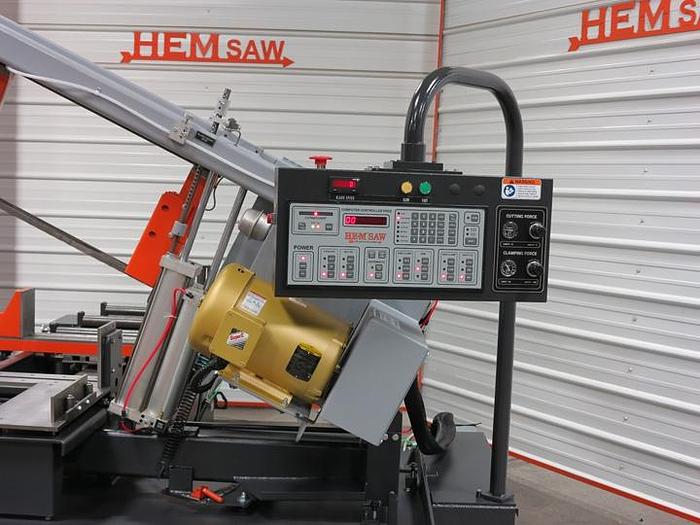

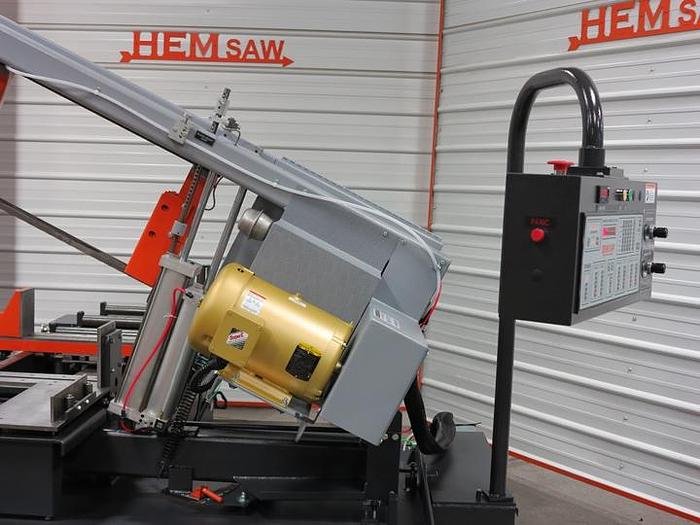

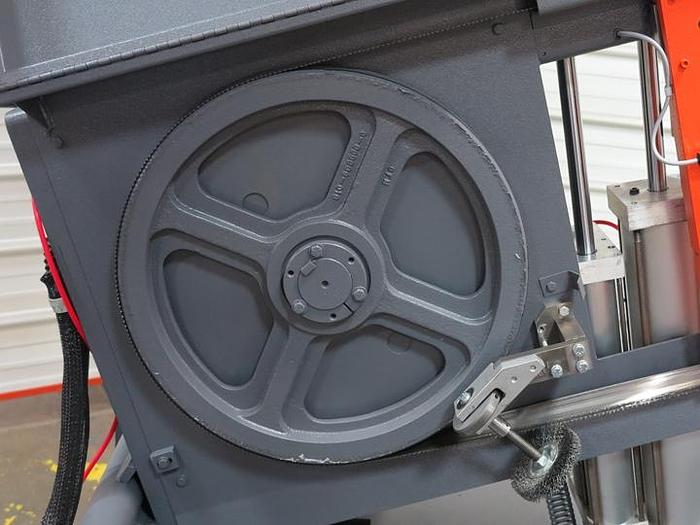

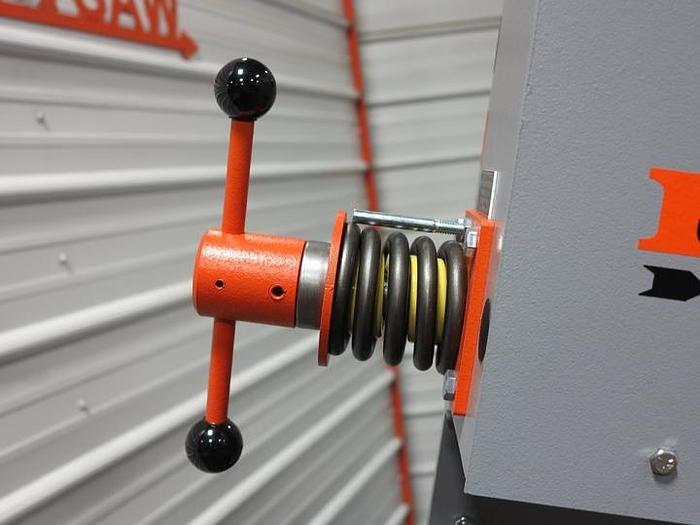

The Cyclone A-C multiple indexes with a 24” bar-feed, saves up to 99 jobs, sawing one job or multiple jobs of differing lengths and quantities in sequence. Each job includes job number, part length and quantity and can miter up to 45ᵒ in one direction cutting solids or shapes. Easy View Console - All Function Control Computer Controlled Feed System 18" Discharge Support Vise - Adjustable Main & Feed Adjustable Clamping Force 2 Hold Down Fixtures Vertical Alignment Bar on Bar-Feed Guide Arm - Manual Adjustment Passive "Cut Watcher®" System Variable Blade Speed w/ LED Readout Carbide Blade Guides Manual Blade Tension Adjustable Feed Rate Adjustable Cutting Pressure Coolant System - Flood w/ Wash-Down Hose Blade Brush Broken Blade Function Out-of-Stock Function Safety Guards 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator) Top Clamp - Reduced Capacity Main Vise Top Clamp - Reduced Capacity Feed Vise Vise - 3rd on Feed Full Width Discharge Plate 60° Miter Capability (Manual Cut Only) Light Clamping Pressure Laser Light System Air Powered Blade Tension Spray Mist Lubrication Single-Phase Voltage 5' Idle Roller Stock Table 10' Idle Roller Stock Table
Specifications
Manufacturer | HE&M |
Condition | New |
Main Capacity | 0-22" W x 0-16" H |

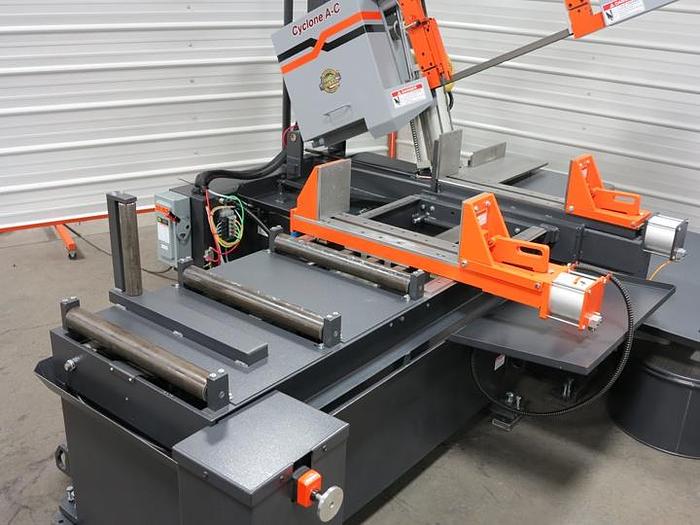

Bar-feed | 0-24" (Stroke Air - Multiple Index) |
Blade | 16' 0" L x 1.25" H x .042" |

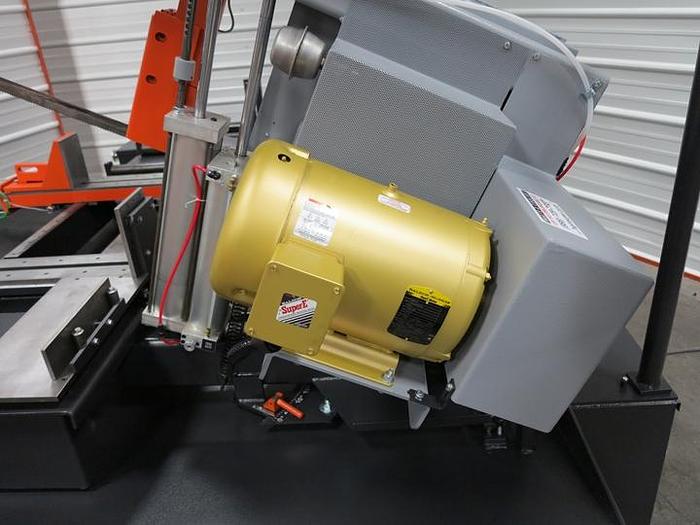

Motor | 7.5 HP |
Hydraulic Motor | N/A |
Operation | Automatic |
Rectangular Capacity | 0-22" W x 0-16" H |
Operation Type | Automatic |
Power Source | Air |
Weight | N/A |
Blade Type | Bandsaw |
Blade Size | 16' 0" L x 1.25" H x .042" |
Bandsaw Blade Speed | N/A |
Bundle Cut? | Yes |
Horizontal Pivot Band Saws | Cyclone A-C |
