Description

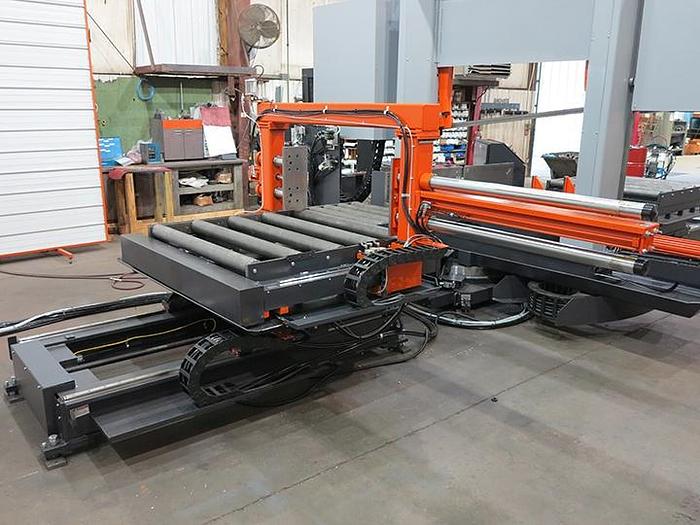

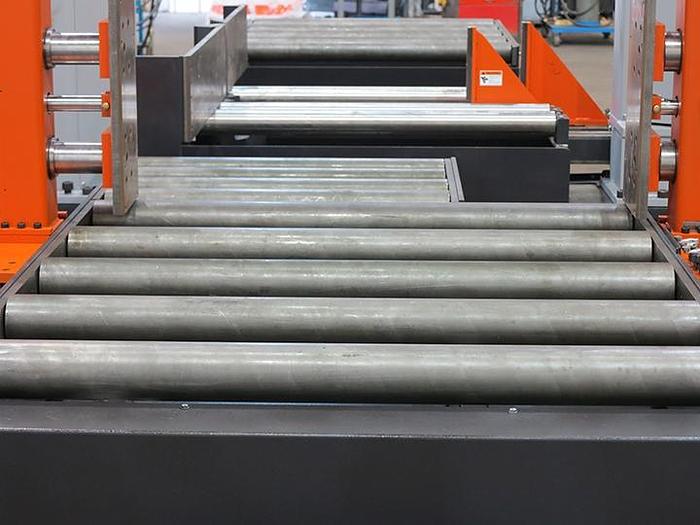

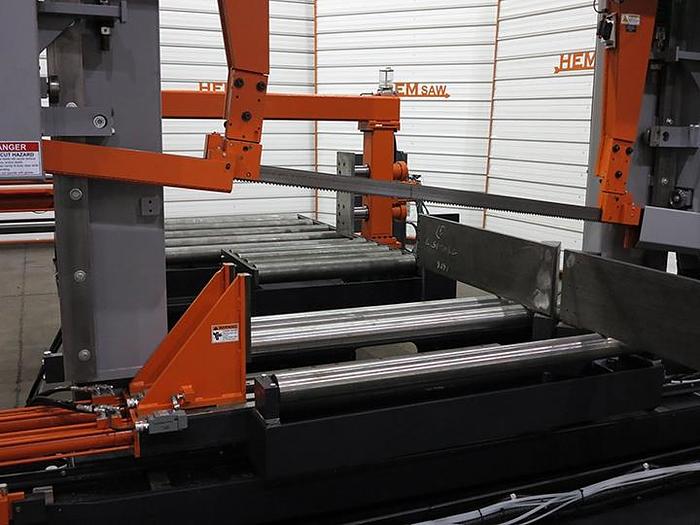

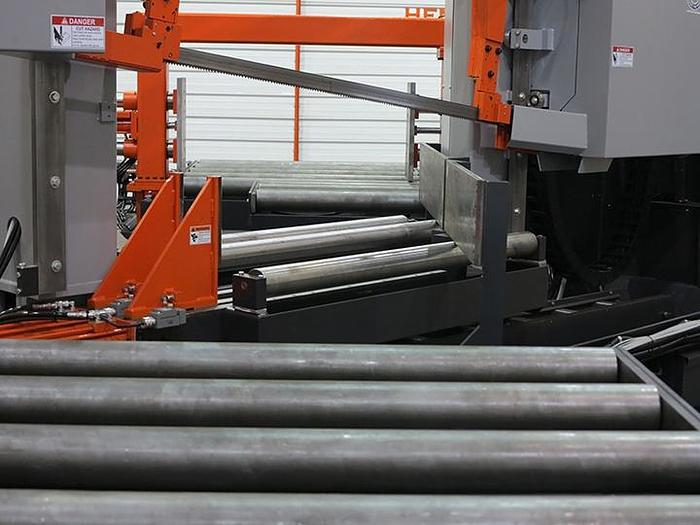

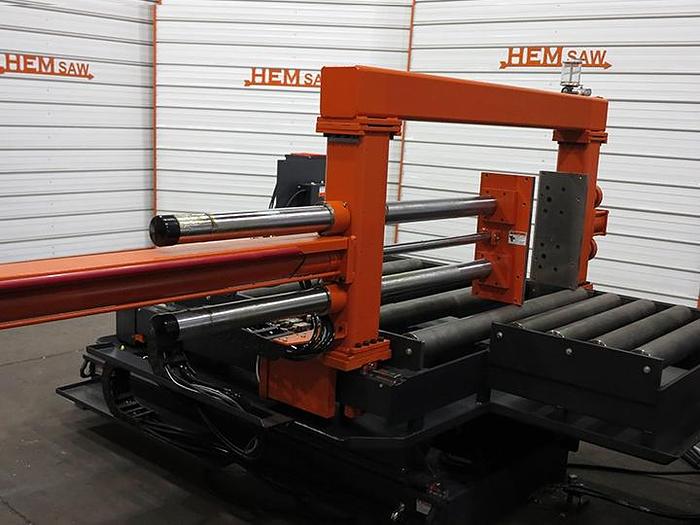

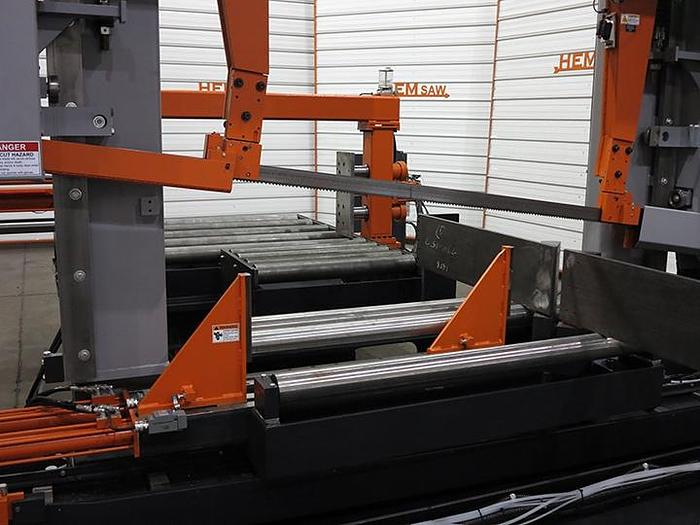

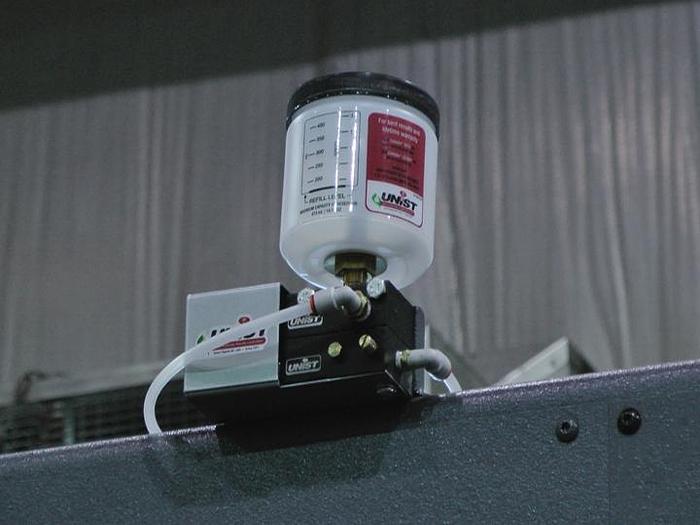

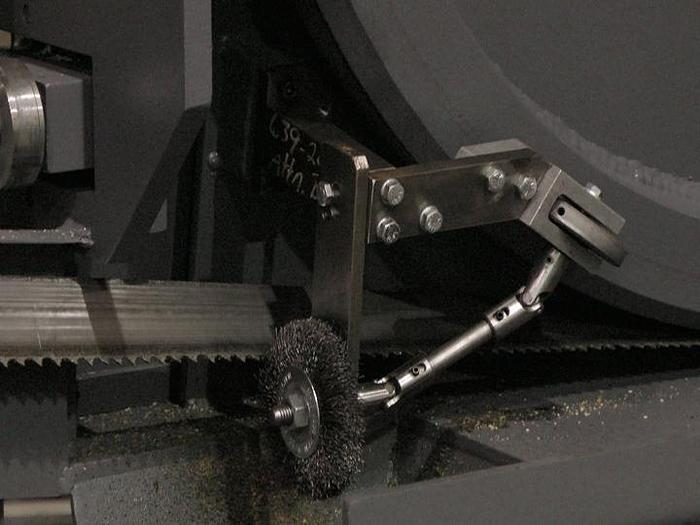

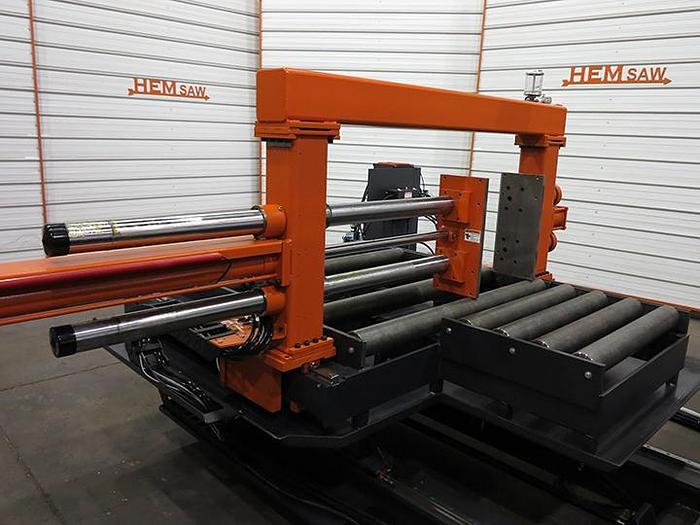

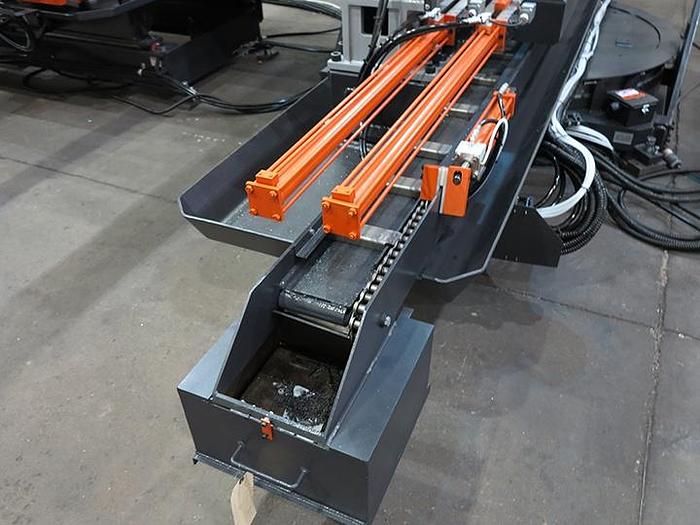

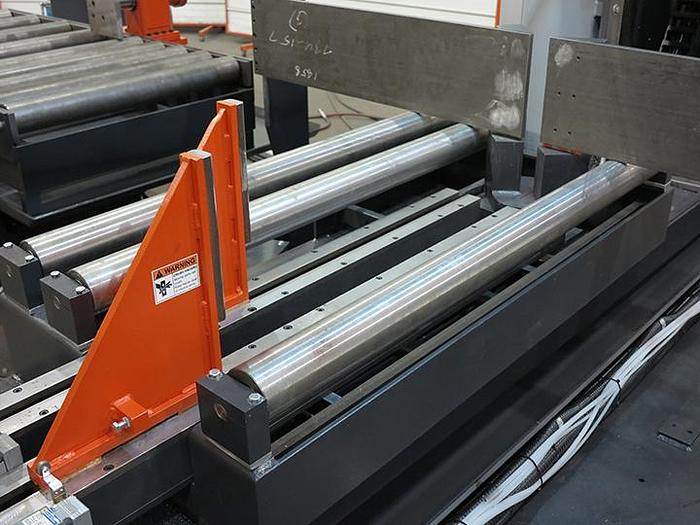

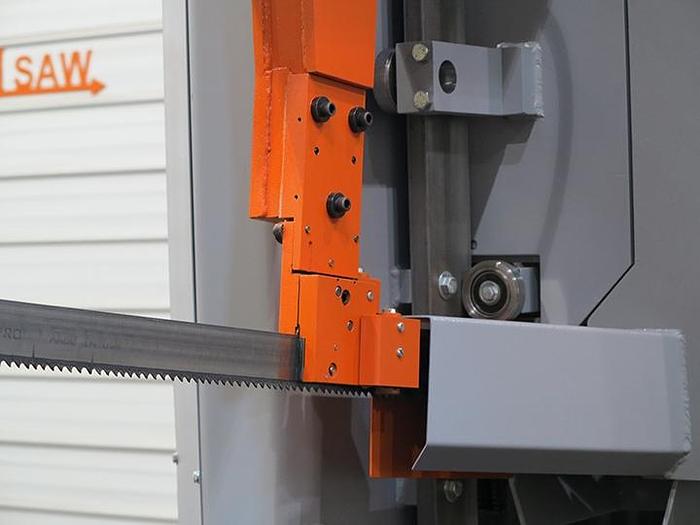

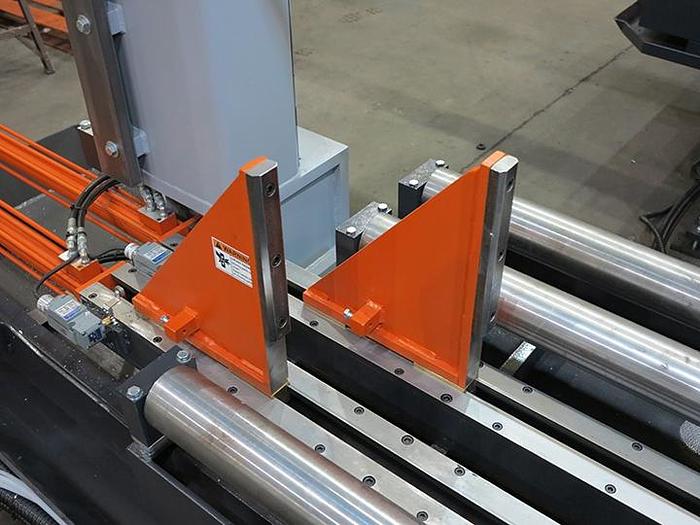

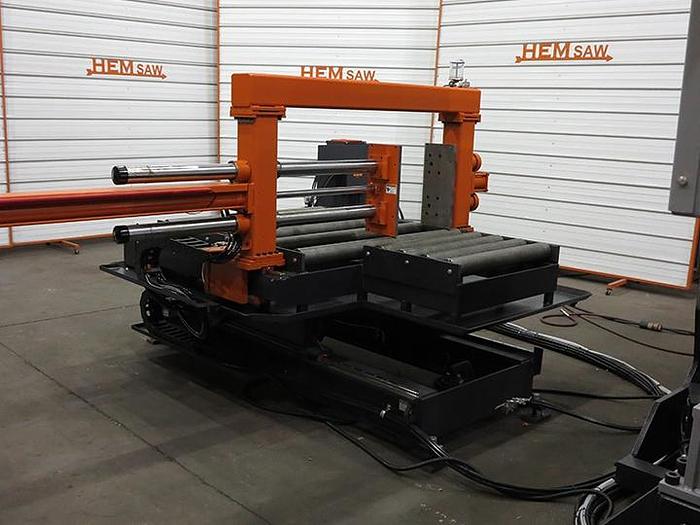

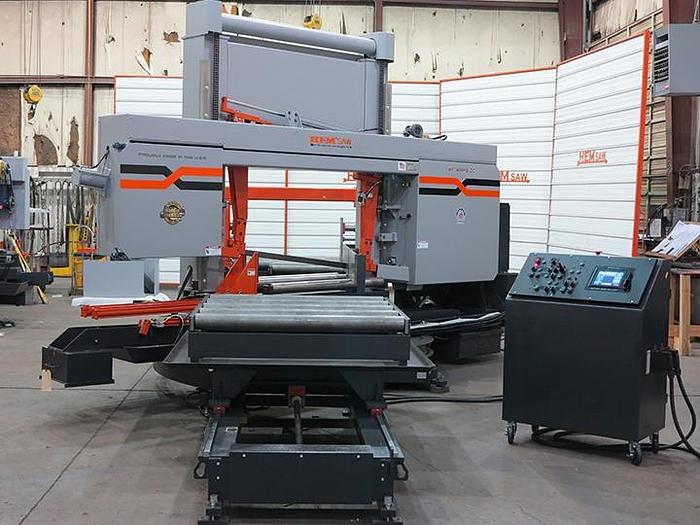

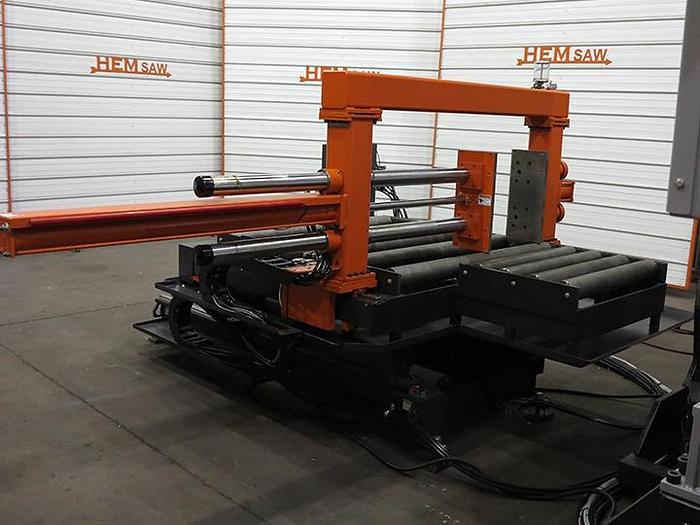

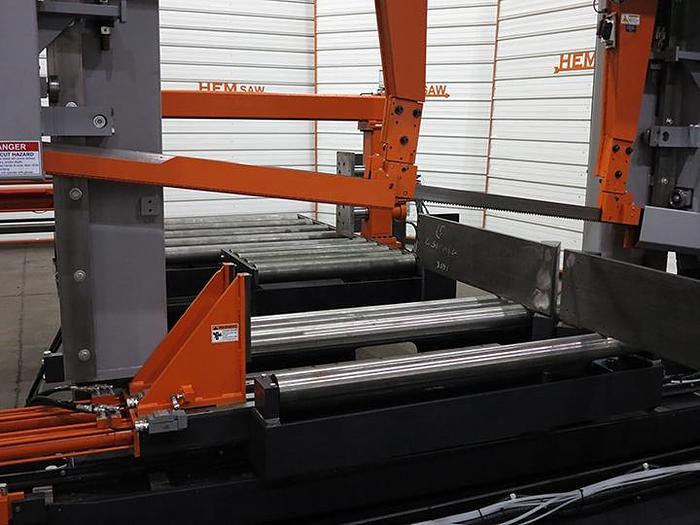

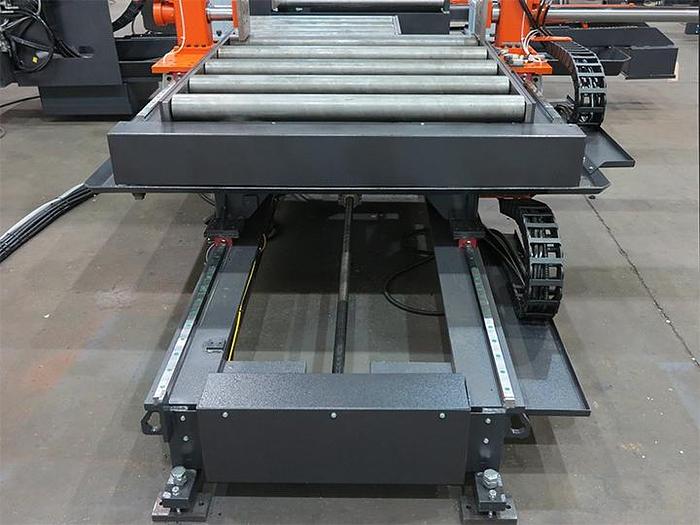

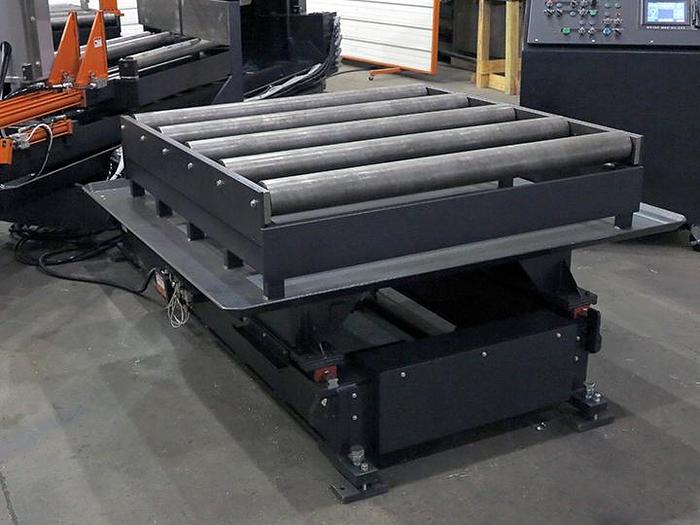

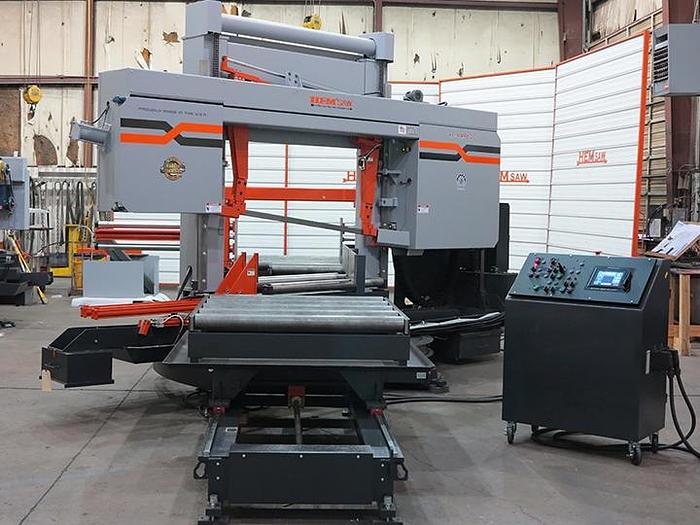

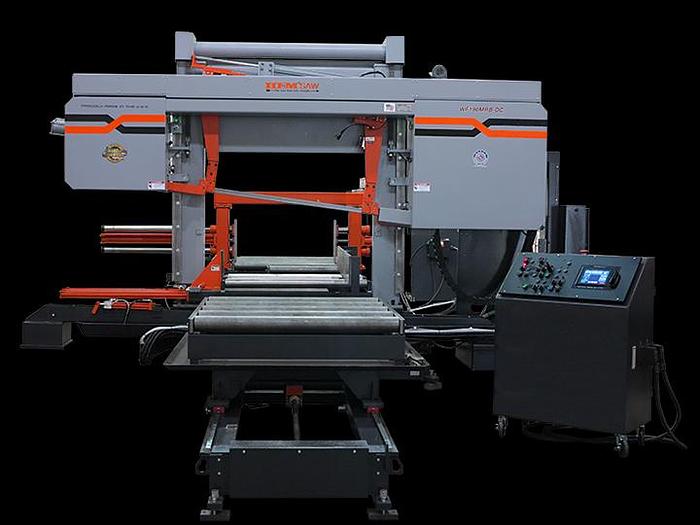

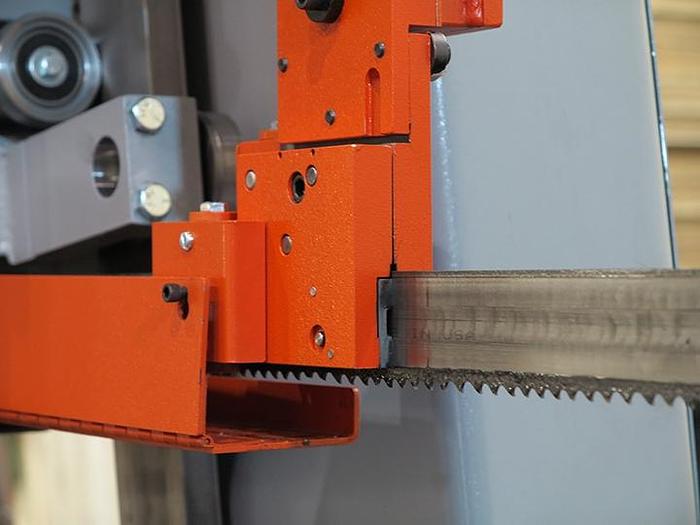

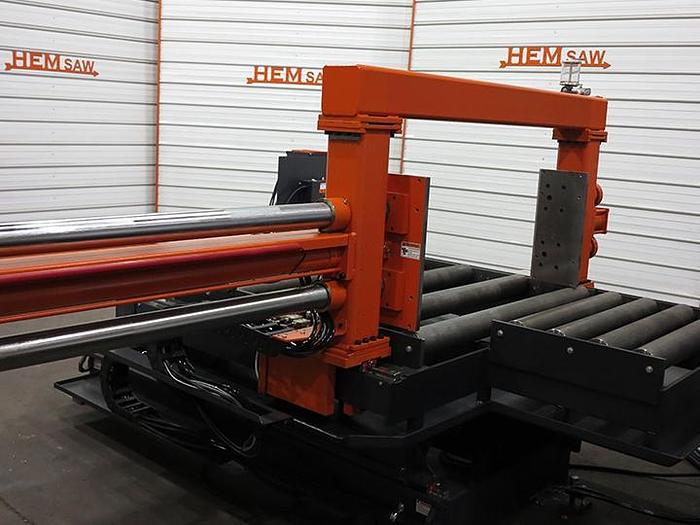

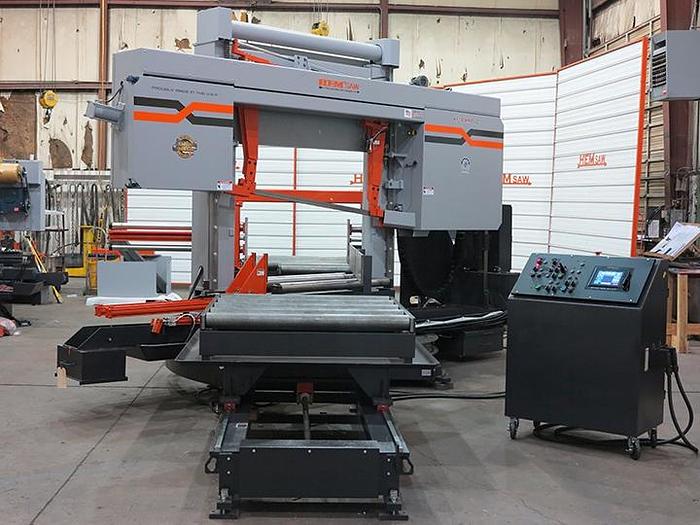

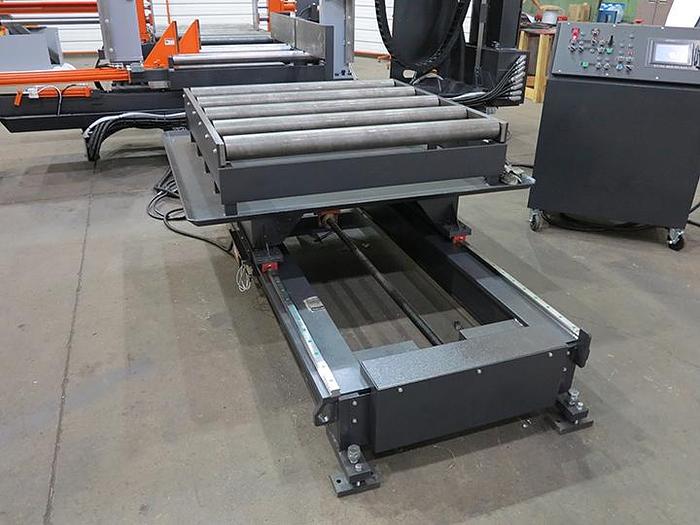

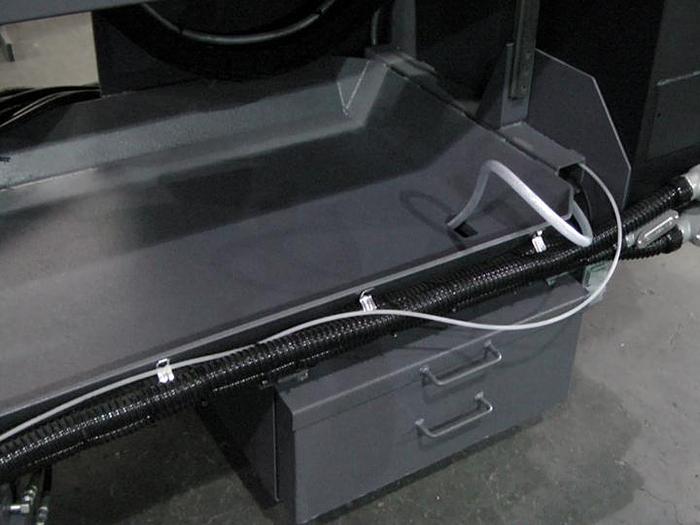

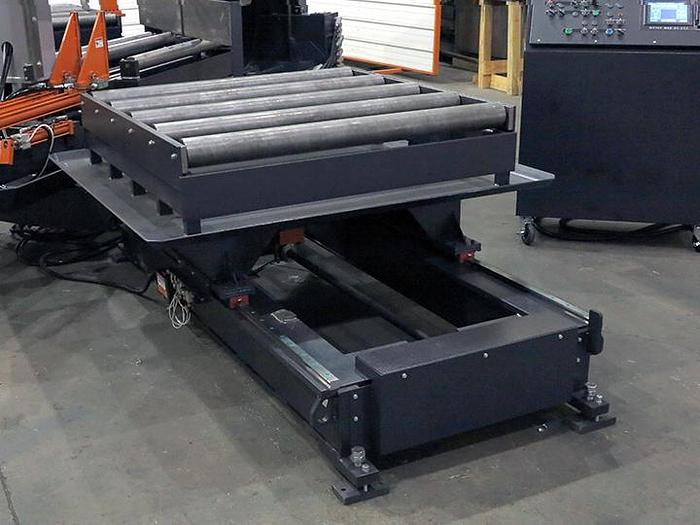

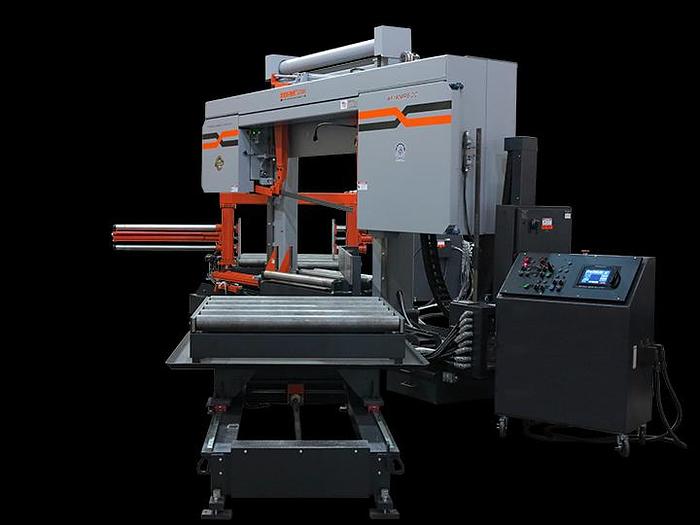

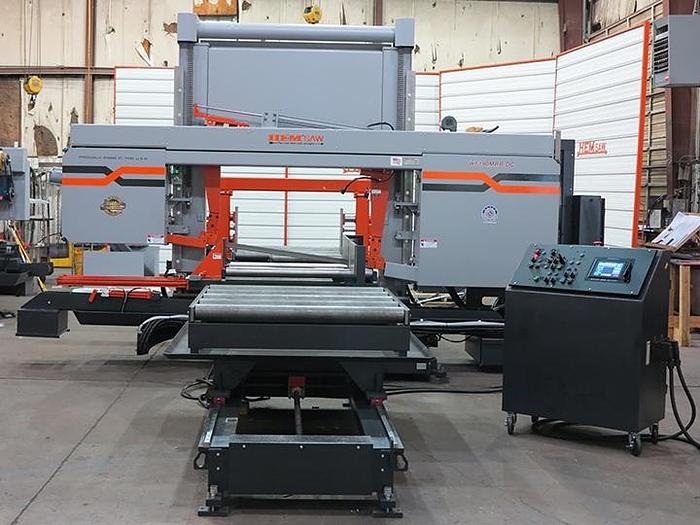

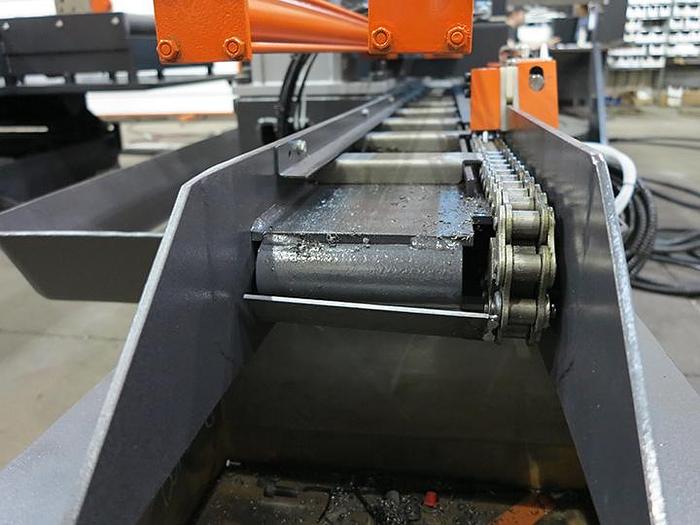

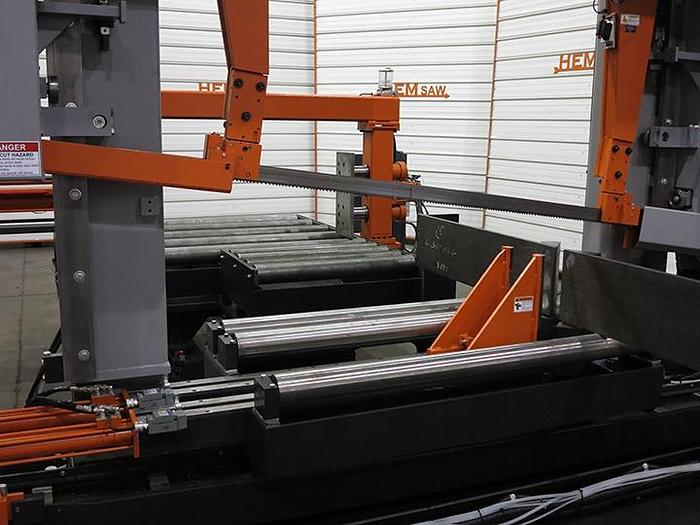

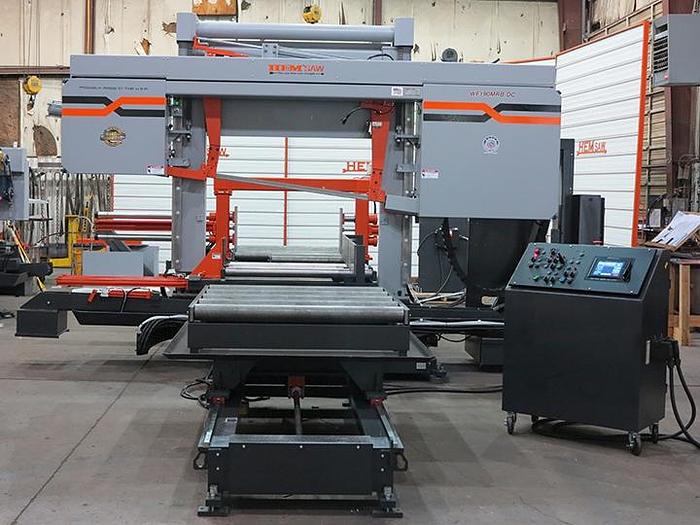

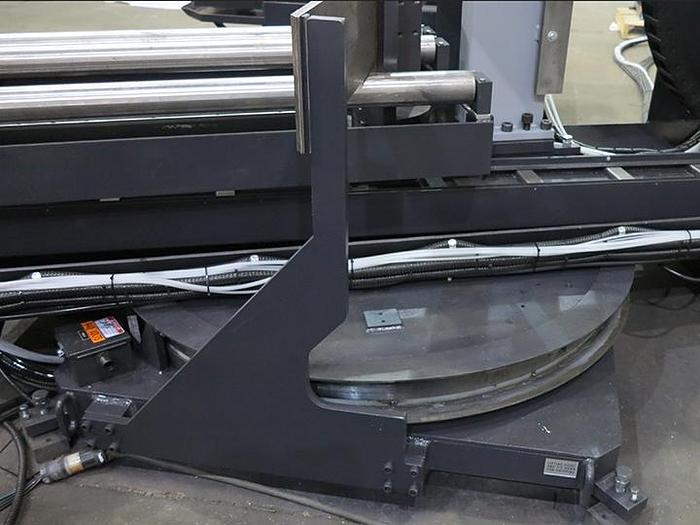

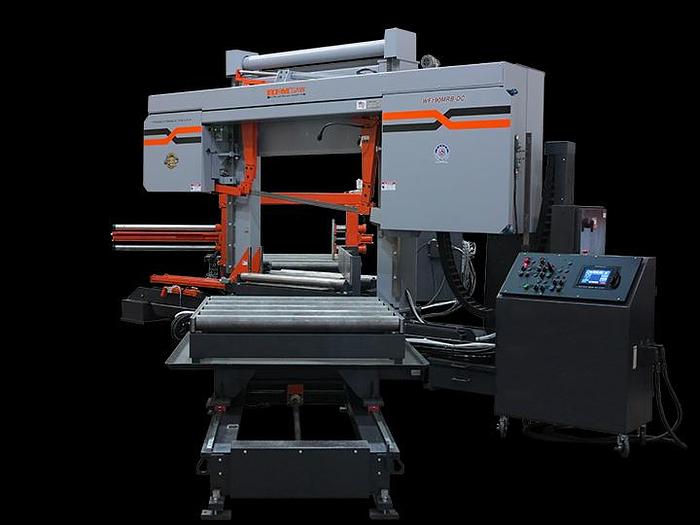

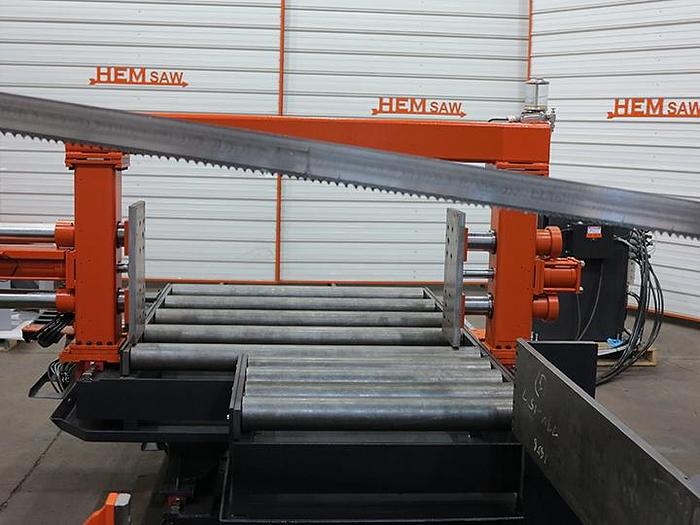

The WF190MRB-DC is a powered double-miter band saw operated using a touch screen mounted in a pedestal control console and cuts miter angles 45ᵒ in one direction and up to 60ᵒ the other direction. Included are vises on both sides of the blade with additional clamping optional. Pedestal Mounted Control Console w/ 7" Touch Screen Rotary Base Machine Powered Miter w/ Angle Readout Arm Cant - 7° Permanent Vises on Both Sides of the Blade Adjustable Clamping Force Adjustable Feed Rate Adjustable Cutting Pressure Carbide Blade Guides Lead In/Lead Out Roller Guides Guide Arm - Powered Variable Blade Speed w/ Readout on Touch Screen Powered Blade Tension Coolant System - Flood w/ Wash-Down Hose Blade Brush Two-Hand Operation Controls Automatic Blade Idle Broken Blade Function Blade Change Interlock Safety Guards 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine Telescoping Roller Table - Input Side Telescoping Roller Table - Output Side Top Clamp (Available Input & Output Sides) Positioning Vise Passive "Cut Watcher®" System Chip/Swarf Removal System - Chip Conveyor Laser Light System Spray Mist Lubrication Cold Weather Package Hydraulic Tank Heater
Specifications
Manufacturer | HE&M |
Condition | New |
Main Capacity | 0-44" W x 0-25" H |
Bar-feed | N/A |
Blade | 31' 4" L x 2" H x .063" |
Motor | 15 HP |
Hydraulic Motor | 5 HP |
Operation | Semi-Automatic |
Rectangular Capacity | 0-44" W x 0-25" H |
Square Capacity | 0-25" (Square) |
Round Capacity | 0-25" (Diameter) |
Operation Type | Semi-Automatic |
Power Source | Hydraulic |
Weight | N/A |
Blade Type | Bandsaw |
Blade Size | 31' 4" L x 2" H x .063" |
Bandsaw Blade Speed | N/A |
Bundle Cut? | Yes |
Dual Column Band Saws | WF190MRB |
