2022 Davi MCA 4 Roll CNC Plate Roll, New in 2022

DAVI MCA 2020 4-ROLL CNC PLATE ROLL, NEW: 2022

Year: 2022 | DAVI MCA 2020

DESCRIPTION:

MANUFACTURED IN 2022. NEVER INSTALLED!

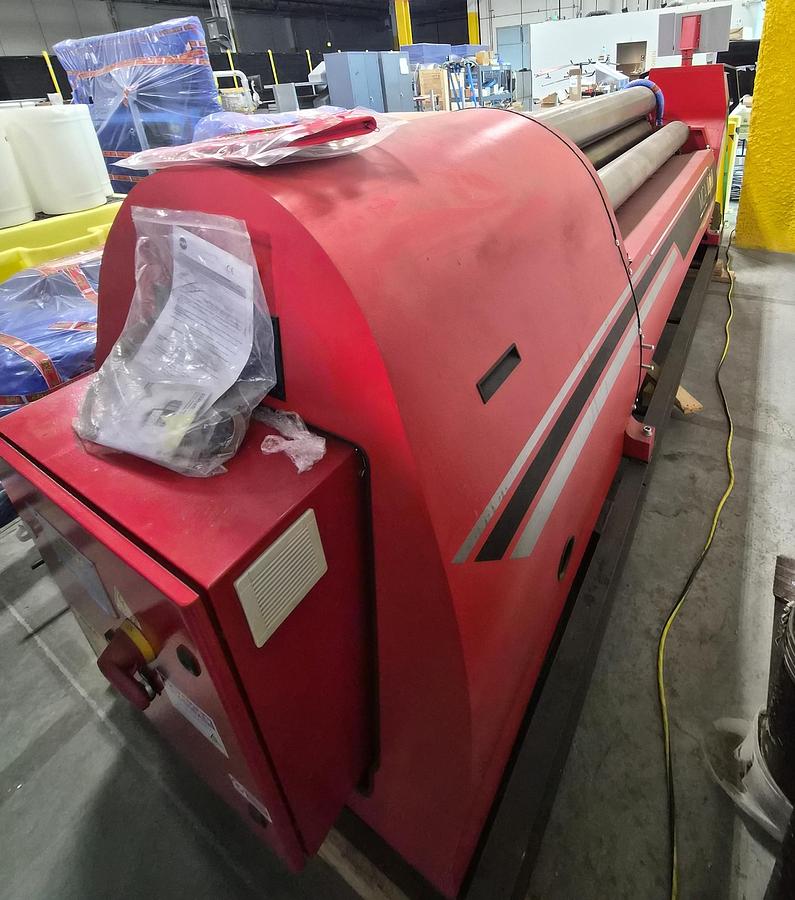

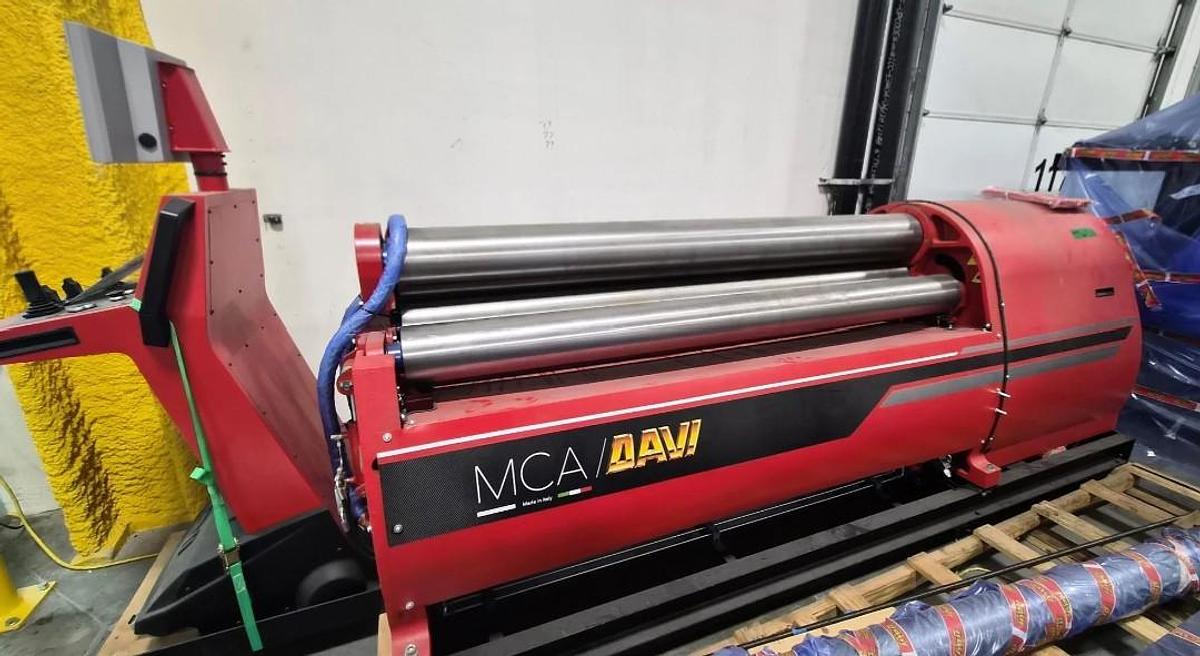

DIGITAL, SERVO-TRONIC SYNCHRONIZED, FULL HYDRAULC, 6' x 7/16" FOUR ROLL CNC PLATE ROLL. MACHINE CAPABLE TO PREBEND, ROLL CYLINDERS AND CONES. EQUIPPED WITH 13' FEED SYSTEM.

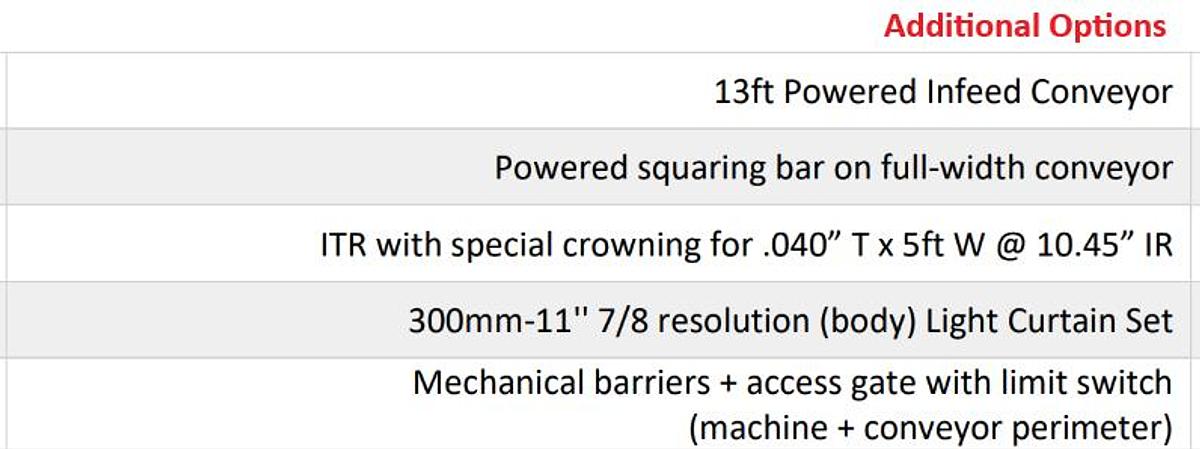

EQUIPPED WITH:

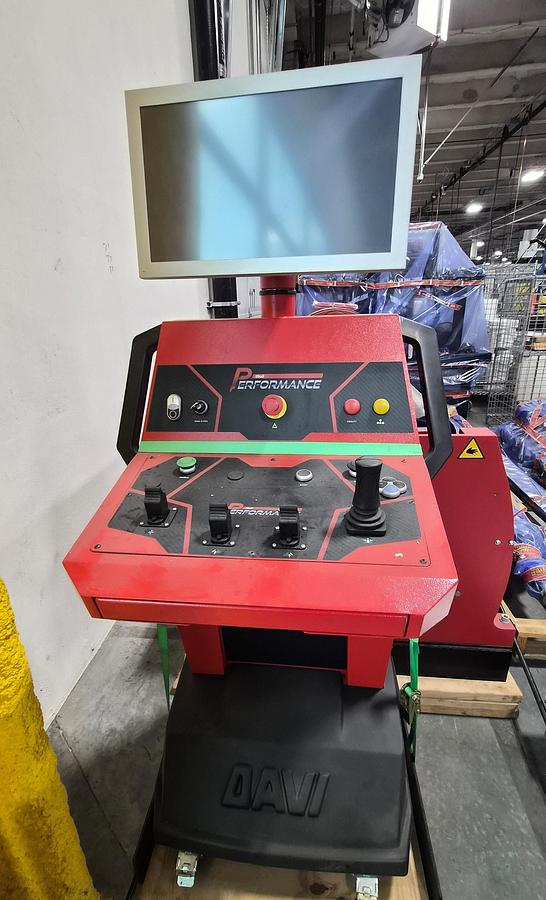

DAVI iROLL PERFORMANCE CNC CONTROL

13' POWERED INFEED CONVEYOR

POWERED SQUARING BAR ON FULL WIDTH OF CONVEYOR

ITR WITH SPECIAL CROWING FOR 0.040" T x 5' W @ 10.45" IR

7/8" RESOLUTION (BODY) LIGHT CURTAIN SET

MECHANICAL BARRIERS + ACCESS GATE WITH LIMIT SWITCH (MACHINE + CONVEYOR PERIMETER)

PLANETARY GUIDE TECHNOLOGY

SERVO-TRONIC ROLLS PARALLELISM

STRESS-LASS TRANSMISION DRIVE SYSTEM

ROLL-BY-WIRE DIGITAL TECHNOLOGY

PERMANENT LUBRICATION TECHNOLOGY

HARDENED ROLLS

CONE ROLLING PACKAGE

DRIVEN CLAMPING ROLLS

ROLLS CROWNING

ROLLS GUIDING

HYDRAULIC PLATE CLAMPING

MULITPLE OVERLOAD SAFETY SYSTEM

MANUFACTURED 8/2022

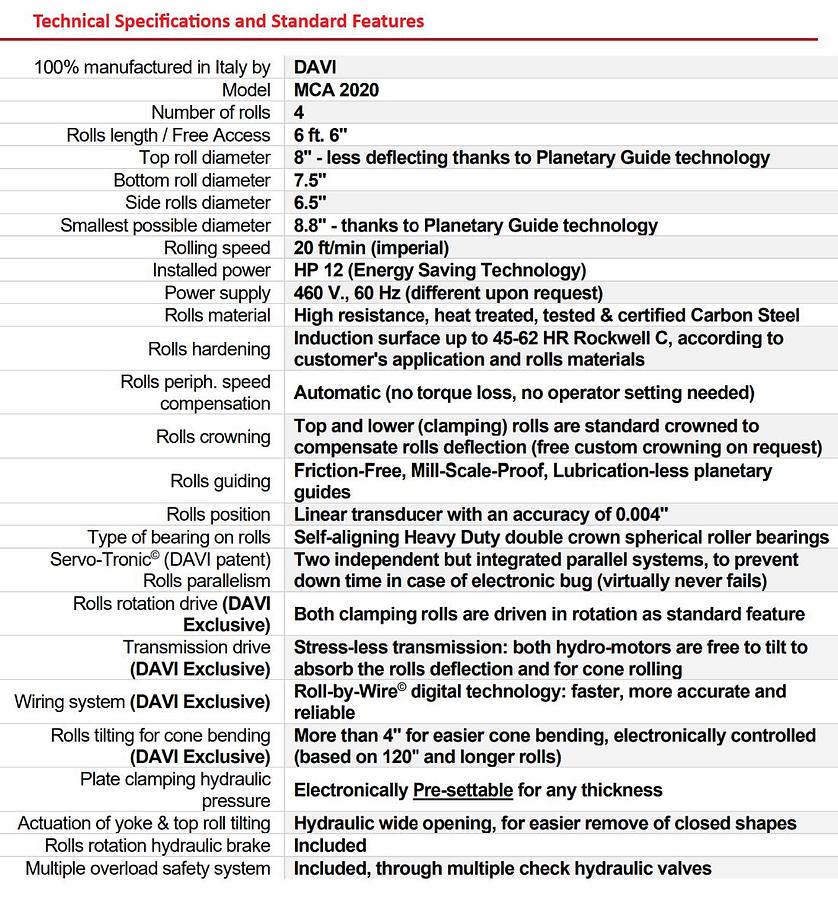

SPECIFICATIONS:

  NUMBER OF ROLLS: 4

ROLLS LENGTH: 78"

MAX. ROLLING LENGTH: 72"

MAX. ROLLING THICKNESS: 7/16"

MAX. PREBEND THICKNESS: 5/16"

INTERNAL DIAMTER: 40"

YEILD: 40,000 PSI

UTS: 65,000 PSI

TOP ROLL DIAMETER: 8"

BOTTOM ROLL DIAMETER: 7.5"

SIDE ROLLS DIAMETER: 6.5"

SMALLEST POSSIBLE DIAMETER: 8.8"

MAX. ROLLING SPEED: 20 FPM

INSTALLED POWER: 12 HP

ROLLS POSITIONING ACCURACY: (=/-) 0.004"

ELECTRICAL" 460 V, 60 Hz, 3 PHASE

APPOX. WEIGHT: 11,000 LBS

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
