Used 2021 Cloos CS-30 Robotic Welding Cell

The CLOOS CS30 Robotic Welding Cell with QIROX QC2 Control is a high-performance automated welding system designed for precision arc and MIG/MAG welding. Engineered for high-volume production, it delivers consistent weld quality, faster cycle times, and reduced operator fatigue. Ideal for fabrication shops and industrial manufacturers, it efficiently handles repetitive welding tasks and supports advanced processes, including laser-hybrid welding applications. A reliable solution for boosting productivity, accuracy, and automation in modern welding operations.

Equipped With

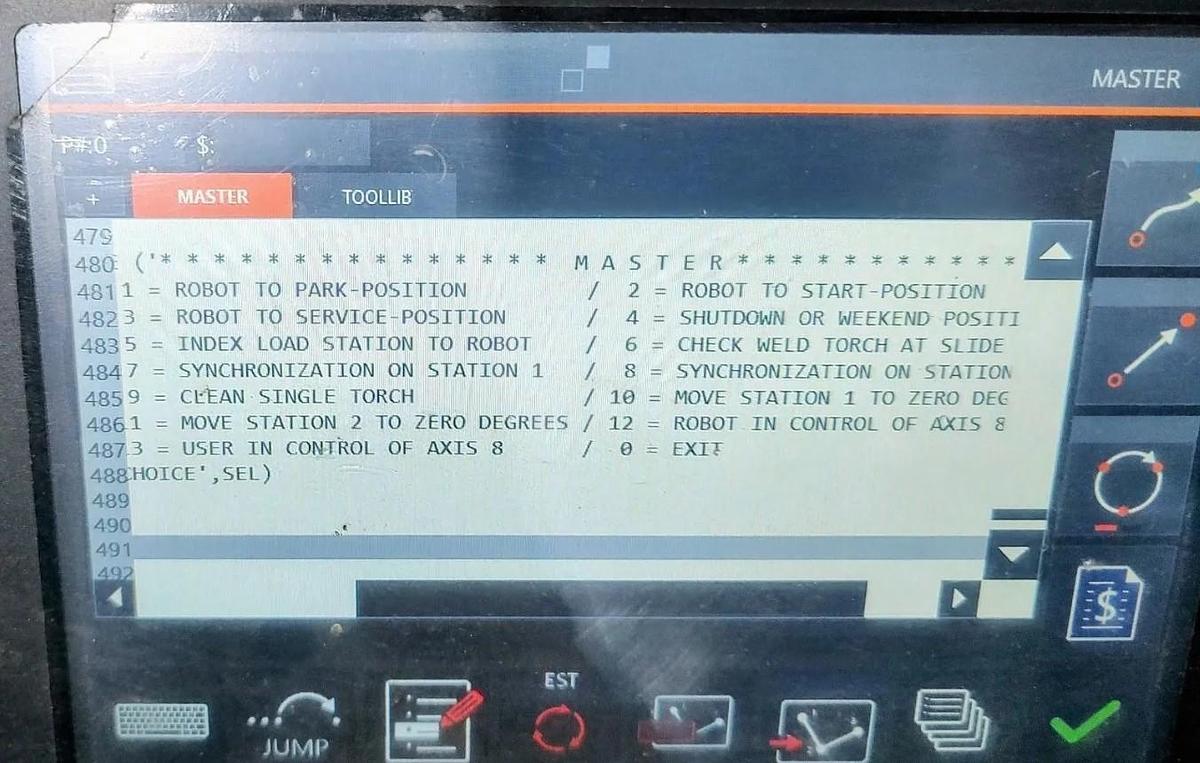

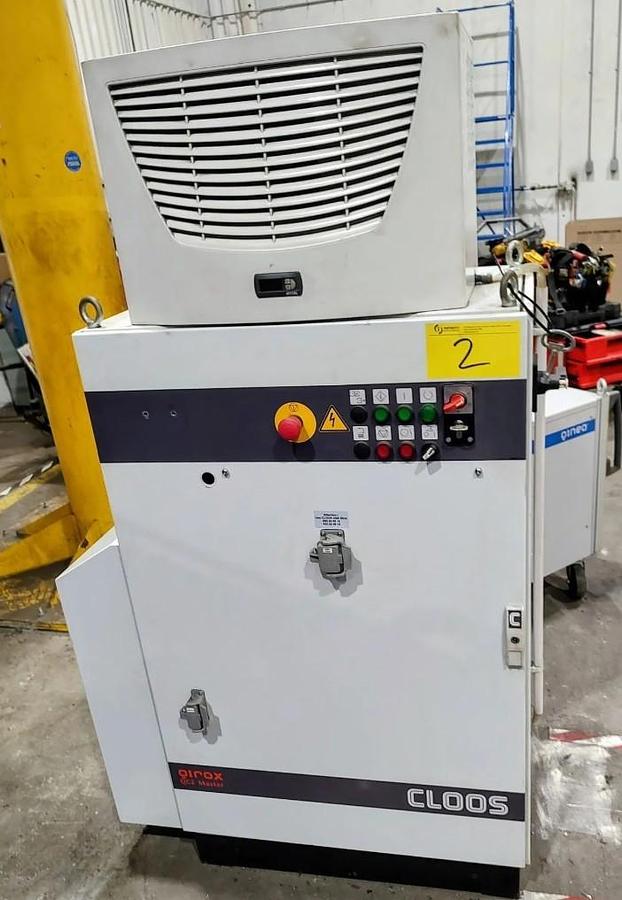

CLOOS QIROX QC2 CONTROL

CLOOS QRC-410 ROBOT

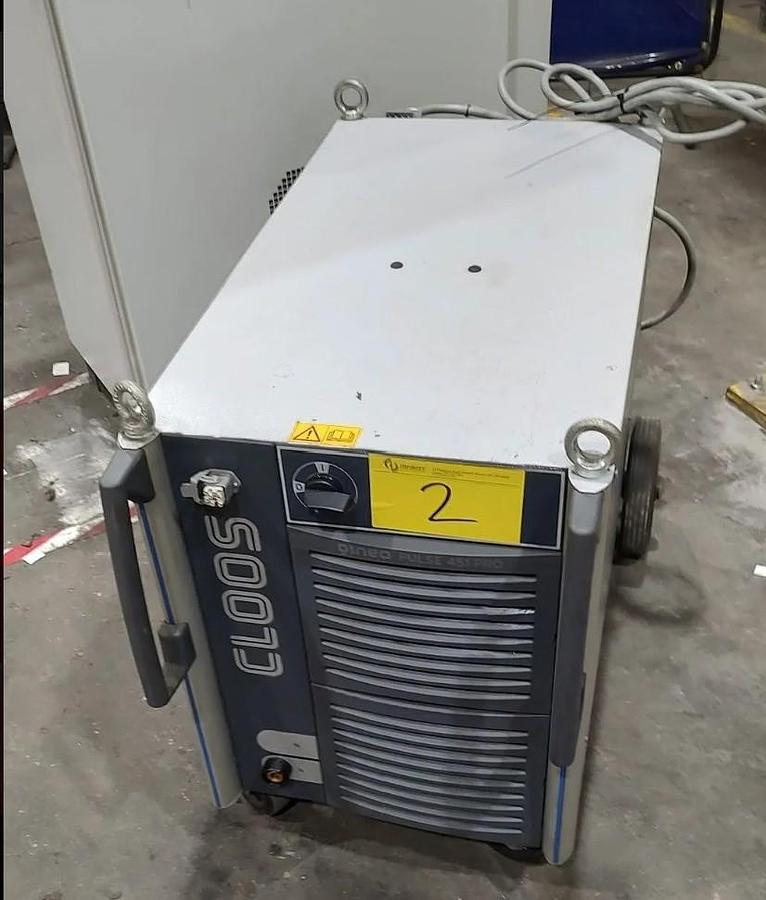

QINEO PULSE 451 PRO MIG/MAG POWER SOURCE

WORKING SPACE: 177"

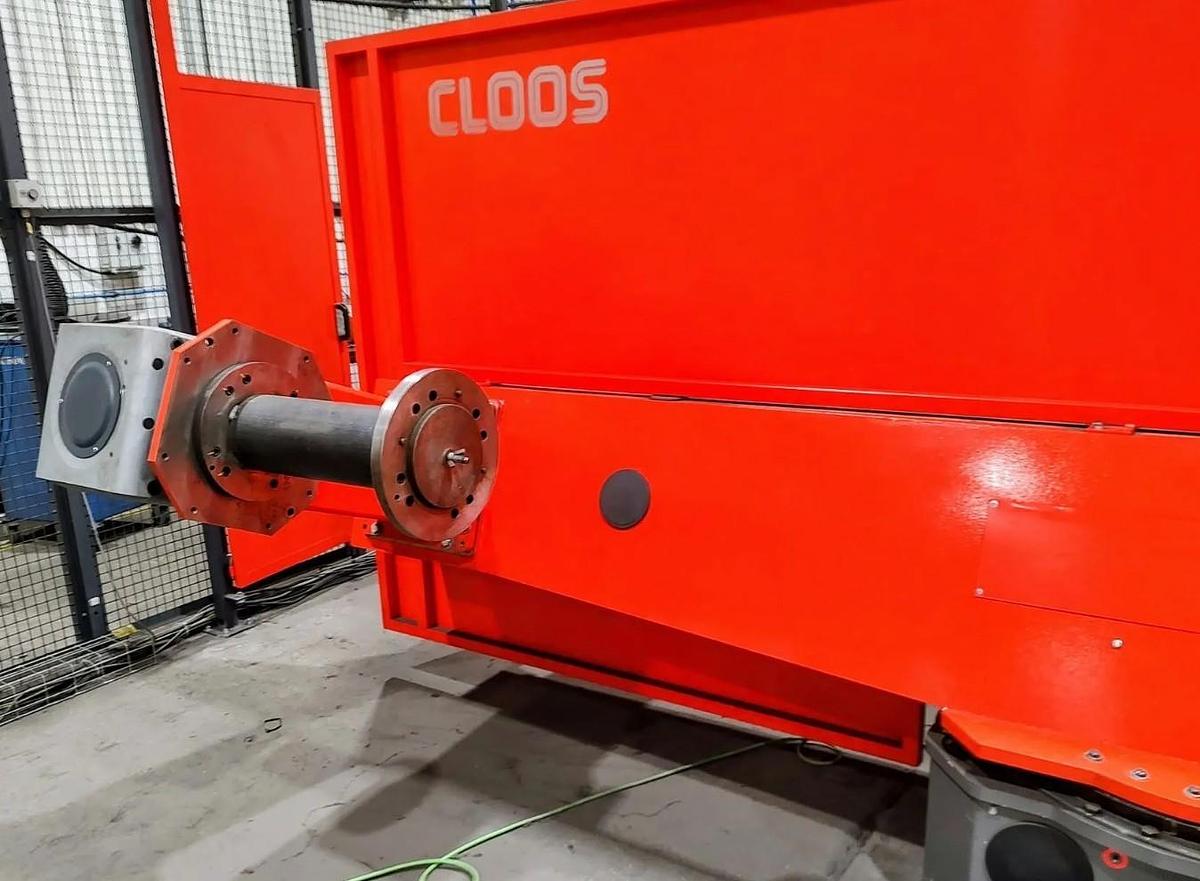

POSITIONER MAX. LOAD PER STATION IN N: 2,248 LBS

POSITIONER MAX. LOAD PER STATION: 2,248 LBS

POSITIONER MAX. TILTING MOMENT: 9.64567e-5"

POSITIONER MASS MOMENT OF INERTIA: 30.72 LB/FT²

POSITIONER MAX. TURNING SPEED: 120°/SEC

POSITIONER FACE PLATE DIAMETER: 15.75" X 15.75"

POSITIONER CLAMPING LENGTH: 137"

POSITIONER FREE TURNING RADIUS: 59"

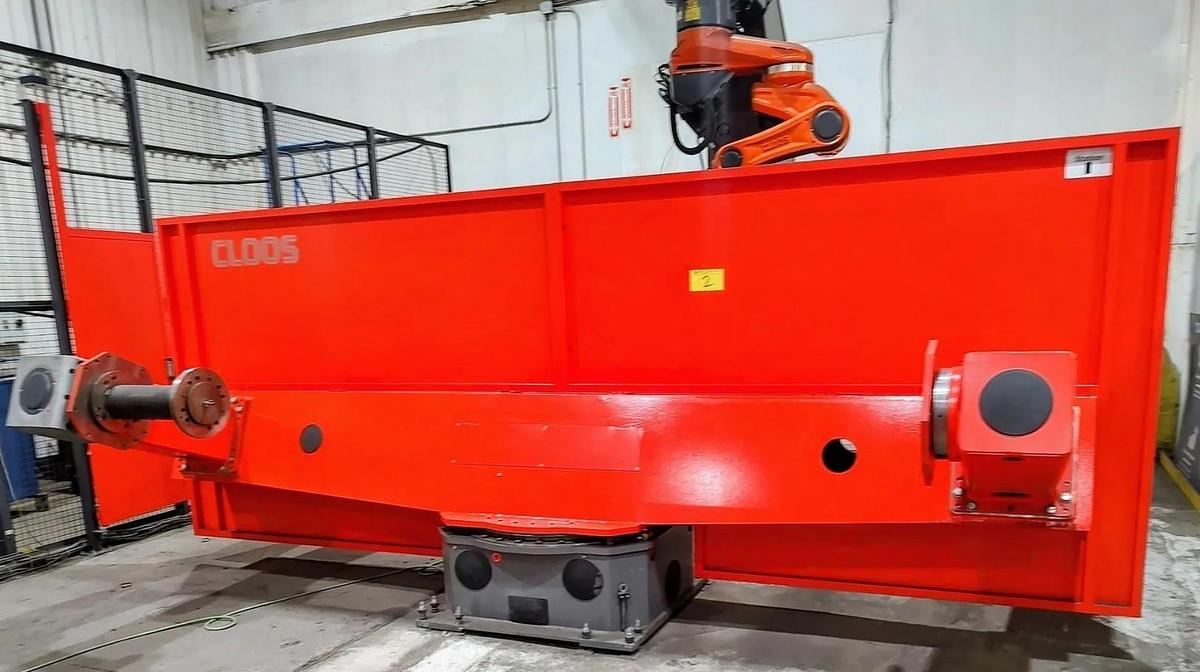

POSITIONER: DH-TC-10KN

POSITIONER TYPE: 2 STATION

ROBOT PAY LOAD: 22 LBS

ROBOT SWIVEL RANGE:

- AXIS-1: +170°/-170°

- AXIS-2: +125°/-90°

- AXIS-3: +80°/-210°

- AXIS-4: +179°/-179°

- AXIS-5: +135°/-135°

- AXIS-6: +270°/-270°

- AXIS-7: +120/-120°

ROBOT SWIVEL SPEED:

- AXIS-1: 184°/SEC

- AXIS-2: 184°/SEC

- AXIS-3: 177°/SEC

- AXIS-4: 497°/SEC

- AXIS-5: 542°/SEC

- AXIS-6: 528°/SEC

- AXIS-7: 90°/SEC

OPERATING RANGE: Ø240.15”

OPERATING RANGE AXIS-5 +90°: Ø182"

OPERATING RANGE HEIGHT: 122.83”

PAY LOAD: 22 LBS

REPEATABILITY: (+/-) 0.0039”

COLLISION RADIUS: 41.34”

FLOOR SPACE: Ø 19.69”

WEIGHT: 772 LBSKG

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
