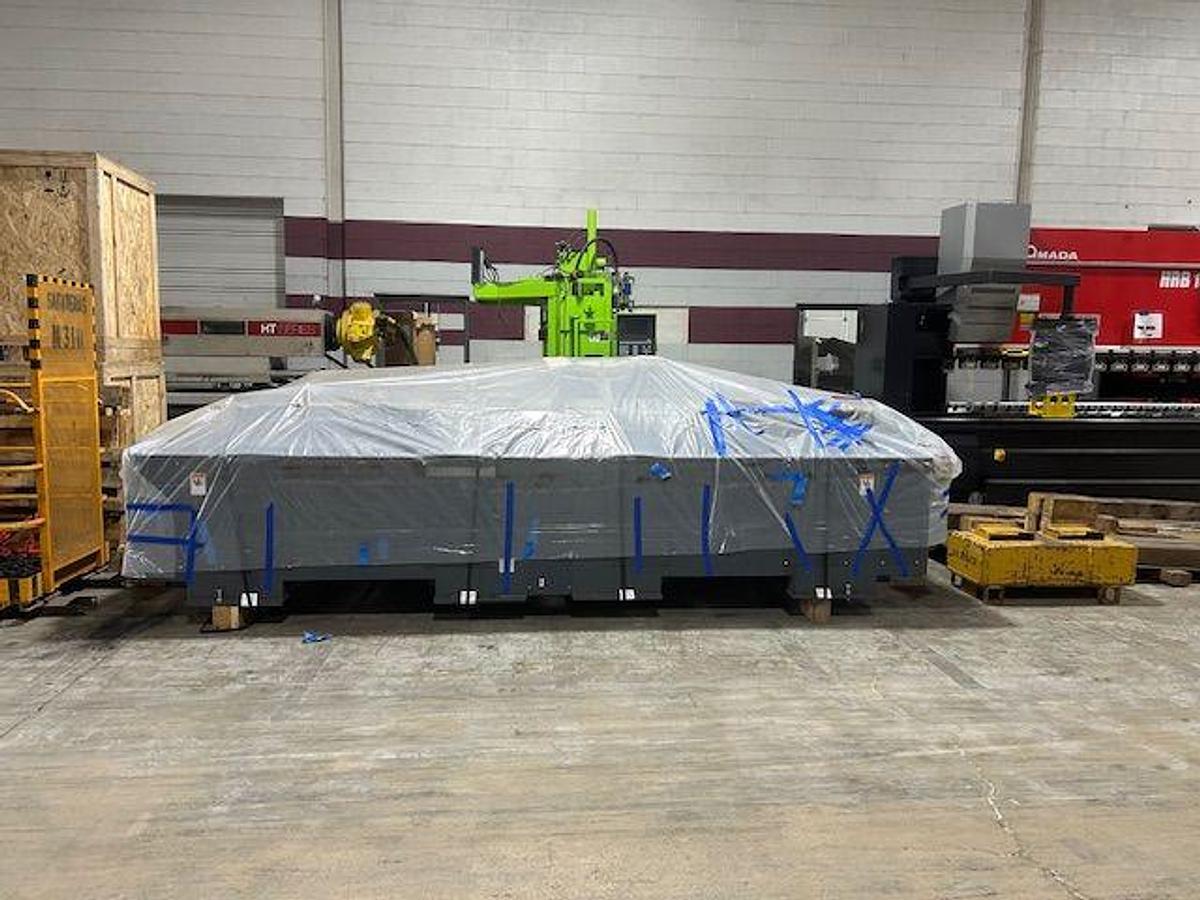

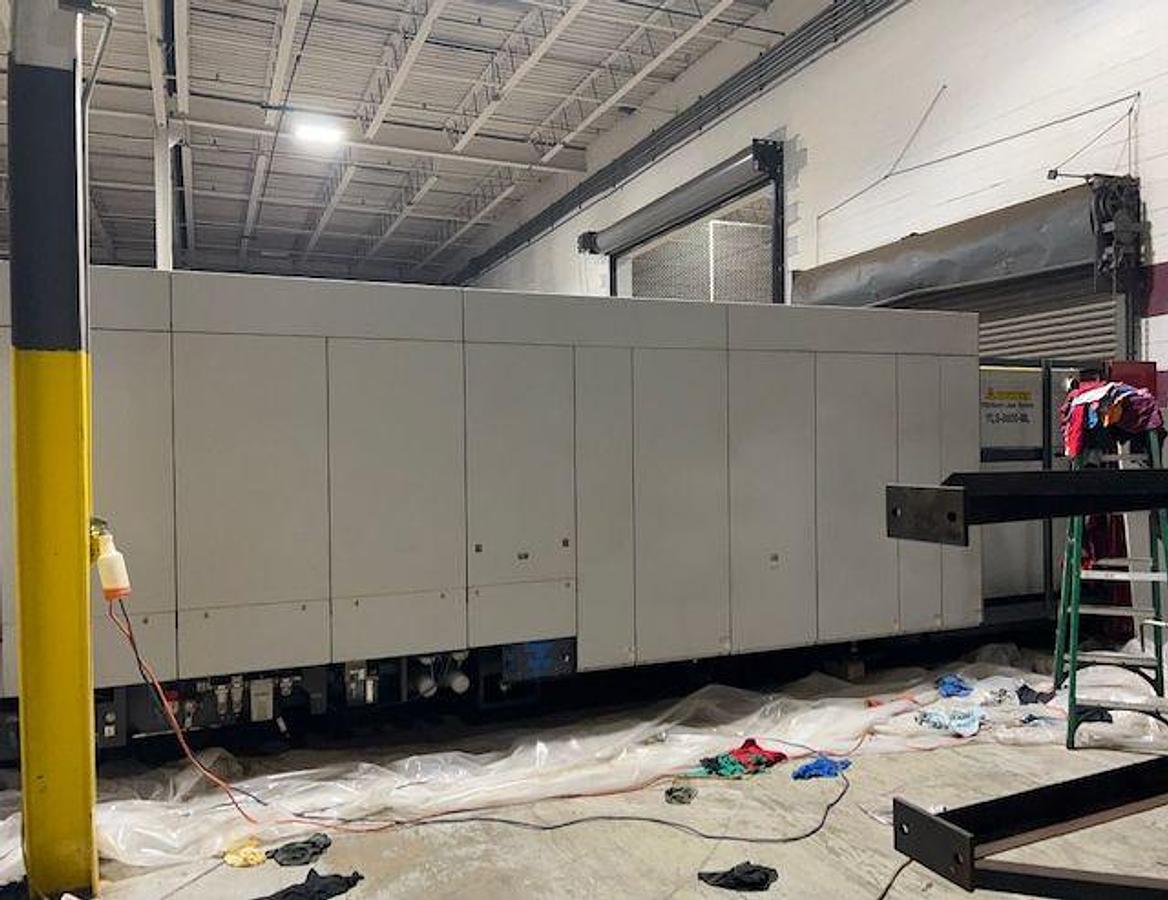

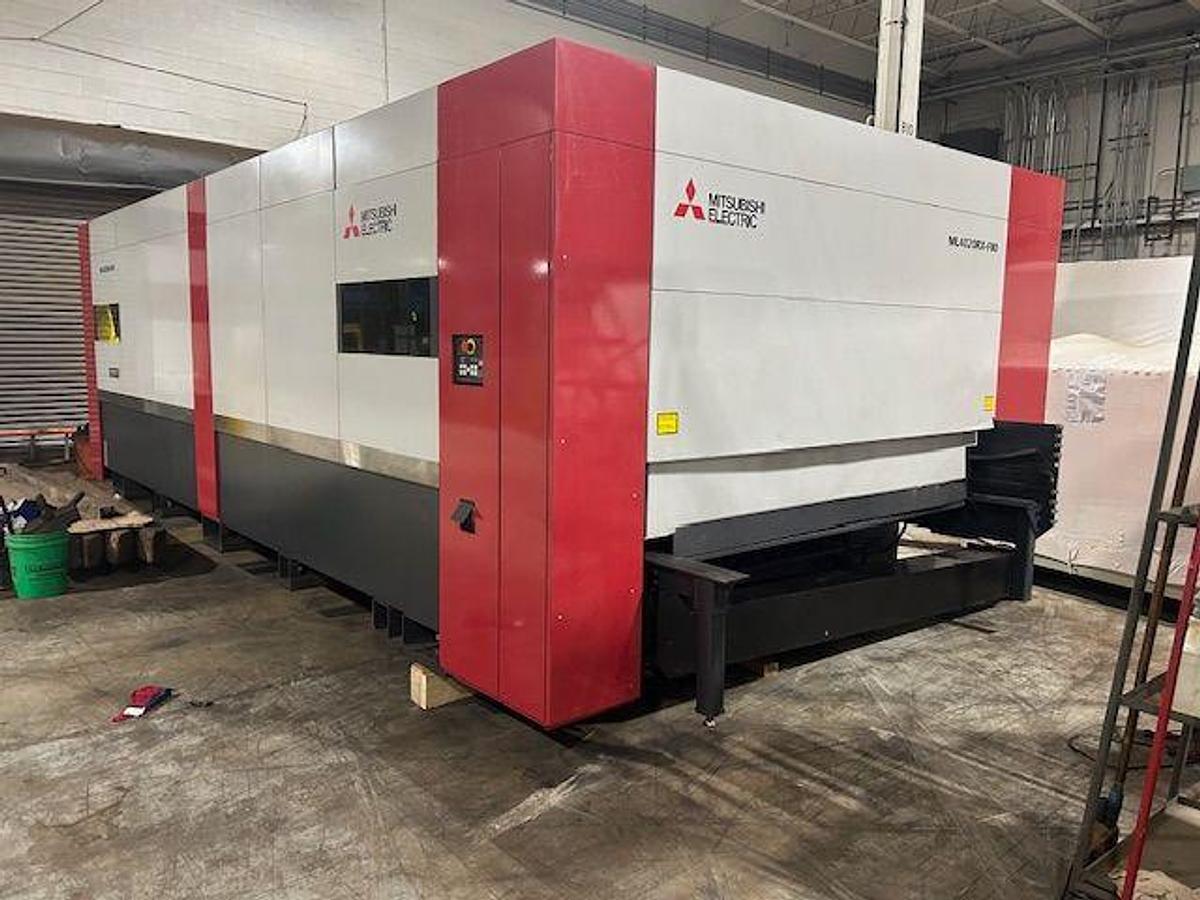

2017 Mitsubishi 4020 RX-FZ 8kw Fiber Laser

The Mitsubishi ML4020 RX-F80 is an 8 kW industrial fiber laser cutting system featuring an 80" x 160" large-format work area, an automated zoom cutting head, and a dual-pallet shuttle exchange table. [1, 2]

System Specifications & Performance

Laser Power: 8,000 Watt (8 kW) fiber resonator.

Working Area (X, Y Axis): 81.10" x 159.44" (supports 4m x 2m sheets).

Maximum Material Thickness:

Mild Steel: 1.10" (25 mm).

Stainless Steel: 0.98".

Aluminum: 0.98".

Brass: 0.47".

Copper: 0.24". [2, 3]

Rapid Traverse Speed: 5,511 IPM (inches per minute) combined axis speed.

Maximum Table Load: 3,637 lbs. [2]

Key Technologies & Features

Zoom Head: Automatically adjusts the laser beam focal properties for fast transitions between thin and thick sheets without manual setup.

Control Unit: Powered by the Mitsubishi M700 series CNC control with a touch-screen interface.

Eco Mode: Lowers standby power consumption by shutting down non-essential system components during pauses.

Pallet Changer: Standard dual-pallet automatic exchange design to reduce dead time and maximize throughput.

IPG YLS Fiber Laser Source

Anti-Spatter Spray system

1000+ Cutting Condition Libraries

Plasma Guard Control

Heilical Rack and Pinion

Comes with:

Assist Gas Filter panel and Gas Blender for 02/N2 Mix

8 Filter Donaldson Dust Collector - pre-owned

Remote 360 for 1 year

3 month warranty
