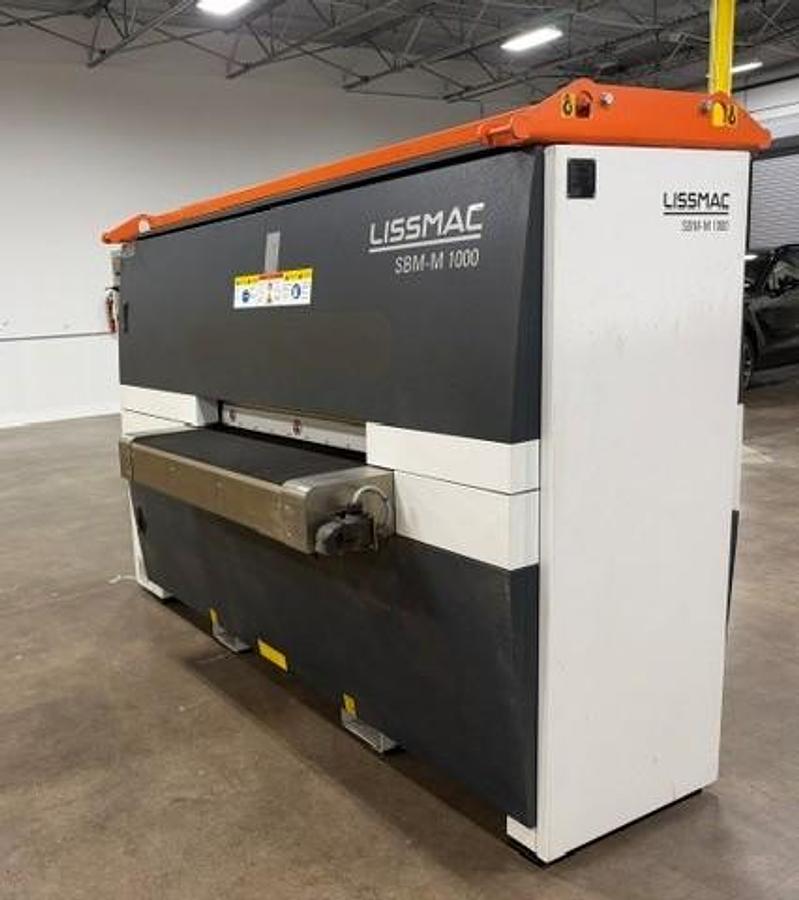

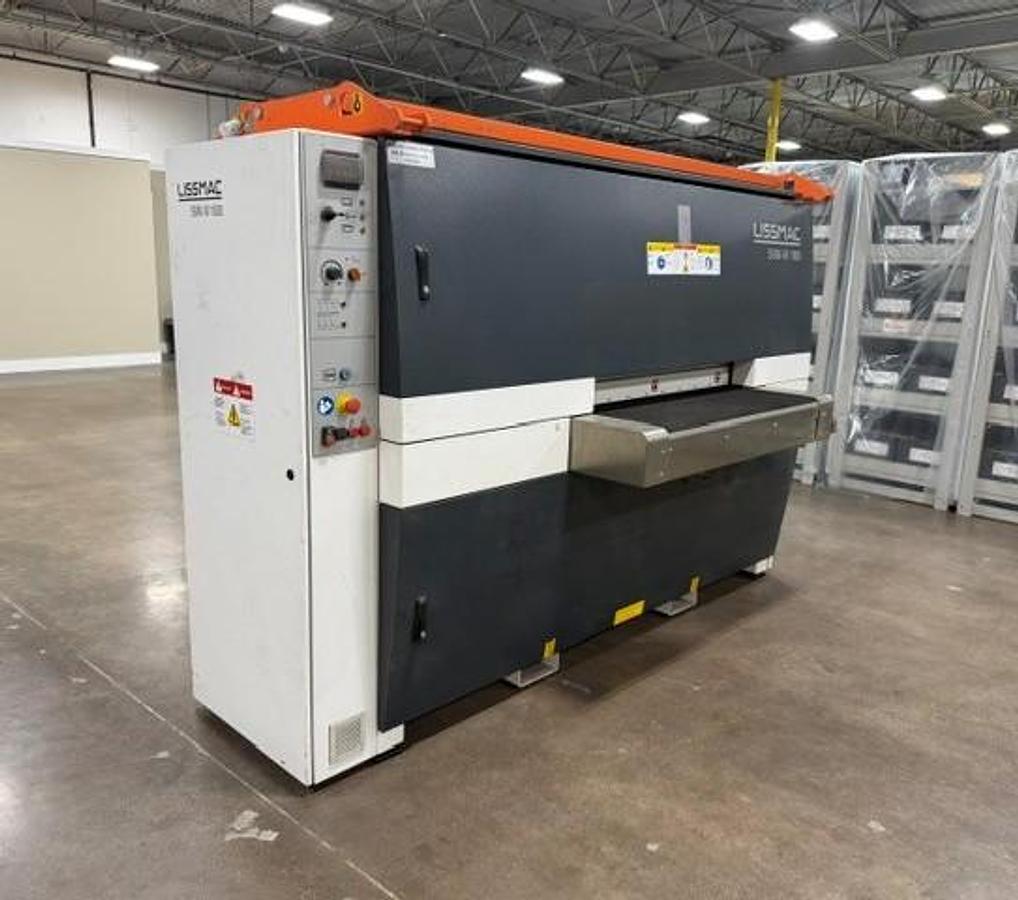

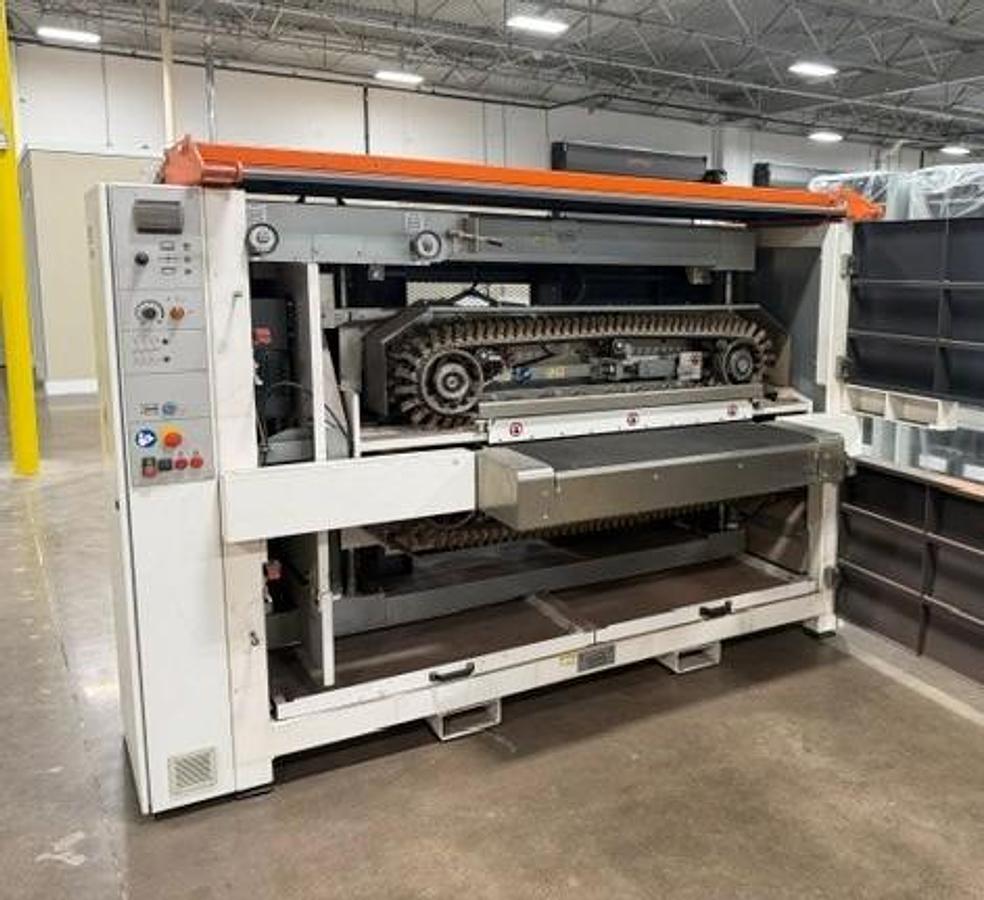

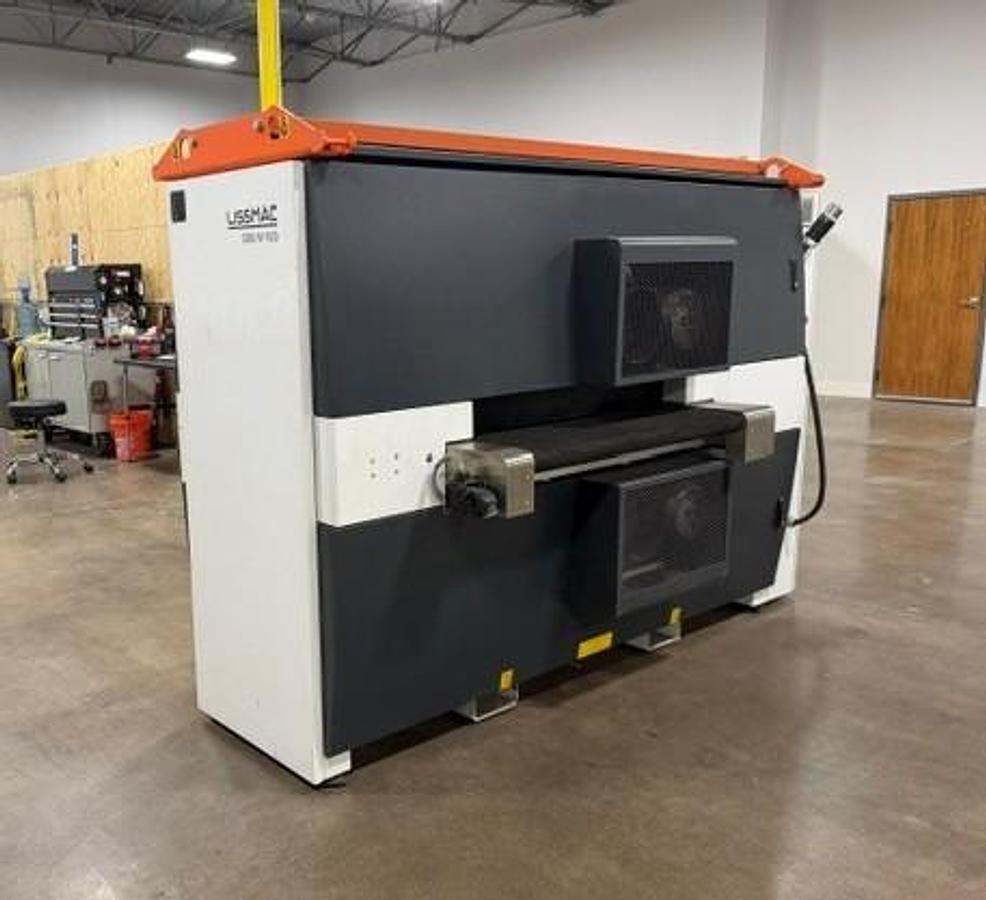

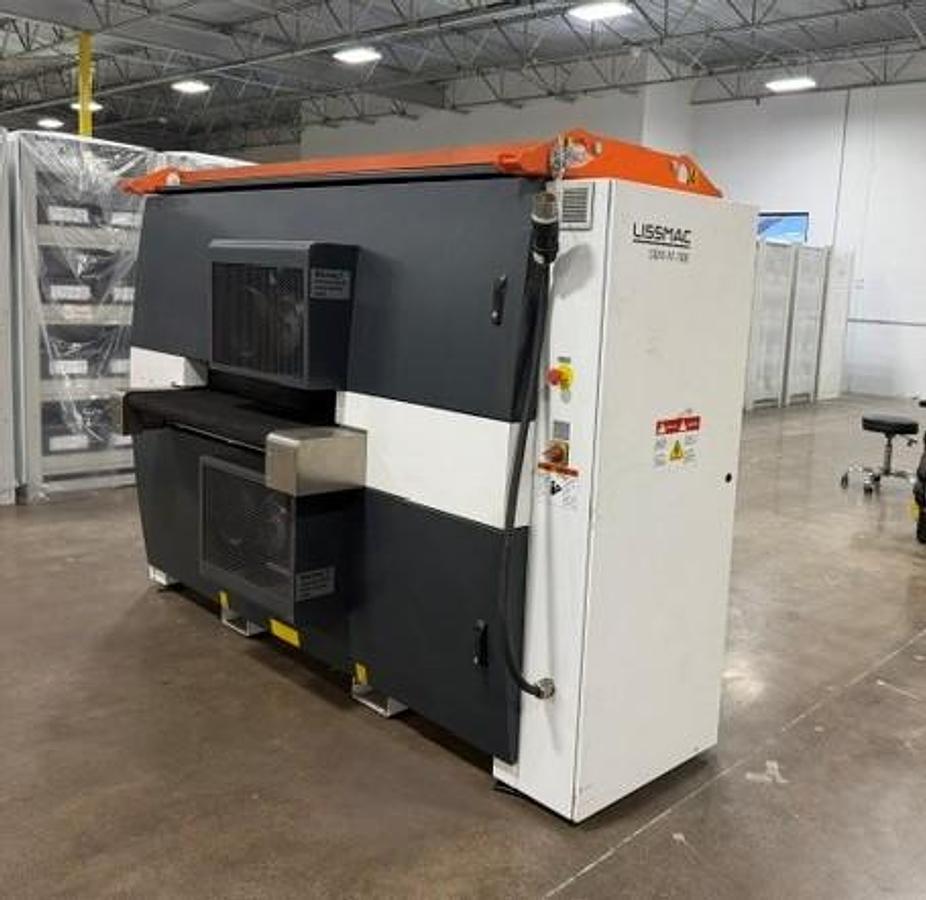

2019 Lissmac SBM M B2 1000 mm wide Used

Great Shape - 2019 Lissmac Laser Oxide Removal Machine.

This machine will remove laser oxide from the outer edge, holes, and slots.

Removing the laser oxide will allow paint to stick better to the edges and not "pop off" or rust through paint.

This Machine is not a Deburring machine. The main function is to remove laser oxide from Oxygen Cutting on a laser.

The Lissmac SBM-M B2 1000 (often listed as SBM-M 1000 B2-60) is an industrial, dual-sided oxide removal machine designed to process laser-cut and oxy-fuel cut steel parts. It is a great alternative to manual grinding with wire wheels on edges.

Key Specifications

• Working Width: Maximum 39.37 inches (1000 mm)
• Material Thickness: 0.04" to 0.79" (1 to 20 mm)
• Minimum Part Size: 2" x 6" (50 x 150 mm)
• Feed Rate: Infinitely variable from 0 to 13 FPM (0–4 m/min)

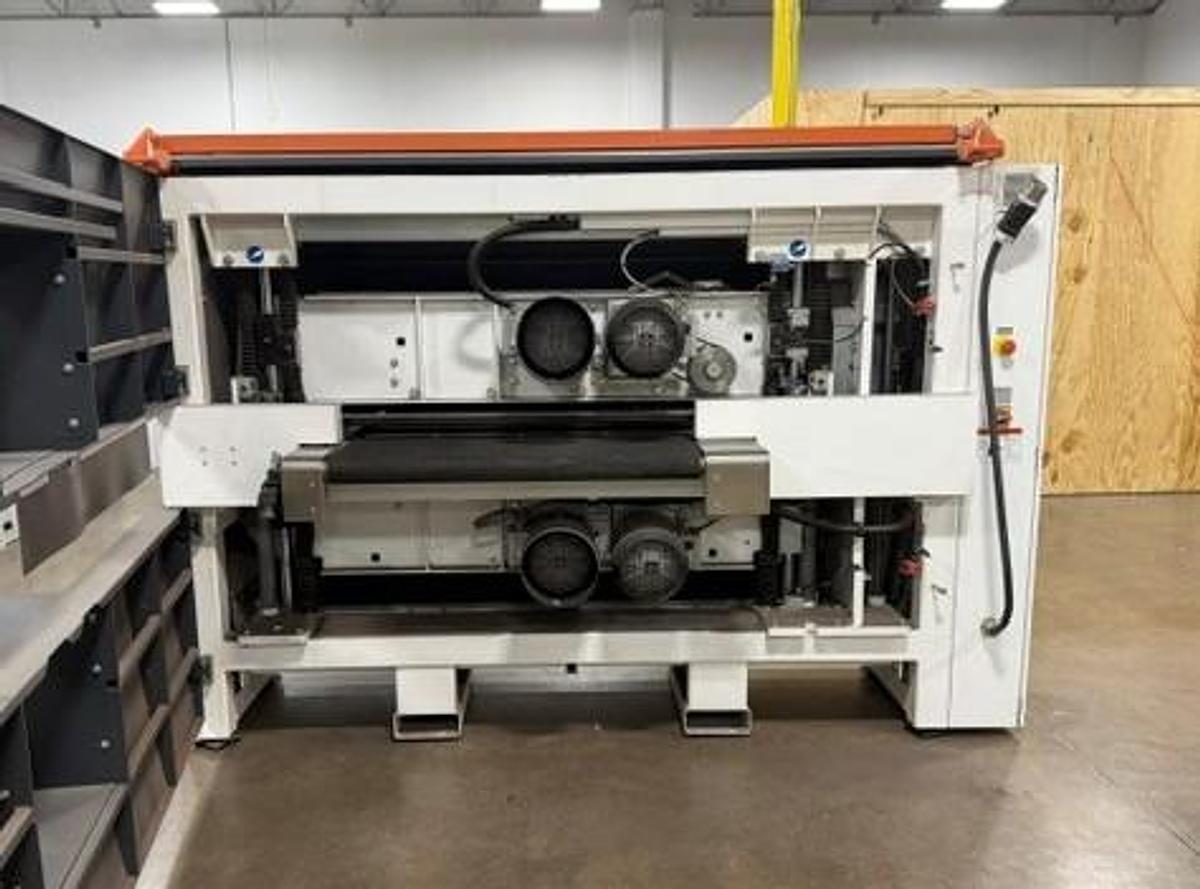

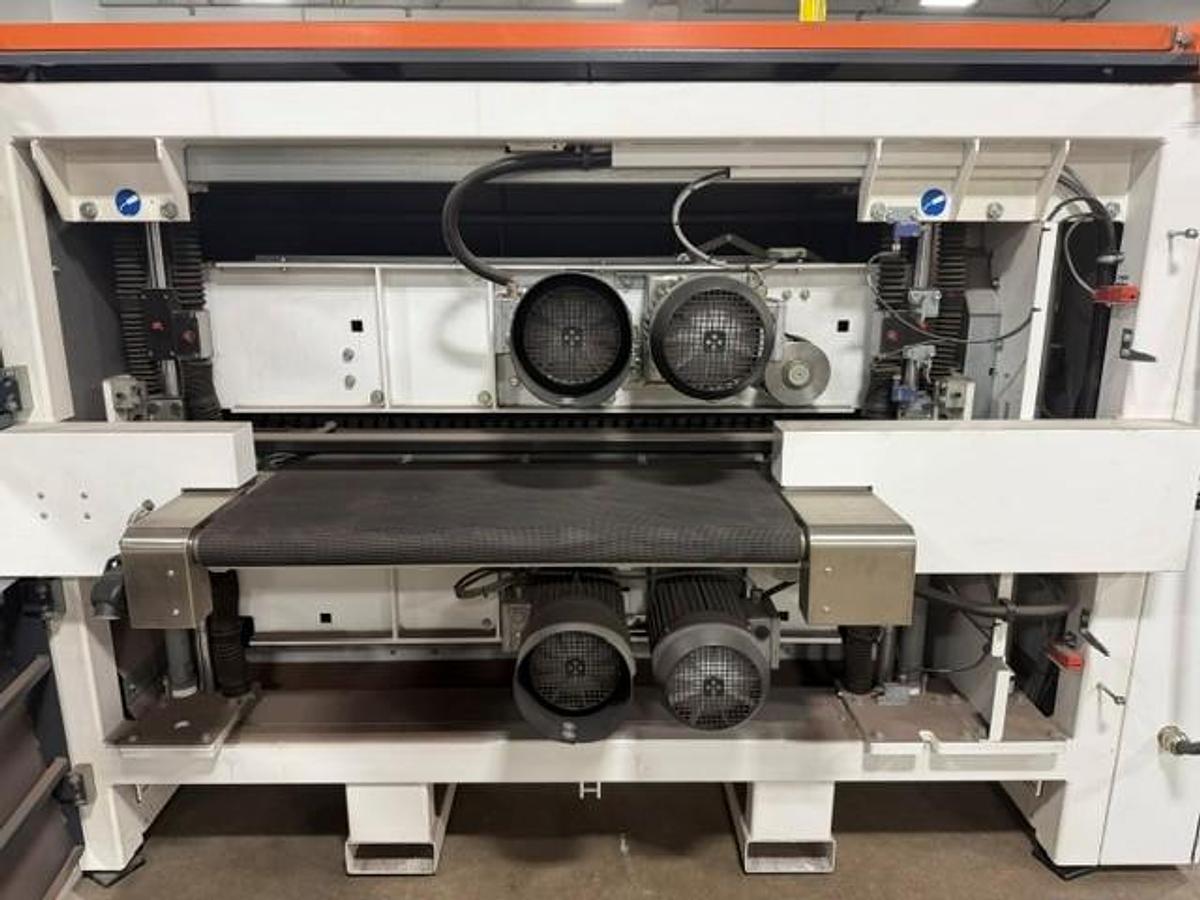

• Tooling Setup: 4 brushing motors (typically 4.8 kW / 6.5 HP each) driving specialized brush belts at 1,400 RPM.

Core Benefits

• Double-Sided Processing: It simultaneously brushes the top and bottom surfaces of the part, cutting labor time in half compared to single-sided alternatives.

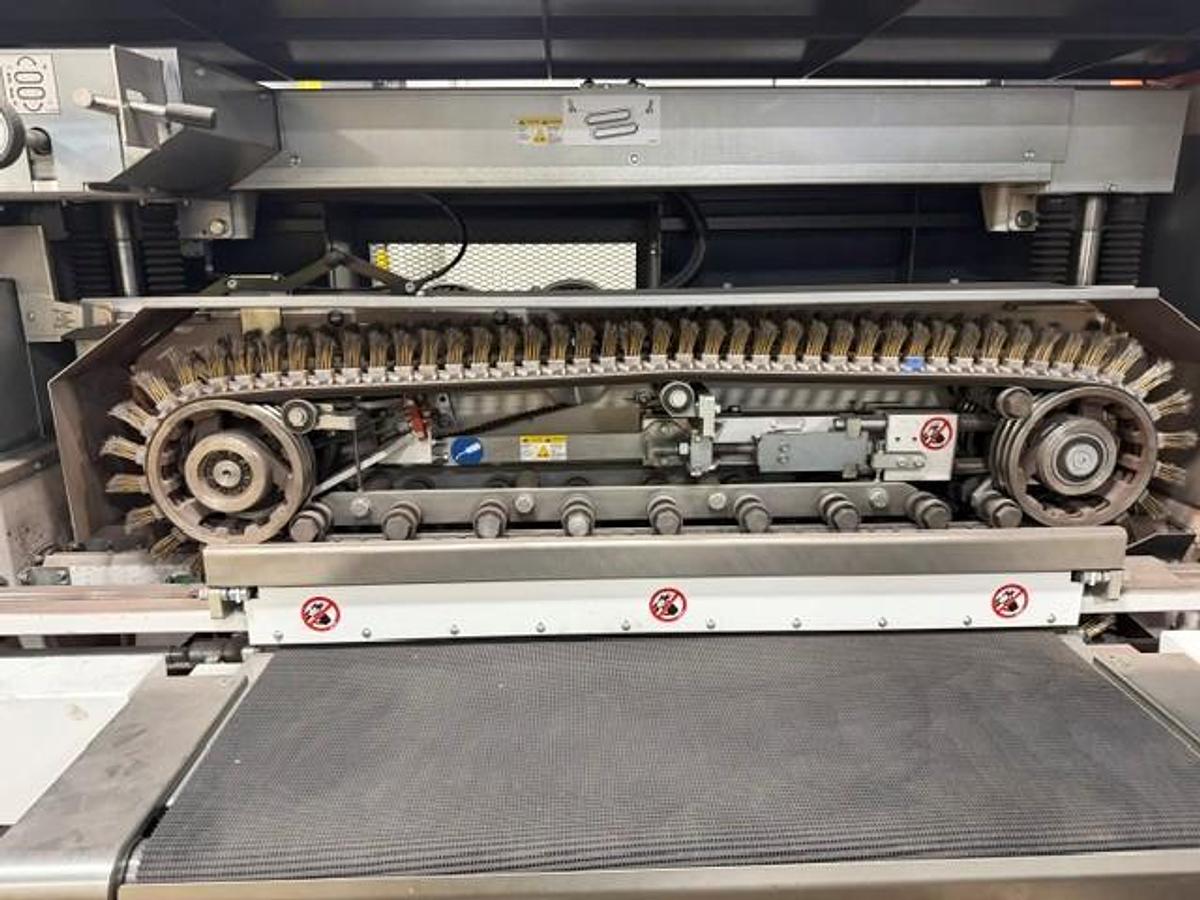

• Oxide Layer Removal: It utilizes technical wire or composite brush belts to scrub away the hard, glassy oxide scale left behind by oxygen-assisted laser cutting, preparing the metal edges perfectly for painting or powder coating.
• Uniform Edge Coverage: Because the brush belts run crosswise to the feed direction, they consistently hit every internal cutout, slot, and external edge evenly.
